Pinpoint Test O: The Heated Seat Is Inoperative - Front Passenger
Seats
Pinpoint Tests
Pinpoint Test O: The Heated Seat is Inoperative - Front Passenger
Refer to Wiring Diagram Set 119, Climate Controlled Seats for schematic and connector information. Diagrams By Number
Normal Operation
The heated seat module is supplied battery voltage on circuit CBX01 (GN/RD), ignition voltage on circuit CBX06 (GY/RD), and ground on circuit GD903 (BK/WH). The HVAC module controls the heated seats by supplying a momentary ground to the heated seat module request circuits when a heated seat button is pressed. If equipped with the navigation, the Front Controls Interface Module (FCIM) sends the request to the HVAC module. The heated seat module supplies voltage to the heater mats on circuit CHS07 (GY/BU). Ground is supplied on circuit GD904 (BK/BU). The cushion and backrest heater mats are connected in series by circuit CHS01 (GY/VT). The heated seat module monitors the temperature sensor located in the cushion heater mat on circuits VHS27 (WH/OG) and RHS05 (YE/VT). Seat temperature is maintained until switched off, the ignition is turned off or a fault is detected by the HVAC or heated seat module. The heated seat module does not report DTCs but will disable the affected heated seat if a fault is detected with the temperature sensor, heater mats or circuits.
The HVAC module reports the following DTCs for the passenger heated seat. These DTCs are for request circuit CHS30 (GY/YE).
- DTC B1032:11 (Right Front Seat Heater: Circuit Short To Ground) - If the passenger seat request circuit from the HVAC module to the heated seat module is shorted to ground, the DTC is set.
- DTC B1032:12 (Right Front Seat Heater: Circuit Short To Battery) - If the passenger seat request circuit from the HVAC module to the heated seat module is shorted to voltage, the DTC is set.
- DTC B1032:13 (Right Front Seat Heater: Circuit Open) - If the passenger seat request circuit from the HVAC module to the heated seat module is open, the DTC is set.
This pinpoint test is intended to diagnose the following:
- Fuse(s)
- Wiring, terminals or connectors
- Backrest or cushion heater mat
- Heated seat module
- HVAC module
- FCIM (if equipped with navigation)
PINPOINT TEST O: THE HEATED SEAT IS INOPERATIVE - FRONT PASSENGER
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
-------------------------------------------------
O1 CHECK HEATED SEAT OPERATION
- Start the engine.
- Verify the driver heated seat is operational.
- Is the driver heated seat operational?
Yes
GO to O2.
No
GO to Symptom Chart to diagnose the heated seats are inoperative. Symptom Related Diagnostic Procedures
-------------------------------------------------
O2 CHECK HEATED SEAT INDICATOR ILLUMINATION
- Verify system indicator illumination.
- Do the passenger heated seat indicators illuminate or flash and then turn off?
Yes
GO to O8.
No
If equipped with the navigation system, GO to O3.
If not equipped with the navigation system, GO to O4.
-------------------------------------------------
O3 RETRIEVE FCIM DTCs
- Enter the following diagnostic mode on the scan tool: Self Test - FCIM.
- Check the FCIM for DTCs.
- Are any DTCs retrieved?
Yes
REFER to the Master DTC Chart in Body Control Systems. Diagnostic Trouble Code (DTC) Chart
No
GO to O4.
-------------------------------------------------
O4 RETRIEVE HVAC MODULE DTCs
- Enter the following diagnostic mode on the scan tool: Self Test - HVAC module.
- Are any HVAC module DTCs retrieved?
Yes
If DTC B1032:12, GO to O20.
If DTC B1032:13, GO to O21.
If DTC B1032:11, GO to O22.
For any other HVAC module DTCs, REFER to the Master DTC Chart in Body Control Systems. Diagnostic Trouble Code (DTC) Chart
No
GO to O5.
-------------------------------------------------
O5 CHECK HVAC FUNCTIONS
- Operate the HVAC.
- Does the HVAC function correctly?
Yes
GO to O6.
No
If the HVAC system does not function correctly, REFER to Heating and Air Conditioning.
-------------------------------------------------
O6 MONITOR FCIM PID PASSENGER HEATED SEAT (CC_SW_P_HSEATS)
- Enter the following diagnostic mode on the scan tool: DataLogger - FCIM - PID: CC_SW_P_HSEATS.
- Monitor the FCIM PID CC_SW_P_HSEATS while pressing the passenger heated seat button.
- Do the PID values agree with the button positions?
Yes
GO to O7.
No
INSTALL a new FCIM. REFER to Accessories and Optional Equipment. TEST the system for normal operation.
-------------------------------------------------
O7 MONITOR HVAC MODULE PID RIGHT SEAT HEATER (ST_HEAT_RT)
- Enter the following diagnostic mode on the scan tool: DataLogger - HVAC module - ST_HEAT_RT.
- NOTE: The PID data will quickly flicker on and off. Watch closely when pressing the switch button.
- Monitor HVAC module PID ST_HEAT_RT while pressing the passenger heated seat button.
- Does the PID value agree with the button position?
Yes
GO to O8.
No
INSTALL a new HVAC module. TEST the system for normal operation.
-------------------------------------------------
O8 CHECK FOR VOLTAGE TO THE HEATED SEAT MODULE
- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of Restraint Systems.
- Disconnect: Passenger Seat Side Air Bag Module C339.
- Disconnect: Heated Seat Module C359A.
- WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
- Connect the battery ground cable. Refer to Battery.
- Measure the voltage between heated seat module C359B-3, circuit CBX01 (GN/RD), harness side and ground.
- Is the voltage greater than 10 volts?
Yes
GO to O9.
No
VERIFY Battery Junction Box (BJB) fuse 69 (30A) is OK. If OK, REPAIR the circuit. If not OK, REFER to the Wiring Diagrams to identify the possible causes of the circuit short. TEST the system for normal operation. Diagrams By Number
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
O9 CHECK RESISTANCE OF THE PASSENGER SEAT HEATER MATS AND HEATER CIRCUITS
- Measure the resistance between heated seat module C359B-6, circuit CHS07 (GY/BU), harness side and ground.
- Is the resistance between 2 and 4 ohms?
Yes
GO to O15.
No
GO to O10.
-------------------------------------------------
O10 CHECK THE PASSENGER SEAT CUSHION HEATER CIRCUIT FOR AN OPEN OR SHORT TO GROUND
- Disconnect: Passenger Seat Cushion Heater Mat C334.

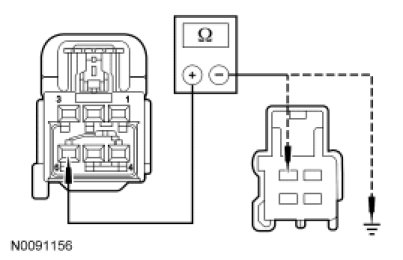

- Measure the resistance between:
- heated seat module C359B-6, circuit CHS07 (GY/BU), harness side and passenger seat cushion heater mat C334-1, circuit CHS07 (GY/BU), harness side.
- heated seat module C359B-6, circuit CHS07 (GY/BU), harness side and ground.
- Is the resistance less than 5 ohms between C359B-6 and C334-1 and greater than 10,000 ohms between C359B-6 and ground?
Yes
GO to O11.
No
REPAIR the circuit. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
O11 CHECK THE CUSHION HEATER MAT FOR AN OPEN
- Measure the resistance between passenger seat cushion heater mat C334 pins 1 and 4, component side.
- Is the resistance between 1.6 and 2.0 ohms?
Yes
GO to O12.
No
INSTALL a new passenger seat cushion heater mat. REFER to Seat Cushion Heater Mat - Front Seat Cushion Heater Mat - Front. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
O12 CHECK FOR AN OPEN BETWEEN THE CUSHION AND BACKREST HEATER MATS
- Disconnect: Passenger Seat Backrest Heater Mat C335.
- Measure the resistance between seat cushion heater mat C334-4, circuit CHS01 (GY/VT), harness side and seat backrest heater mat C335-1, circuit CHS01 (GY/VT), harness side.
- Is the resistance less than 0.5 ohm?
Yes
GO to O13.
No
REPAIR the circuit. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
O13 CHECK THE BACKREST HEATER MAT FOR AN OPEN

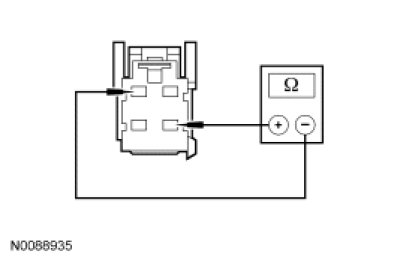

- Measure the resistance between passenger seat backrest heater mat C335 pins 1 and 2, component side.
- Is the resistance between 0.9 and 1.1 ohm?
Yes
GO to O14.
No
INSTALL a new passenger seat backrest heater mat. REFER to Seat Backrest Heater Mat - Front Seat Backrest Heater Mat - Front. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
O14 CHECK THE HEATER MAT GROUND CIRCUIT FOR AN OPEN
- Measure the resistance between passenger seat backrest heater C335-2, circuit GD904 (BK/BU), harness side and ground.
- Is the resistance less than 5 ohms?
Yes
The fault is intermittent. CHECK the electrical connectors for corrosion, poor pin contact or pushed out pins, particularly the pins and terminals of electrical connectors that were disconnected. Do not install any new components at this time. Components should only be installed when directed to do so in the pinpoint test. REPAIR any intermittent wiring, terminal or connector concerns found. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
No
REPAIR the circuit. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
O15 CHECK THE TEMPERATURE SENSOR AND CIRCUITS FOR AN OPEN
- Connect: Passenger Seat Cushion Heater Mat C334.
- Disconnect: Heated Seat Module C359A.
- Measure the resistance between heated seat module C359A-9, circuit VHS27 (WH/OG), and C359A-12, circuit RHS05 (YE-VT), harness side.
- Is the resistance between 300 and 300K ohms?
Yes
GO to O20.
No
GO to O16.
-------------------------------------------------
O16 CHECK HEATED SEAT TEMPERATURE SENSOR CIRCUIT FOR A SHORT TO VOLTAGE
- Disconnect: Passenger Seat Cushion Heater Mat C334.
- Ignition ON.

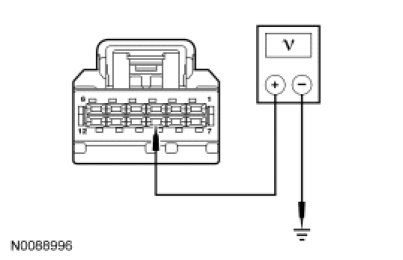

- Measure the voltage between heated seat module C359A-9, circuit VHS27 (VT), harness side and ground.
- Is any voltage present?
Yes
REPAIR the circuit. GO to O19 to check the temperature sensor for damage. If OK, TEST the system for normal operation. If not OK, INSTALL a new driver seat cushion heater mat. REFER to Seat Cushion Heater Mat - Front Seat Cushion Heater Mat - Front. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
No
GO to O17.
-------------------------------------------------
O17 CHECK TEMPERATURE SENSOR CIRCUIT FOR AN OPEN AND SHORT TO GROUND
- Ignition OFF.
- Measure the resistance between:
- heated seat module C359A-9, circuit VHS27 (WH/OG), harness side and seat cushion heater mat C334-2, circuit VHS27 (WH/OG), harness side.
- heated seat module C359A-9, circuit VHS27 (WH/OG), harness side and ground.
- Is the resistance less than 5 ohms between C359A-9 and C334-2, and greater than 10,000 ohms between C359A-9 and ground?
Yes
GO to O18.
No
REPAIR the circuit. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
O18 CHECK TEMPERATURE SENSOR RETURN CIRCUIT FOR AN OPEN
- Measure the resistance between heated seat module C359A-12, circuit RHS05 (YE/VT), harness side and passenger seat cushion heater mat C334-3, circuit RHS05 (YE/VT), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to O19.
No
REPAIR the circuit. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
O19 CHECK HEATED SEAT TEMPERATURE SENSOR FOR AN OPEN
- Measure the resistance between heated seat cushion C334 pins 2 and 3, component side.
- Is the resistance between 300 ohms and 300K ohms?
Yes
GO to O20.
No
INSTALL a new seat cushion heater mat. REFER to Seat Cushion Heater Mat - Front Seat Cushion Heater Mat - Front. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
O20 CHECK THE HEATED SEAT MODULE SWITCH REQUEST CIRCUIT FOR A SHORT TO VOLTAGE
- Disconnect: HVAC Module C2109A or C228B (vehicle with navigation).
- Ignition ON.
- Measure the voltage between heated seat module C359A-8, circuit CHS30 (GY/YE), harness side and ground.
- Is any voltage present?
Yes
REPAIR the circuit. CLEAR the DTCs. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
No
GO to O21.
-------------------------------------------------
O21 CHECK THE HEATED SEAT MODULE SWITCH REQUEST CIRCUIT FOR AN OPEN
- Ignition OFF.
- If equipped with navigation, measure the resistance between heated seat module C359A-8, circuit CHS30 (GY/YE), harness side and HVAC module C228A-4, circuit CHS30 (GY/YE), harness side.
- If without navigation, measure the resistance between heated seat module C359A-8, circuit CHS30 (GY/YE), harness side and HVAC module C2109A-17, circuit CHS30 (GY/YE), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to O22.
No
REPAIR the circuit. CLEAR the DTCs. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
O22 CHECK THE HEATED SEAT MODULE SWITCH REQUEST CIRCUIT FOR A SHORT TO GROUND
- Measure the resistance between heated seat module C359A-8, circuit CHS30 (GY/YE), harness side and ground.
- Is the resistance greater than 10,000 ohms?
Yes
GO to O23.
No
REPAIR the circuit. CLEAR the DTCs. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
O23 CHECK THE HVAC MODULE OUTPUT
- Connect: HVAC Module C2109A or C228B (vehicle with navigation).
- Connect: Heated Seat Module C359A and C359B.
- Ignition ON.
- NOTE: The following measurement must be taken by back-probing heated seat module C359A.
- NOTE: Voltage on circuit CHS30 (GY/YE) should drop momentarily when the passenger heated seat control button is pressed.
- Measure the voltage between heated seat module C359A-8, circuit CHS30 (GY/YE), harness side and ground by back-probing heated seat module connector. Press the passenger heated seat button on the HVAC module and note the voltage.
- Is the voltage greater than 10 volts before pressing the passenger heated seat control button, then momentarily drops when the heated seat control button is pressed?
Yes
INSTALL a new heated seat module. REFER to Heated Seat Module - Front Heated Seat Module - Front. TEST the system for normal operation.
DISCONNECT the battery ground cable. CONNECT passenger seat side air bag module C339. REPOWER the SRS. REFER to Restraint Systems.
No
If the voltage is greater than 10 volts but does not drop when the passenger heated seat button is pressed, INSTALL a new HVAC module. TEST the system for normal operation.
If the voltage is less than 10 volts, INSTALL a new heated seat module. REFER to Heated Seat Module - Front Heated Seat Module - Front. TEST the system for normal operation.
DISCONNECT the battery ground cable.
CONNECT passenger seat side air bag module C339.
REPOWER the SRS. REFER to Restraint Systems.
-------------------------------------------------
