Pinpoint Test S: The Heated Seat Is Inoperative - Right Rear
Seats
Pinpoint Tests
Pinpoint Test S: The Heated Seat is Inoperative - Right Rear
Refer to Wiring Diagram Set 119, Climate Controlled Seats for schematic and connector information. Diagrams By Number
Normal Operation
Battery voltage is supplied to the heated seat module on circuit SBP40 (VT/RD) and ground on circuit GD134 (BK/VT). Ground is supplied to the RH heated seat switch on circuit GD139 (BK/YE). The heated seat switch supplies a momentary ground signal to the heated seat module on high heat request circuit CHS50 (BU/GY) or low heat request circuit CHS51 (YE/GY) when pressed on and off. The heated seat module supplies voltage to the cushion heater mat on circuit CHS43 (GY/BU) to heat the seat. The heated seat module monitors a temperature sensor in the cushion heater mat on circuit VHS45 (GY/BN) to regulate the seat temperature. The cushion and backrest heater mats are connected in series by circuit CHS44 (GN/VT) and ground is supplied to the backrest heater mat on circuit GD139 (BK/YE). The heated seat module is designed to remain on and maintain seat temperature until switched off or ignition is OFF.
A new heated seat module must be configured after installation for correct operation. To configure, press the low heat mode button on either rear heated seat switch. Module configuration will occur automatically after the low heat mode button is pressed. Until the module is correctly configured, the heated seats will operate incorrectly when selecting the high heat mode by following a sequence of high, low and off with each button press. The system will operate correctly after the heated seat module receives a low heat request on either of the low heat request circuits and rear heated seat module configuration is activated.
This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- Heater mat
- Heated seat switch
- Heated seat module
PINPOINT TEST S: THE HEATED SEAT IS INOPERATIVE - RIGHT REAR
-------------------------------------------------
S1 CHECK THE HEATED SEAT OPERATION
- Ignition ON.
- Operate the right rear heated seat switch.
- Does the seat operate in either setting?
Yes
If only the low setting operates, GO to S15.
If only the high setting operates, GO to S16.
No
GO to S2.
-------------------------------------------------
S2 CHECK THE HEATED SEAT SWITCH INPUT
- Ignition OFF.
- For electrical connector access, release and lower the rear 60 percent seat backrest. Refer to the appropriate steps in Heated Seat Module - Rear Heated Seat Module - Rear.
- Disconnect: Rear Heated Seat Module C3162A.
- Measure the resistance between rear heated seat module C3162A-8, circuit CHS50 (BU/GY), harness side and ground while pressing the heated seat switch to high.
- Is the resistance less than 30 ohms when the switch is pressed and greater than 10,000 ohms when not pressed?
Yes
GO to S4.
No
GO to S3.
-------------------------------------------------
S3 CHECK THE HEATED SEAT SWITCH GROUND CIRCUIT FOR AN OPEN
- Disconnect: Right Rear Heated Seat Switch C831.

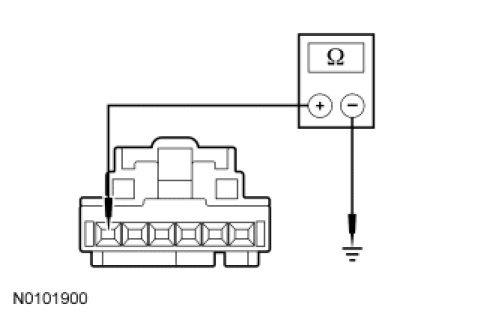

- Measure the resistance between right rear heated seat switch C831-6, circuit GD139 (BK/YE), harness side and ground.
- Is the resistance less than 5 ohms?
Yes
GO to S17.
No
REPAIR the circuit. TEST the system for normal operation.
-------------------------------------------------
S4 CHECK VOLTAGE TO THE RIGHT REAR HEATED SEAT MODULE FEED CIRCUIT
- Disconnect: Rear Heated Seat Module C3162B.
- Measure the voltage between rear heated seat module C3162B-3, circuit SBP40 (VT/RD), harness side and ground.
- Is the voltage greater than 10 volts?
Yes
GO to S5.
No
REPAIR the circuit. TEST the system for normal operation.
-------------------------------------------------
S5 CHECK THE HEATER CIRCUITS AND HEATER MATS FOR AN OPEN
- Measure the resistance between rear heated seat module C3162B-6, circuit CHS43 (GY/BU), harness side and ground.
- Is the resistance between 2.5 and 4.5 ohms?
Yes
GO to S11.
No
GO to S6.
-------------------------------------------------
S6 CHECK THE HEATER MAT GROUND CIRCUIT FOR AN OPEN
- For electrical connector access, release and lower the rear 40 percent seat backrest. Refer to the appropriate steps in Seat Backrest Latch - Rear, Crew Cab Seat Backrest Latch - Rear, Crew Cab.
- Disconnect: Right Rear Backrest Heater Mat C3170.
- Measure the resistance between right rear backrest heater mat C3170-1, circuit GD139 (BK/YE), harness side and ground.
- Is the resistance less than 5 ohms?
Yes
GO to S7.
No
REPAIR the circuit. TEST the system for normal operation.
-------------------------------------------------
S7 CHECK THE HEATER CIRCUIT FOR AN OPEN OR SHORT TO GROUND
- Disconnect: Right Rear Cushion Heater Mat C3169.

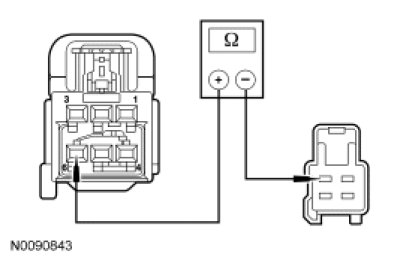

- Measure the resistance between:
- rear heated seat module C3162B-6, circuit CHS43 (GY/BU), harness side and right rear cushion heater mat C3169-1, circuit CHS43 (GY/BU), harness side.
- rear heated seat module C3162B-6, circuit CHS43 (GY/BU), harness side and ground.
- Is the resistance less than 5 ohms between C3162B-6 and C3169-1, and greater than 10,000 ohms between C3162B-6 and ground?
Yes
GO to S8.
No
REPAIR the circuit. TEST the system for normal operation.
-------------------------------------------------
S8 CHECK THE CUSHION HEATER MAT FOR AN OPEN
- Measure the resistance between right rear cushion heater mat C3169 pins 1 and 4, component side.
- Is the resistance between 1.5 and 2.5 ohms?
Yes
GO to S9.
No
INSTALL a new cushion heater mat. REFER to Seat Cushion Heater Mat - Rear Seat Cushion Heater Mat - Rear. TEST the system for normal operation.
-------------------------------------------------
S9 CHECK FOR AN OPEN OR A SHORT TO GROUND BETWEEN THE HEATER MATS
- Measure the resistance between:
- right rear cushion heater mat C3169-4, circuit CHS44 (GN/VT), harness side and right rear backrest heater mat C3170-2, circuit CHS44 (GN/VT), harness side.
- right rear seat cushion heater mat C3169-4, circuit CHS44 (GN/VT), harness side and ground.
- Is the resistance less than 5 ohms between C3169-4 and C3170-2, and greater than 10,000 ohms between C3169-4 and ground?
Yes
GO to S10.
No
REPAIR the circuit. TEST the system for normal operation.
-------------------------------------------------
S10 CHECK THE BACKREST HEATER MAT FOR AN OPEN
- Measure the resistance between right rear backrest heater mat C3170 pins 1 and 2, component side.
- Is the resistance between 1 and 2 ohms?
Yes
The fault is intermittent. CHECK the electrical connectors for corrosion, poor pin contact or pushed out pins, particularly the pins and terminals of electrical connectors that were disconnected. Do not install any new components at this time. Components should only be installed when directed to do so in the pinpoint test. REPAIR any intermittent wiring, terminal or connector concerns found. TEST the system for normal operation.
No
INSTALL a new rear seat backrest heater mat. REFER to Seat Backrest Heater Mat - Rear Seat Backrest Heater Mat - Rear. TEST the system for normal operation.
-------------------------------------------------
S11 CHECK THE TEMPERATURE SENSOR CIRCUIT FOR A SHORT TO VOLTAGE
- Ignition ON.
- Measure the voltage between heated seat module C3162A-9, circuit VHS45 (GY/BN), harness side and ground.
- Is any voltage present?
Yes
REPAIR the circuit. GO to S14 to check the temperature sensor for damage. If the temperature sensor is OK, TEST the system for normal operation.
No
GO to S12.
-------------------------------------------------
S12 CHECK THE TEMPERATURE SENSOR CIRCUIT FOR A SHORT TO GROUND
- Ignition OFF.
- Measure the resistance between heated seat module C3162A-9, circuit VHS45 (GY/BN), harness side and ground.
- Is the resistance greater than 10,000 ohms?
Yes
GO to S13.
No
REPAIR the circuit. TEST the system for normal operation.
-------------------------------------------------
S13 CHECK RIGHT REAR HEATED SEAT TEMPERATURE SENSOR CIRCUITS FOR AN OPEN OR SHORT TO GROUND
- Connect: Right Rear Cushion Heater Mat C3169 (if previously disconnected).
- Measure the resistance between:
- rear heated seat module C3162A-9, circuit VHS45 (GY/BN), harness side and C3162A-12, circuit RHS41 (GN/BN), harness side.
- rear heated seat module C3162A-9, circuit VHS45 (GY/BN), harness side and ground.
- Is the resistance between 300 and 300K ohms between C3162A-9 and C3162A-12 and greater than 10,000 ohms between C3162A-9 and ground?
Yes
INSTALL a new heated seat module. REFER to Heated Seat Module - Rear Heated Seat Module - Rear. TEST the system for normal operation.
No
GO to S14.
-------------------------------------------------
S14 CHECK THE TEMPERATURE SENSOR FOR AN OPEN
- For electrical connector access, release and lower the rear 40 percent seat backrest. Refer to the appropriate steps in Seat Backrest Latch - Rear, Crew Cab Seat Backrest Latch - Rear, Crew Cab.
- Disconnect: Right Rear Cushion Heater Mat C3169.
- Measure the resistance between rear cushion heater mat C3169 pins 2 and 3, component side.
- Is the resistance between 8,000 and 15,000 ohms?
Yes
REPAIR circuit RHS41 (GN/BN) or VHS45 (GY/BN). TEST the system for normal operation.
No
INSTALL a new cushion heater mat. REFER to Seat Cushion Heater Mat - Rear Seat Cushion Heater Mat - Rear. TEST the system for normal operation.
-------------------------------------------------
S15 CHECK THE HIGH HEAT REQUEST CIRCUIT FOR AN OPEN OR SHORT TO GROUND
- For electrical connector access, release and lower the rear 60 percent seat backrest. Refer to the appropriate steps in Heated Seat Module - Rear Heated Seat Module - Rear.
- Disconnect: Right Rear Heated Seat Switch C831.
- Measure the resistance between:
- rear heated seat module C3162A-8, circuit CHS50 (BU/GY), harness side and right rear heated seat switch C831-5, circuit CHS50 (BU/GY), harness side.
- rear heated seat module C3162A-8, circuit CHS50 (BU/GY), harness side and ground.
- Is the resistance less than 5 ohms between C3162A-8 and C831-5 and greater than 10,000 ohms between C3162A-8 and ground?
Yes
GO to S17.
No
REPAIR the circuit. TEST the system for normal operation.
-------------------------------------------------
S16 CHECK THE LOW HEAT REQUEST CIRCUIT FOR AN OPEN OR SHORT TO GROUND
- For electrical connector access, release and lower the rear 60 percent seat backrest. Refer to the appropriate steps in Heated Seat Module - Rear Heated Seat Module - Rear.
- Disconnect: Right Rear Heated Seat Switch C831.
- Measure the resistance between:
- rear heated seat module C3162A-7, circuit CHS51 (YE/GY), harness side and right rear heated seat switch C831-1, circuit CHS51 (YE/GY), harness side.
- rear heated seat module C3162A-7, circuit CHS51 (YE/GY), harness side and ground.
- Is the resistance less than 5 ohms between C3162A-7 and C831-1 and greater than 10,000 ohms between C3162A-7 and ground?
Yes
GO to S17.
No
REPAIR the circuit. TEST the system for normal operation.
-------------------------------------------------
S17 CHECK THE HEATED SEAT SWITCH
- Disconnect: Right Rear Heated Seat Switch C831.
- Use the following chart and measure the resistance between rear heated seat switch pins, component side, while pressing the indicated switch buttons and compare the results.
- Is the heated seat switch OK?
Yes
INSTALL a new heated seat module. REFER to Heated Seat Module - Rear Heated Seat Module - Rear. TEST the system for normal operation.
No
INSTALL a new heated seat switch. REFER to Heated Seat Switch - Rear Heated Seat Switch - Rear.
-------------------------------------------------
