Steering Column Shroud

Steering Column Shroud









All columns

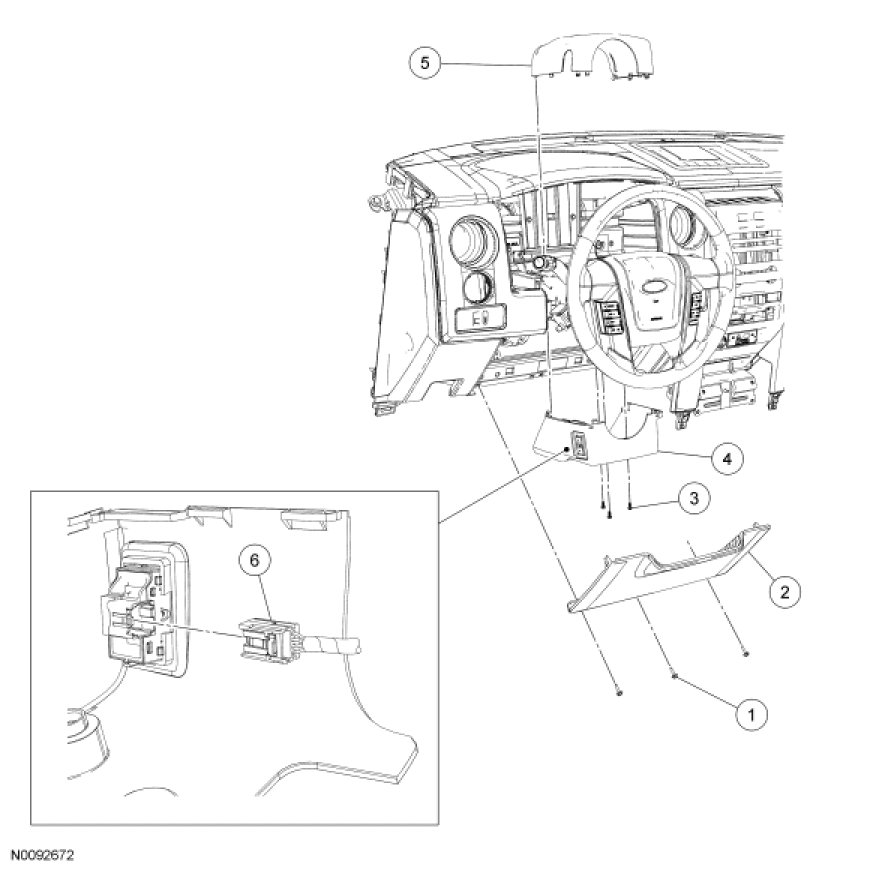

1. Remove the 3 screws and steering column opening trim panel.

2. Remove the upper and lower steering column shrouds.
- If equipped, position the selector lever boot aside.

- Unclip the upper steering column shroud from the lower steering column shroud and remove.

- Remove the 3 screws and the lower shroud.

Power tilt columns

3. Disconnect the power tilt electrical connector.

All columns

4. To install, reverse the removal procedure.
