Symptom Chart - Driveline
Driveline System
Symptom Chart - Driveline

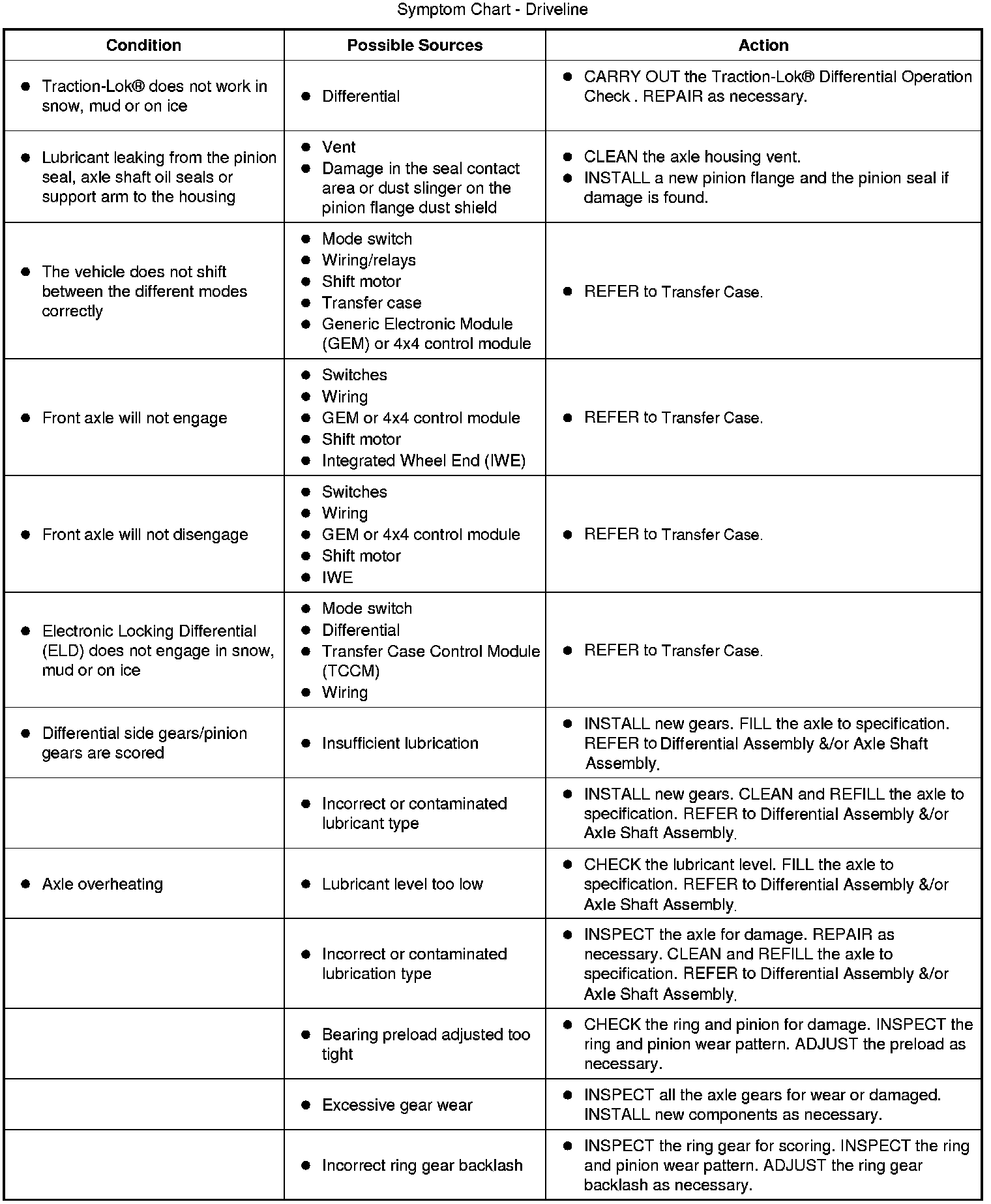

Symptom Chart - Driveline (Part 1):
Symptom Chart - Driveline (Part 2):
