Pinpoint Test S: Squeak/Rattle/Chucking Noise From Door

Handles, Locks, Latches and Entry Systems







Pinpoint Tests

Pinpoint Test S: Squeak/Rattle/Chucking Noise From Door

This pinpoint test is intended to diagnose the following:

- Door alignment
- Striker adjustment
- Door latch



PINPOINT TEST S: SQUEAK/RATTLE/CHUCKING NOISE FROM DOOR

-------------------------------------------------
S1 CHECK FOR ANY LOOSE COMPONENTS


- Remove the door trim panel.
- Inspect inside the door for any loose components.
- Are there any loose components inside the door?

Yes
REPAIR as necessary. TEST the system for normal operation.

No
GO to S2.

-------------------------------------------------
S2 CHECK THE STRIKER ADJUSTMENT


- Check the adjustment of the striker. Refer to Doors, Hood and Trunk.
- Is the striker adjusted correctly?

Yes
GO to S3.

No
ADJUST the striker as necessary. TEST the system for normal operation.

-------------------------------------------------
S3 CHECK THE DOOR ALIGNMENT


- Check the alignment of the door. Refer to Doors, Hood and Trunk.
- Is the door aligned correctly?

Yes
GO to S4.

No
ADJUST the door as necessary. TEST the system for normal operation.

-------------------------------------------------
S4 CHECK THE LATCH OPERATION AFTER LUBRICATION


- Lubricate the door latch. Refer to Latch Lubrication Procedures.

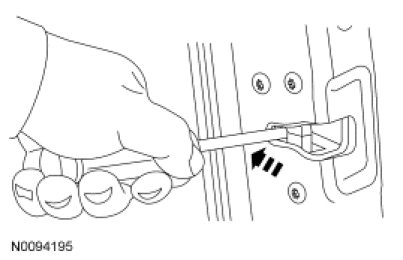

- Using a screwdriver, fully close the latch (2 clicks).




- Operate the door latch and listen for the noise.
- Is the original noise still present after the latch is lubricated?

Yes
INSTALL a new door latch. REFER to Front Door Latch Front Door Latch or Rear Door Latch - SuperCrew Rear Door Latch - SuperCrew. TEST the system for normal operation.

No
The concern was caused by an insufficiently lubricated door latch.

-------------------------------------------------
