Rear Ride Height Measurement (SVT Raptor)
Ride Height Measurement Rear Ride Height Measurement (SVT Raptor)NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have at lease one-half tank of fuel.
1.

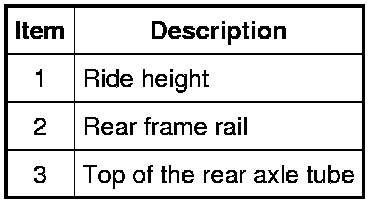

Measure the distance between the rear frame rail (Item 2) and the top of the rear axle tube (Item 3) to obtain the rear ride height (Item 1).
