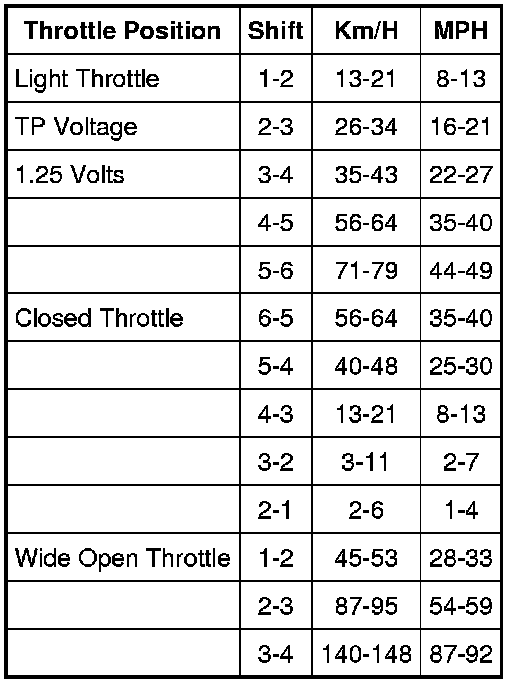

Shift Speeds
Shift SpeedsNOTE: Shift speed ranges are approximate for all applications. For specific applications (engine, axle ratio, tire size and application), refer to the Automatic Transmission Specification booklet. Always drive the vehicle in a safe manner according to driving conditions and obey all traffic laws.
