Timing Cover

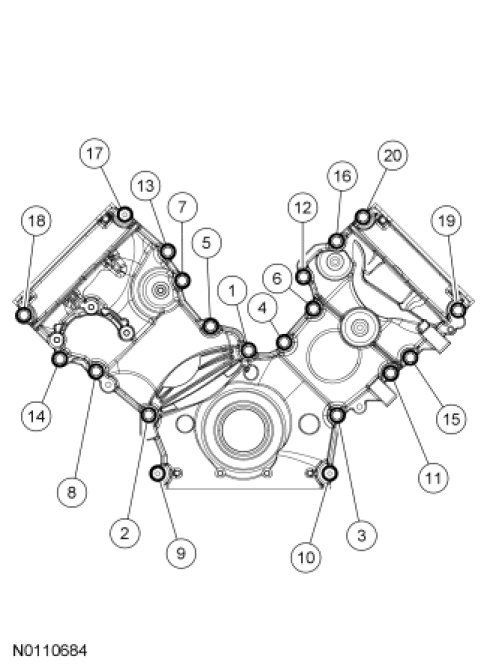

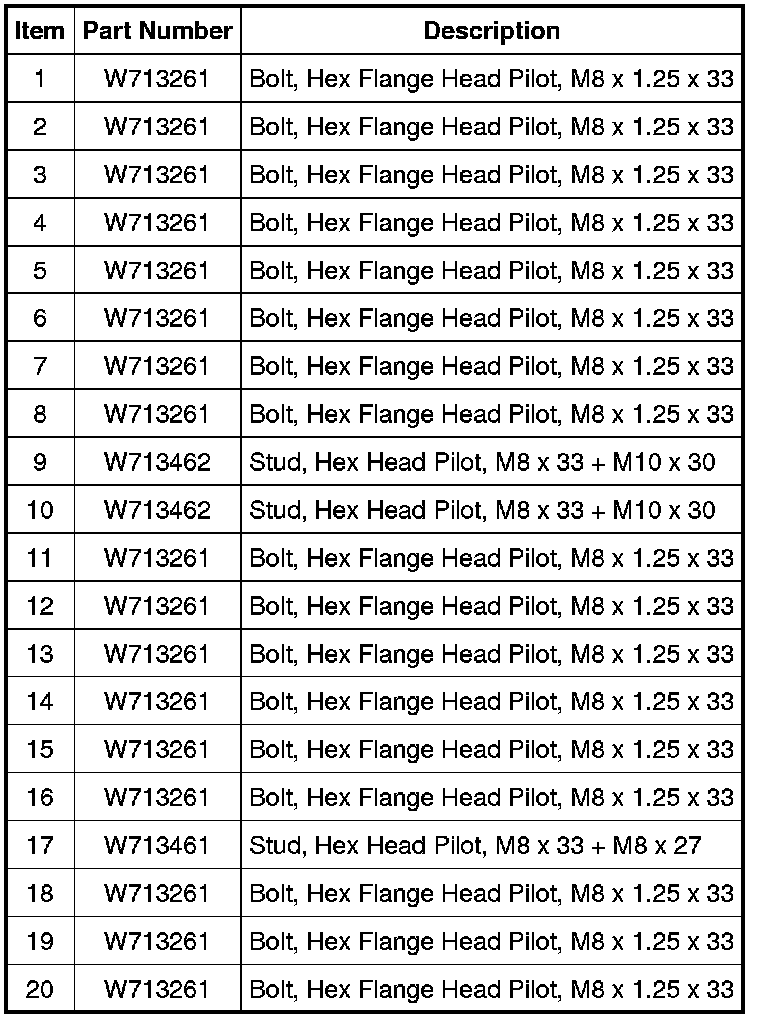

Tighten the 20 engine front cover fasteners in the sequence shown in 2 stages.
Stage 1: Tighten all fasteners to 10 Nm (89 lb-in).
Stage 2: Tighten all fasteners to 20 Nm (177 lb-in).
Stage 3: Tighten all fasteners an additional 45 degrees.
