Solenoid Strategy Identification Tag

Identification Tags

All vehicles come equipped with a Safety Compliance Certification Label. The location on the label marked TR is reserved for the transmission code. To determine the correct transmission for this vehicle, refer to the Owner's Literature, Transmission Code Designations. All transmissions are equipped with an identification tag located on the transmission case. For transmission part number, serial number and build date, refer to the transmission identification tag located on the transmission case.











Solenoid Strategy Identification Tag

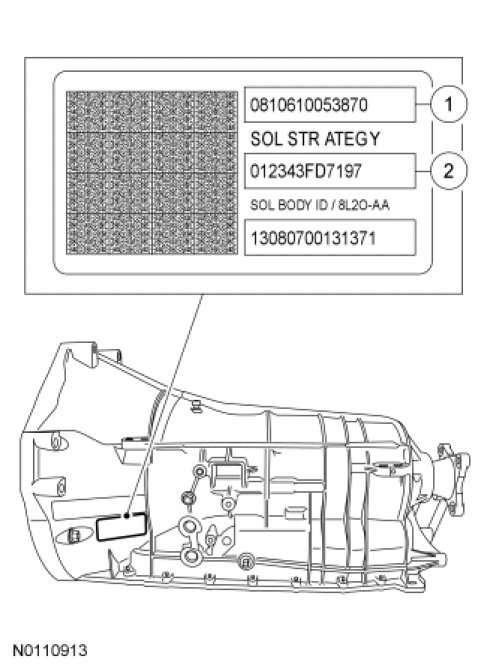

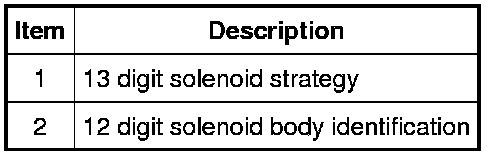

All vehicles equipped with a 6.2L engine and a PCM controlled transmission will have a solenoid strategy identification tag located on the left side of the transmission case. To determine the correct solenoid strategy for the transmission, compare the 13 digits on the tag with solenoid strategy displayed on the scan tool. If the scan tool matches the service tag then the solenoid identification strategy is correct. If the solenoid identification strategy retrieved from the scan tool does not match the solenoid strategy identification tag, a solenoid strategy data download is required. Refer to Solenoid Body Strategy Solenoid Body Strategy for download procedure.
