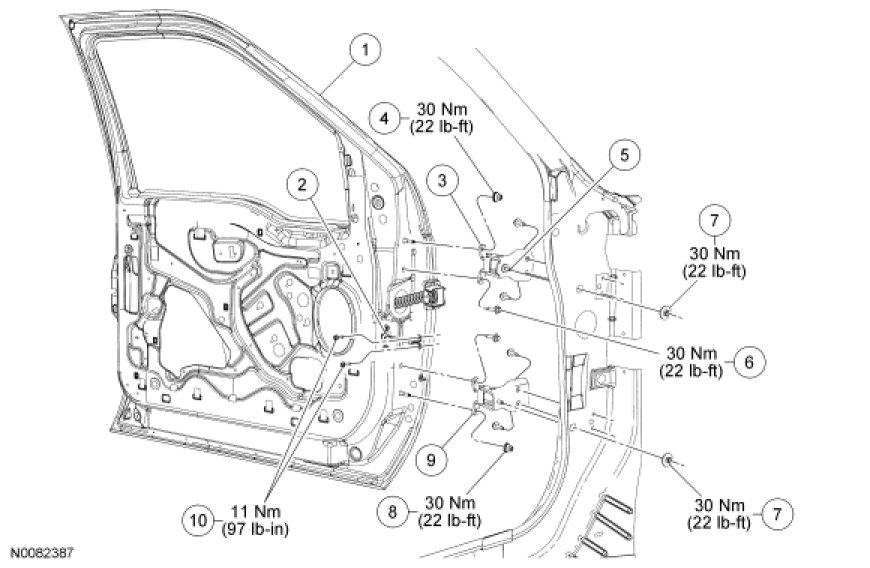

Front Door: Service and Repair

Door









Removal and Installation

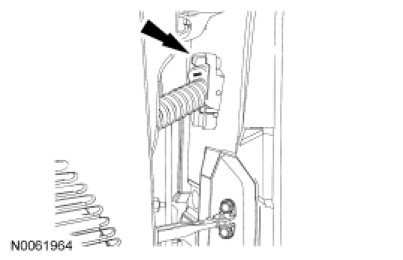

1. Disconnect the front door electrical connector at the A-pillar.

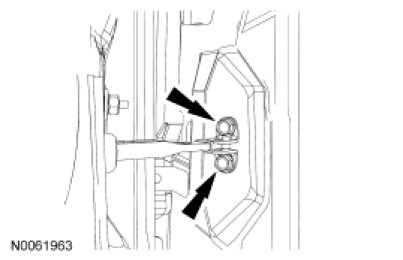

2. Remove the 2 door check-to-door bolts.
- To install, tighten to 11 Nm (97 lb-in).





3. NOTICE: To minimize the possibility of cross threading, hand-start all fasteners during installation.

NOTICE: To avoid damaging the door, this step requires an assistant.

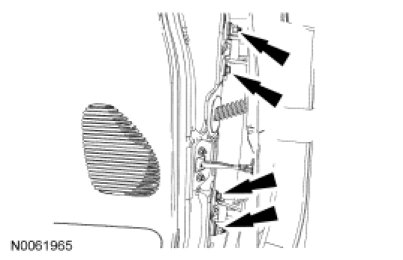

Remove the hinge-to-door bolts.

- To install, tighten to 30 Nm (22 lb-ft).





4. Remove the door.

5. To install, reverse the removal procedure.
