Power Door Lock Switch: Service and Repair

Door Lock Control Switch

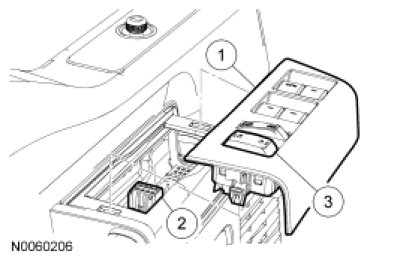

NOTE: Left front door shown, right front door similar.











Removal and Installation

1. Lift up to remove the window and door lock control switch moulding.

2. Disconnect the door lock control switch electrical connector.

3. Release the retaining clips and remove the door lock control switch.

4. To install, reverse the removal procedure.
