Differential Ring And Pinion - Dana 60
Differential Ring And Pinion - Dana 60

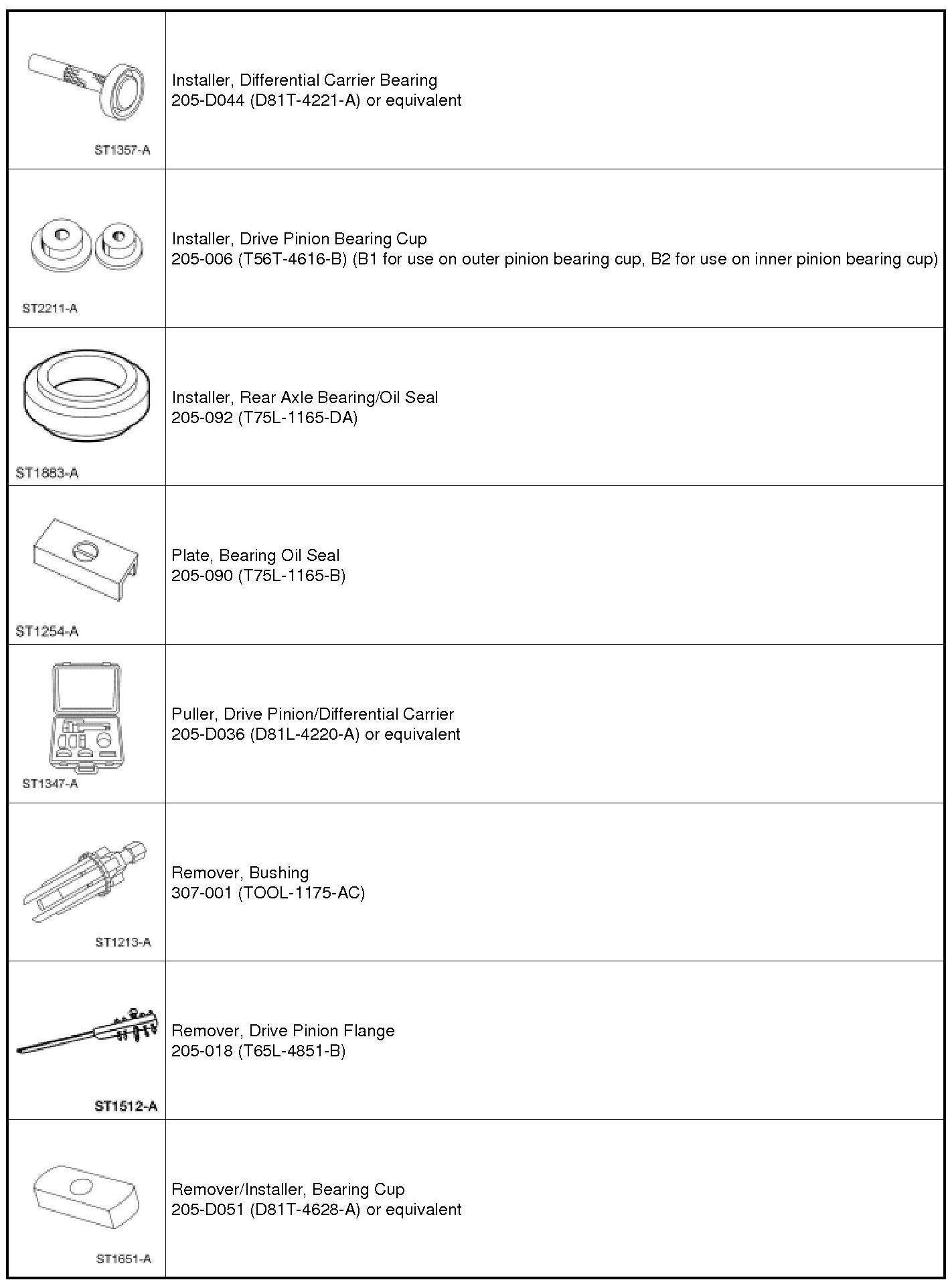

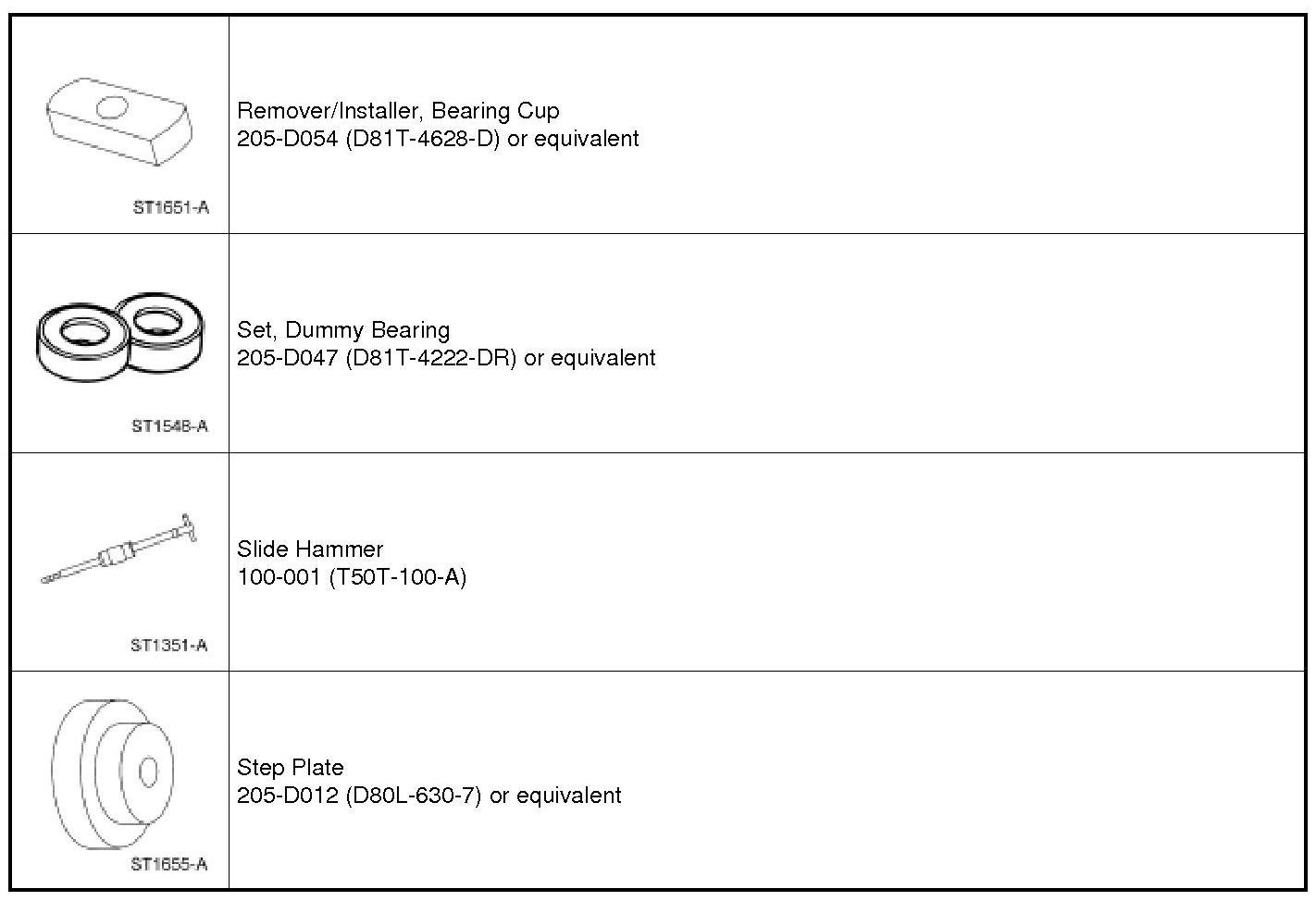

Removal
1. Remove the differential carrier. For additional information, refer to Differential Carrier - Dana 60 Differential Carrier - Dana 60.
2. NOTE: Index-mark the driveshaft to the pinion flange to maintain correct driveline balance.

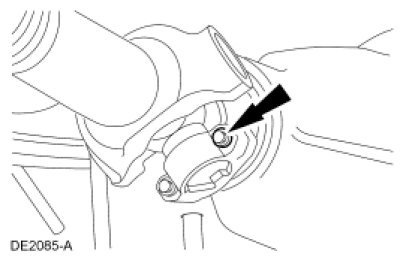

Remove and discard the 4 driveshaft flange bolts and 2 retainers. Position the driveshaft aside.
3. Using the Drive Pinion Flange Holding Fixture to prevent the flange from turning, remove and discard the pinion nut and washer.

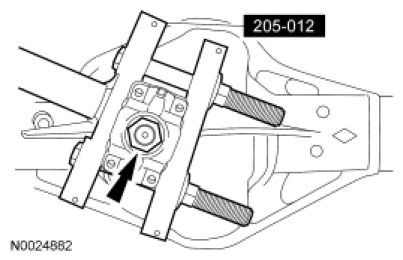

4. Using the Drive Pinion Flange Remover, remove the pinion flange.

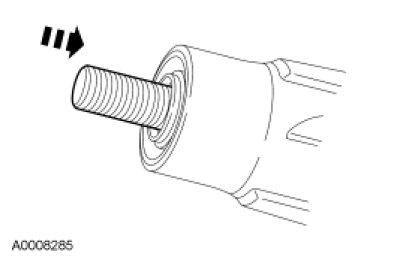

5. Using a soft-faced hammer, tap the pinion through the outer bearing. Remove the pinion through the rear of the differential housing.
- Discard the pinion, bearing and collapsible spacer.
6. Using the Slide Hammer and Bushing Remover, remove the pinion seal. Discard the seal.
7. Remove the oil slinger and the differential pinion bearing.
8. Using a suitable tool, remove the outer pinion bearing cup, the inner pinion bearing cup and the oil baffle.
- Use the Handle and the Bearing Cup Remover/Installer (205-D051) to remove the inner pinion bearing cup.
- Use the Handle and the Bearing Cup Remover/Installer (205-D054) to remove the outer pinion bearing cup.
9. Place the differential carrier into a vise with soft jaws.
10. Using the Drive Pinion/Differential Carrier Puller, remove the differential bearings.
11. Remove the differential bearing shims.
- Wire the shims together and mark from which side they were removed.
12. NOTICE: Place shop towels under the ring gear to prevent ring gear damage.
NOTE: Discard the bolts after removing them from the differential case.
Remove the ring gear.

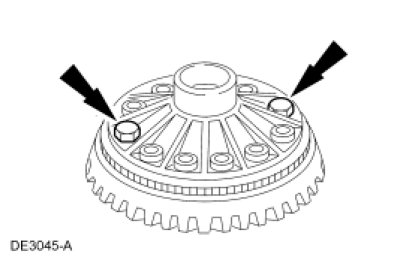

- Remove and discard 8 of the 12 ring gear bolts. Leave 4 loosely assembled bolts spaced equally apart from each other.

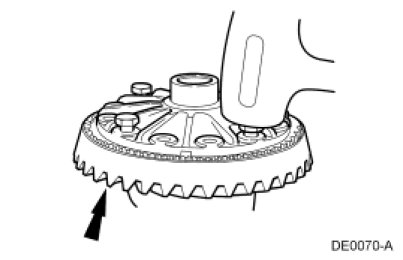

- Tap each of the 4 bolt heads alternately with a soft face hammer to loosen the ring gear. Remove the 4 bolts and the ring gear. Discard the bolts.
Installation
1. Start 2 new bolts through the differential case flange and into the differential ring gear to make sure the differential ring gear and the differential case align.
2. Install the remaining 10 new ring gear bolts and draw up the new ring gear bolts alternately and evenly.
- Tighten to 215 Nm (158 lb-ft).

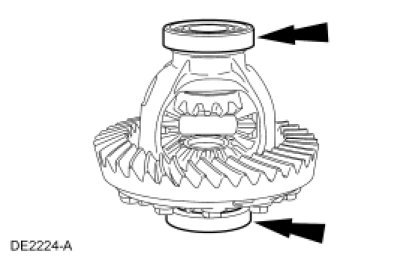

3. Place the Dummy Bearing Set on the differential case hubs and position the assembly into the differential housing.
4. NOTE: Repeat this step until there is a consistent reading.

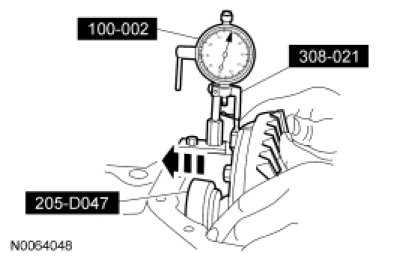

Force the differential case as far as possible toward the Dial Indicator Gauge with Holding Fixture and Clutch Housing Gauge. With force applied, set the Dial Indicator Gauge at 0. Force the differential case as far as it will go in the opposite direction. Record the total differential case end play reading.
5. Remove the differential case with the Dummy Bearing Set from the differential housing.

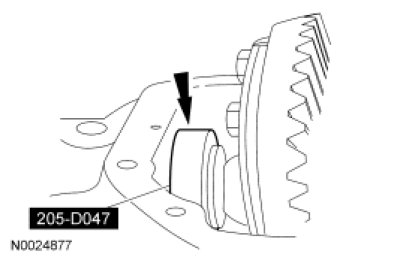

- Do not remove the Dummy Bearing Set from the differential case hubs.
6. NOTE: Make sure the inner oil baffle is squarely under the inner pinion bearing cup.
Install the inner oil baffle and the inner and outer pinion bearing cups.

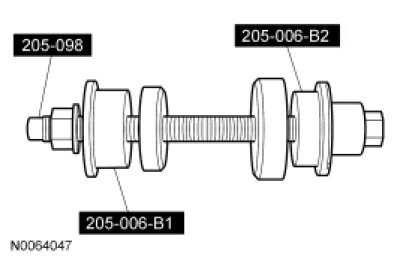

7. Using the Rear Axle Drawbar and Drive Pinion Bearing Cup Installer, install the pinion bearing cups.
- Place the following on the inner and outer bearing cups.
- Place Installer 205-006-B1 on the outer pinion bearing cup.
- Place Installer 205-006-B2 on the inner pinion bearing cup.
- Install and tighten the Rear Axle Drawbar to seat the cups.

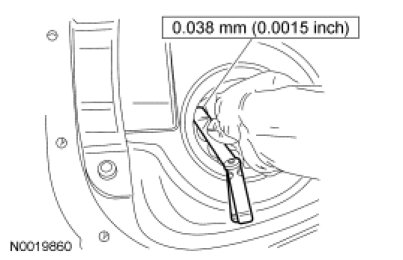

8. NOTE: If the feeler gauge can fit between a cup and the bottom of its bore at any point around the cup, remove and reseat the cup.
Check that the cups have seated correctly in their bores.
9. NOTE: If any of the gauge surfaces have nicks in them, remove the high spots with a medium India oilstone to prevent erroneous readings.
NOTE: Apply only a light oil film on the pinion bearings before assembling the tools.

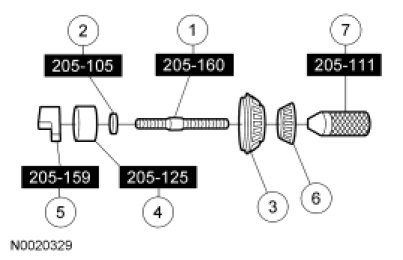

Assemble and position the following in the differential housing in the following sequence:
1. Position the Adapter 205-160.
2. Position the Adapter 205-105.
3. Position the inner pinion bearing.
4. Position the Adapter 205-125.
5. Position the Adapter 205-159.
6. Position the outer pinion bearing.
7. Thread on the Adapter 205-111.
10. NOTE: This step simulates pinion bearing preload.
Using a Nm (lb-in) torque wrench, tighten the Adapter to set the rotational torque.
- Tighten to a rotational torque of 2.2 Nm (20 lb-in).
11. NOTE: Offset the Adapter to obtain an accurate reading.

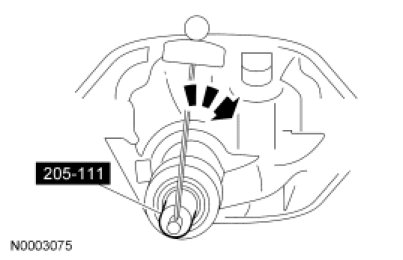

Rotate the Adapter several half-turns to seat the pinion bearings. Position the Adapter as shown.
12. Install the Gauge Tube.
1. Install the 2 bearing caps.
2. Install the 4 bolts.
- Tighten to 108 Nm (80 lb-ft).
13. NOTE: Use a feeler gauge or flat, clean drive pinion position shims as a measuring device.
NOTE: Do not attempt to force the gauge or shim between the Adapter and Gauge Tube. A slight drag indicates a correct selection.
Using a feeler gauge or flat, clean drive pinion position shims, measure the gap between the Adapter and Gauge Tube. Record the measurement.

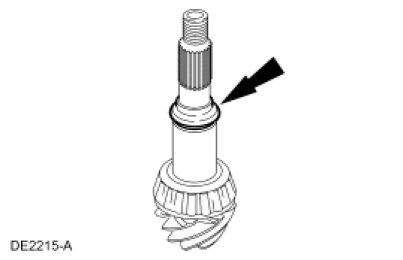

14. Notice the (+) or (-) etching on the pinion, and adjust the new shim thickness to compensate for the difference of these 2 figures.
- For example, a pinion etched with m+8 (+3) requires 0.08 mm (0.003 in) less shimming than a pinion etched "0". This means to increase the mounting distance by the amount etched in the pinion, subtract 0.08 mm (0.003 in) from the drive pinion position shim selected for installation. A pinion etched m-8 (-3), requires 0.08 mm (0.003 in) more shimming than a pinion etched "0". In this instance, add 0.08 mm (0.003 in) to the drive pinion position shim selected for installation to decrease the pinion mounting distance by the amount etched in the pinion.
15. NOTICE: Follow the drive pinion bearing preload shim and drive pinion position shim assembly sequence as directed or unit failure can result.

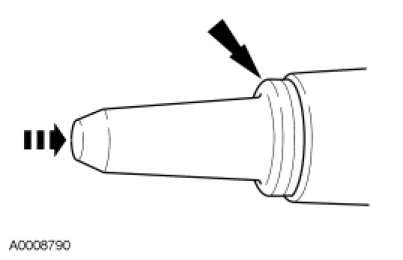

Install the correct thickness drive pinion position shim on the pinion.
- To change the pinion adjustment, drive pinion position shims are available in the thickness shown in the following chart. Measure each shim separately with a micrometer.
Available Drive Pinion Position Shims

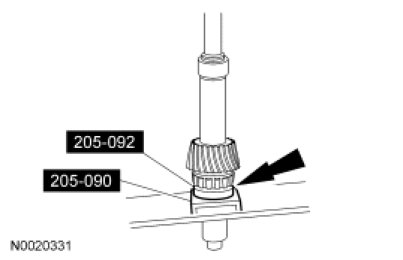

16. Using the Bearing Oil Seal Plate and Rear Axle Bearing/Oil Seal Installer, install the differential pinion bearing.
17. Using a suitable driver, install the pinion seal.
- Lightly coat the pinion seal lip with lubricant.
18. Install a new collapsible spacer.
19. NOTICE: Do not damage the pinion, the bearings, the seal or the cup.

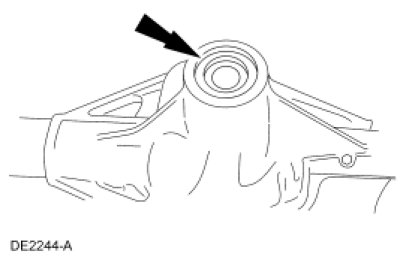

Insert the pinion into the differential housing, and seat the inner bearing into the bearing cup.

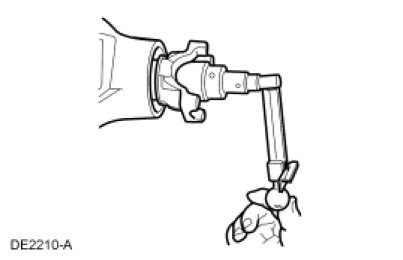

20. NOTE: Never use a metal hammer on the pinion flange or install the flange with power tools. If necessary, use a plastic hammer to tap on a tight fitting flange while holding the backside of the drive pinion.
Lightly coat the flange splines and seal mating area with lubricant, then install the flange and a new washer and pinion nut.
21. NOTE: Never back off the pinion nut to reduce preload. If preload reduction is necessary, install a new collapsible spacer and pinion nut.
Tighten the nut.
- Use the Drive Pinion Flange Holding Fixture to prevent the flange from turning while tightening the nut. Remove the Drive Pinion Flange Holding Fixture when taking pinion bearing torque preload readings.
- Rotate the pinion occasionally to verify that the bearings are seating correctly.
- Take frequent pinion bearing torque preload readings.
22. Tighten to a rotational torque of 1.7-3.4 Nm (15-30 lb-in).
23. Position the differential case with the Dummy Bearing Set into the differential housing.
24. NOTE: Repeat this step until there is a consistent reading.

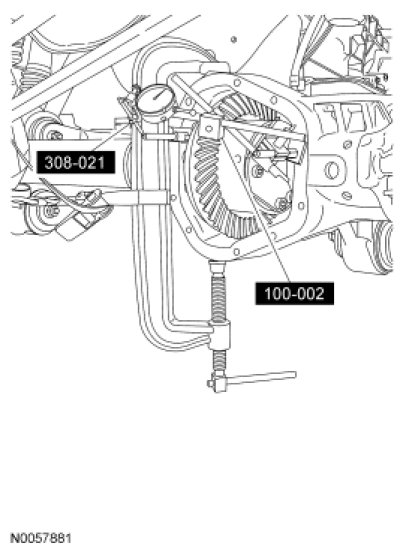

Using the Dummy Bearing Set, Dial Indicator Gauge with Holding Fixture and Clutch Housing Gauge, determine the total thickness of differential bearing shims to install under the differential bearing on the ring gear side of the differential case. Record this measurement, as the shim thickness required for the ring gear side of the differential case.
- Force the ring gear away from the pinion and zero the Dial Indicator Gauge.
- Force the ring gear into mesh with the pinion.
- Rock the ring gear to allow the teeth of the gears to mesh.
- Record the reading.
25. Remove the differential case and the Dummy Bearing Set from the differential housing.
- Remove the Dummy Bearing Set from the differential case.
26. Place the required thickness of differential bearing shims on the ring gear side of the differential case. Refer to the measurement recorded, as the shim thickness required for the ring gear side of the differential case. Differential bearing shims are available in the thickness shown in the following chart.
- For example, a reading of 1.14 mm (0.045 in), requires that 1.14 mm (0.045 in) shims be placed on the ring gear side of the differential case.

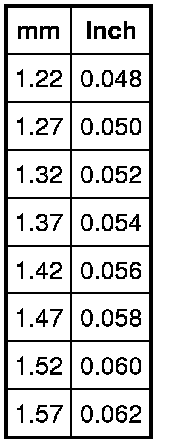

Available Differential Bearing Shims

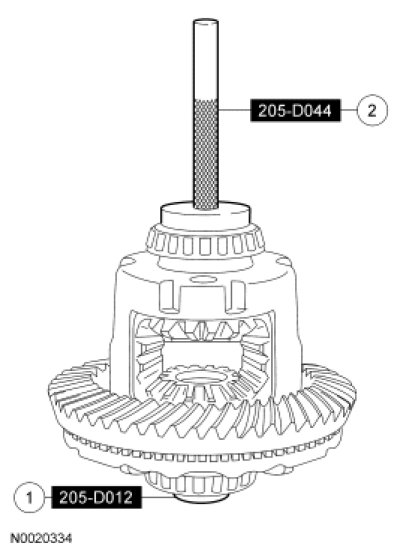

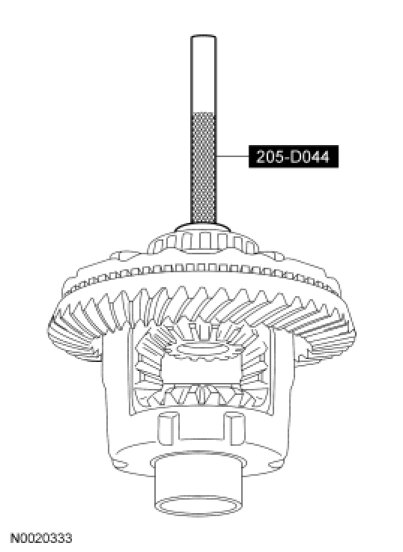

27. Using the Differential Carrier Bearing Installer, install the differential bearing.
28. Determine the total thickness of differential bearing shims to install under the differential bearing on the drive pinion side of the differential case.
- Subtract the measurement recorded, as the shim thickness required for the ring gear side of the differential case, from the total case end play measurement taken at the beginning of the assembly procedure. Then, add 0.38 mm (0.015 in) to the total. This is the total amount of differential bearing shims to install under the differential bearing on the drive pinion side of the differential case.
29. Place the amount of differential bearing shims, as determined by the calculation made in the previous step, on the drive pinion side of the differential case.
30. Using the Differential Carrier Bearing Installer and Step Plate, install the differential bearing.
1. Place the Step Plate under the bearing to protect it during the bearing installation.
2. Using the Differential Carrier Bearing Installer, install the bearing.
31. Position the differential bearing cups on the bearings.
32. NOTICE: Do not spread the differential housing more than specified or damage to the housing may occur.
NOTE: Install the C-clamp at the 12 o'clock and 6 o'clock positions to allow the horizontal spread of the housing.
NOTE: Use a safety strap to keep the C-clamp from rotating.
NOTE: Use a C-clamp with a minimum 15-in opening and a 16,250 pound load limit.
Using a C-clamp with the Dial Indicator Gauge with Holding Fixture and Clutch Housing Gauge, spread the differential housing 0.38 mm (0.015 in) and install the differential carrier.
- Remove the Dial Indicator Gauge after measuring the housing spread.
- Using a soft-faced hammer, seat the differential into the differential housing.
- Remove the C-clamp after seating the differential in the differential housing.

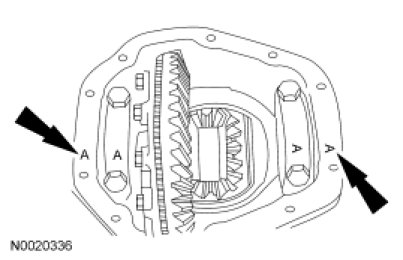

33. NOTE: Match the positioning of the mating letters on the bearing caps and the differential housing.
Install the 2 bearing caps and the 4 bolts.
- Tighten to 108 Nm (80 lb-ft).
34. Using the Dial Indicator Gauge with Holding Fixture and Clutch Housing Gauge, measure backlash at 3 equally spaced points.
- The backlash must be within the specifications, and cannot vary more than 0.05 mm (0.002 in) between points checked.
- Make the necessary corrections by moving shims from one side of the differential case to the other, until the correct backlash adjustment is achieved.
- Correct for low backlash by moving the ring gear away from the pinion.
- Correct for high backlash by moving the ring gear toward the pinion.
35. Apply marking compound and rotate the differential assembly 5 complete revolutions.
36. Verify an acceptable pattern check. For additional information, refer to Differential Assembly and/or Axle Shaft Assembly and/or Drive/Propeller Shafts, Bearings and Joints.
37. NOTE: Clean the differential housing cover mounting surfaces with a suitable solvent to remove all traces of oil film or foreign material.
NOTE: Install the differential housing cover within 15 minutes of applying the silicone material.
Apply the specified bead of silicone rubber sealer as shown.
38. NOTE: Place 2 cover bolts into the differential housing cover at the 2 o'clock and 8 o'clock positions. This will help to position the differential housing cover onto the differential housing.
Install the differential housing cover and the 10 differential cover bolts.
- Tighten to 61 Nm (45 lb-ft).
39. Position the driveshaft in the front axle flange. Install the 2 new retainers and 4 new flange bolts.
- Tighten to 35 Nm (26 lb-ft).
40. Install the axle shafts and seals. For additional information, refer to Axle Shaft Seal Axle Shaft Seal.
41. NOTE: If possible, allow one hour curing time before filling the axle with lubricant.
Fill the axle with the specified type and quantity of lubricant.
