Shift Control Housing

Shift Control Housing

Disassembly and Assembly

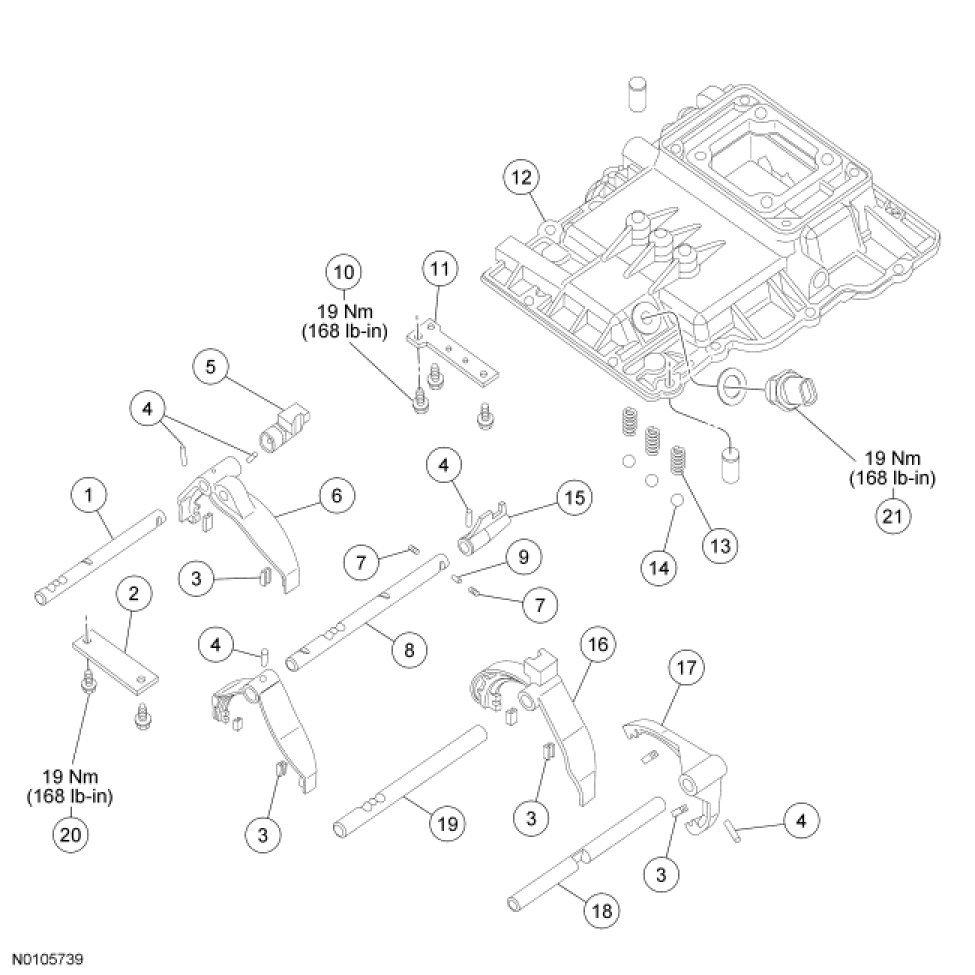

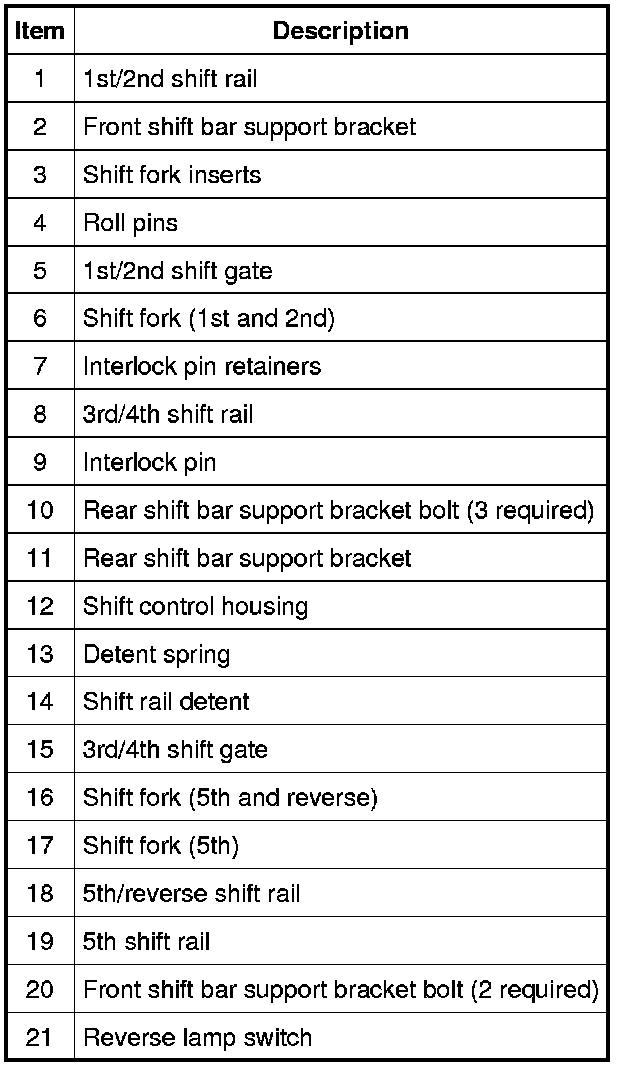

Transmission Shift Components - Disassembled View

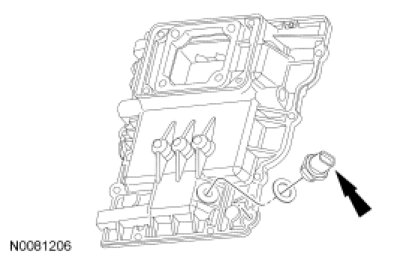

1. Remove the reverse lamp switch.
- To install, tighten to 19 Nm (168 lb-in).





2. Place the shift control housing on a bench.

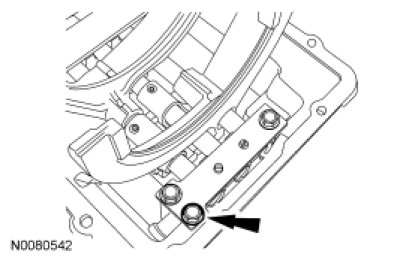

3. Remove the 3 rear shift bar support bracket bolts.
- To install, tighten to 19 Nm (168 lb-in).





4. Remove the 2 interlock pin retainers and interlock pin.

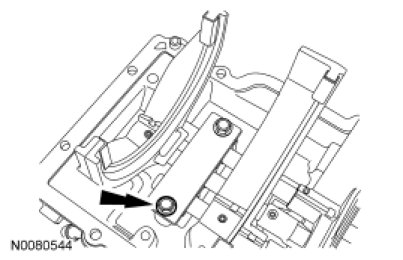

5. Remove the 2 front shift bar support bracket bolts.
- To install, tighten to 19 Nm (168 lb-in).

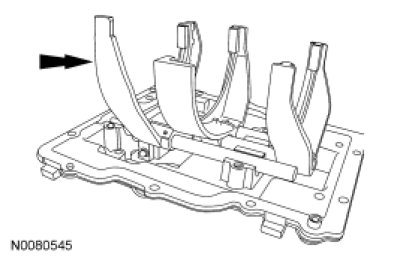

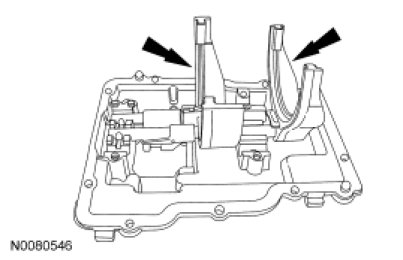

6. Remove 5th gear shift fork and rail.





7. Remove 1-2 and 3-4 gear shift forks and rails.

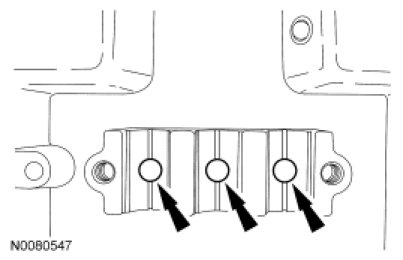

8. Remove the 3 shift rail detents and springs.

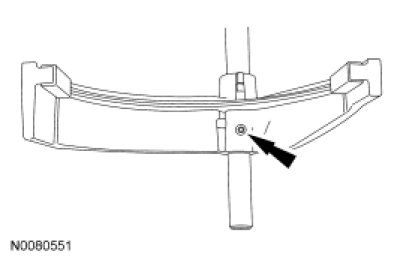

9. Remove the roll pin from the 5th gear shift rail.
- Discard the roll pin.

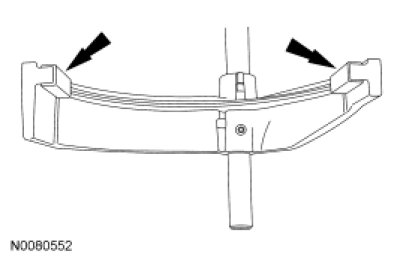

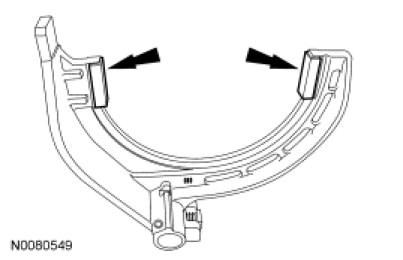

10. Remove the 2 shift fork inserts from the 5th gear shift fork.

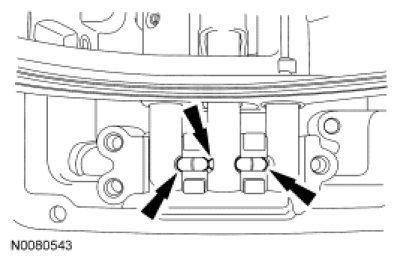

11. Remove the 2 roll pins from the 1-2 and 3-4 gear shift rails.
- Discard the roll pins.

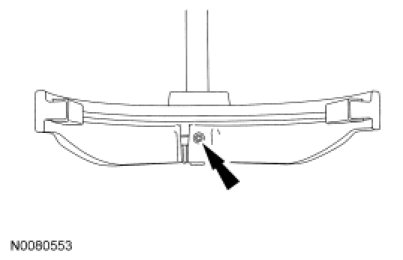

12. Remove the roll pin from the 3-4 gear shift rail.
- Discard the roll pin.





13. Remove the 2 shift fork inserts from the 3-4 gear shift fork.





14. Remove the roll pin from the 1-2 gear shift rail.
- Discard the roll pin.





15. Remove the 2 shift fork inserts from the 1-2 gear shift fork.





16. To assemble, reverse the disassembly procedure.
- Install new roll pins.
