Steering Column




Steering Column

























Removal and Installation

All vehicles

1. NOTICE: Do not allow the steering column to rotate while the steering column shaft is disconnected or damage to the clockspring may result. If there is evidence that the steering column has rotated, the clockspring must be removed and recentered. For additional information, refer to Restraint Systems.

Turn the steering wheel to the straight-ahead position and turn the ignition switch to the OFF position.

2. Depower the Supplemental Restraint System (SRS). For additional information, refer to Restraint Systems.

3. Remove the steering column opening trim panel.
- Pull outward at the top of the trim panel to release the upper retainers.

- Carefully pull upward and outward on the bottom of the trim panel to release the lower retainers located at the bottom corners of the trim panel.





4. Remove the bolt and position the hood release handle and cable aside.
- To install, tighten to 20 Nm (177 lb-in).

5. Remove the 4 bolts and the steering column opening trim panel reinforcement.
- To install, tighten to 9 Nm (80 lb-in).

Vehicles with tilt steering column

6. Release the steering column tilt lever.

All vehicles

7. Remove the 3 screws and the upper and lower steering column shrouds.
- Press inward on the sides of the upper shroud and pull up to separate it from the lower shroud.

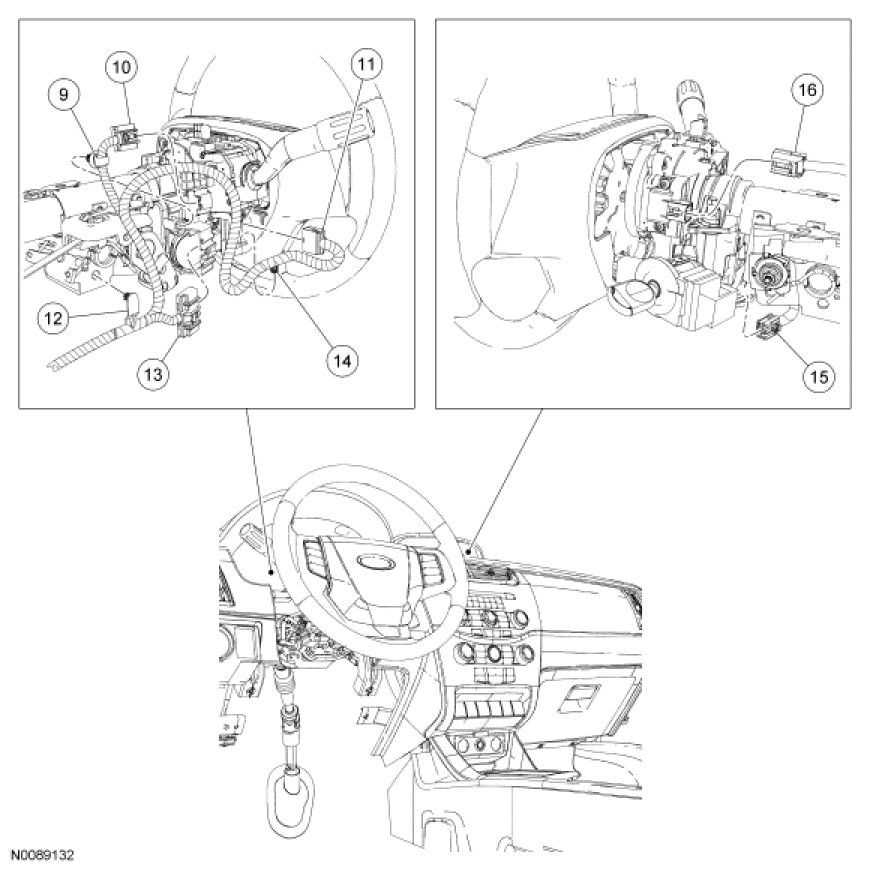

8. Disconnect the Passive Anti-Theft System (PATS) transceiver, ignition switch, multifunction switch, steering wheel rotation sensor and clockspring electrical connectors.

9. Detach the 3 wiring harness retainers from the steering column.

10. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

Remove and discard the upper steering column shaft-to-steering column bolt and disconnect the upper steering column shaft from the steering column.
- To install, tighten the new bolt to 30 Nm (22 lb-ft).

11. Remove and discard the 3 steering column nuts.
- To install, tighten the new nuts to 28 Nm (21 lb-ft).

12. Remove the steering column bolt and the steering column.
- To install, tighten to 28 Nm (21 lb-ft).

13. WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

NOTE: Make sure the road wheels are in the straight-ahead position.

To install, reverse the removal procedure.

14. Repower the SRS. For additional information, refer to Restraint Systems.
