Fuel Pump Control Unit: Service and Repair

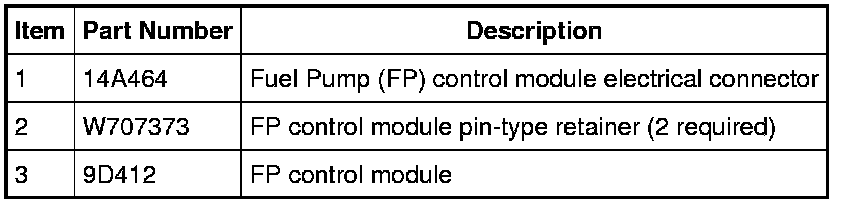

Fuel Pump Control ModuleRemoval and Installation 1.
Position aside the LR quarter panel luggage compartment trim.
2.
Disconnect the Fuel Pump (FP) control module electrical connector.
3.
Remove the 2 pin-type retainers and the FP control module.
4.
To install, reverse the removal procedure.
