Fuel Rail and Fuel Injector - Exploded View




Fuel Rail and Fuel Injector - Exploded View

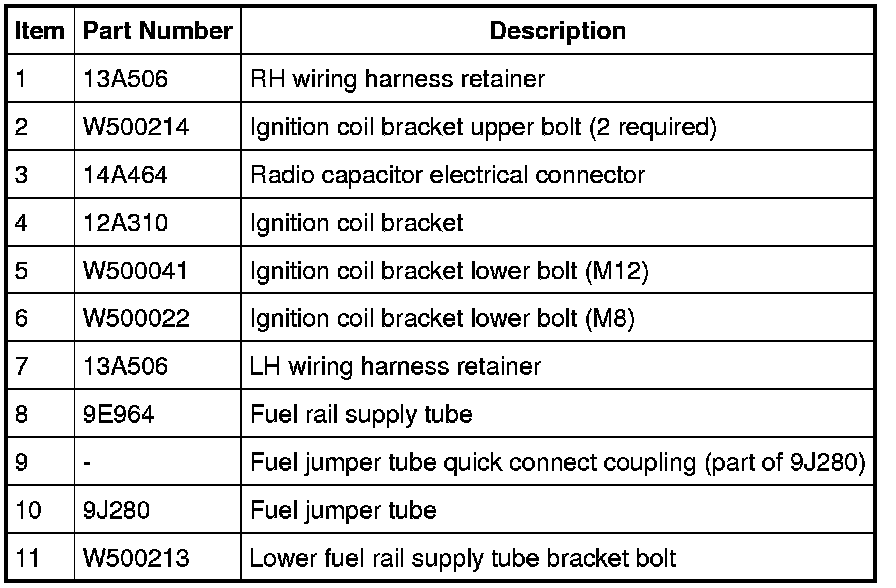

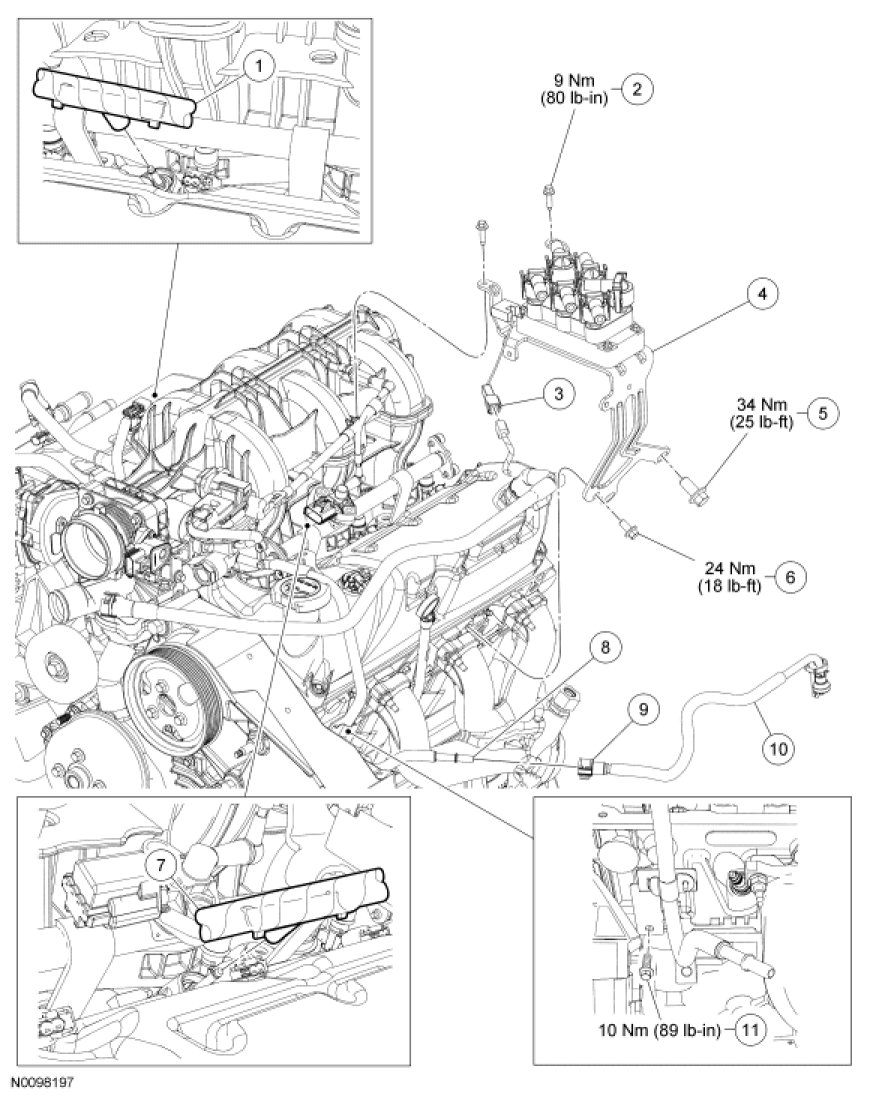

Ignition Coil, Wire Harness and Fuel Tube

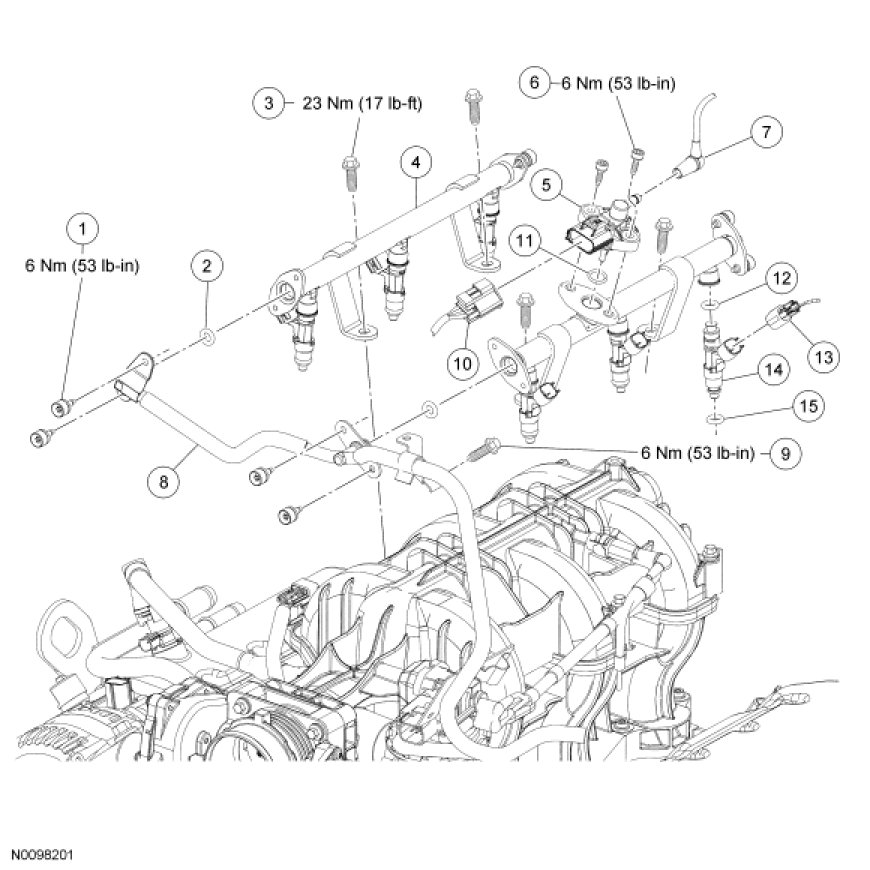

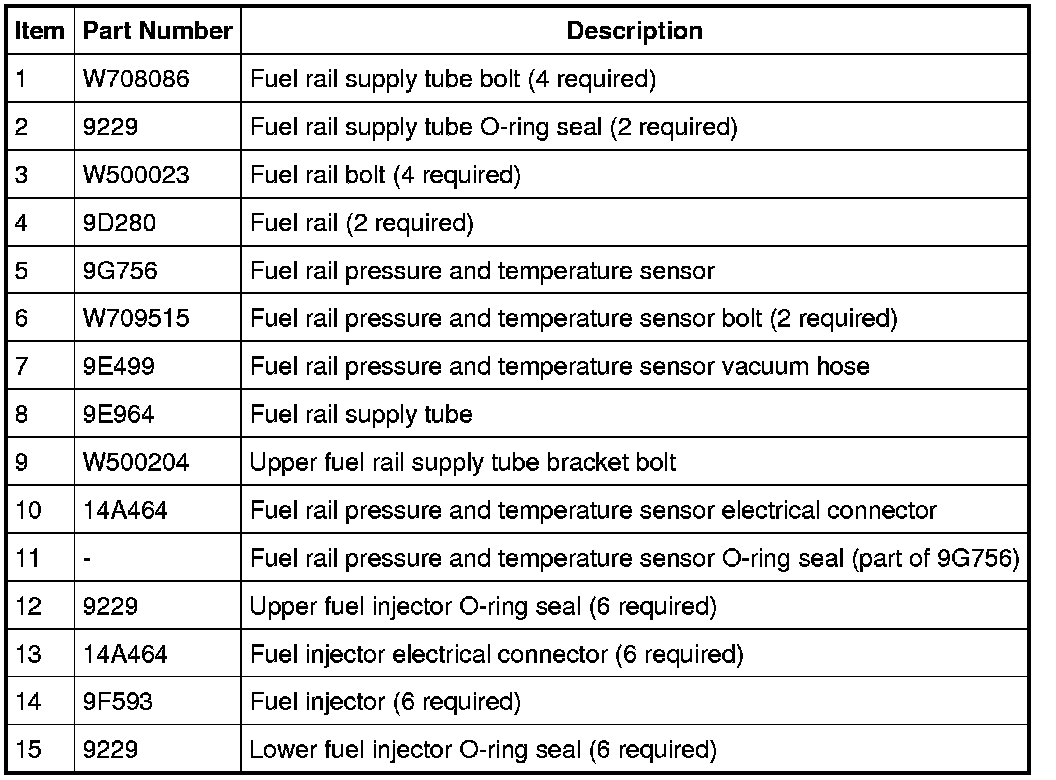

Fuel Rail and Injectors
