Engine
>>
Intake Manifold
Intake Manifold
Position the
intake manifold
and install the 8 bolts.

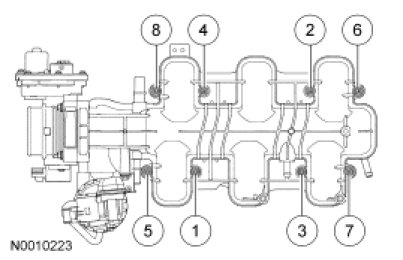

Tighten in the sequence shown to
10 Nm (89 lb-in).
