Register - Driver Side

Register - Driver Side

Removal and Installation

1. Remove the audio unit. For additional information, refer to Accessories and Optional Equipment.

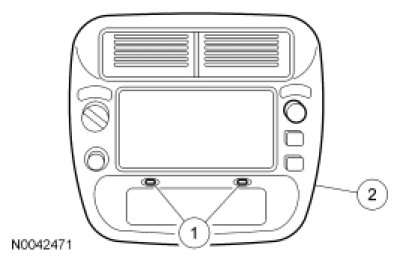

2. Remove the center instrument panel finish panel.

1. Remove the 2 screws.

2. Remove the center instrument panel finish panel.

- Disconnect the electrical connectors.

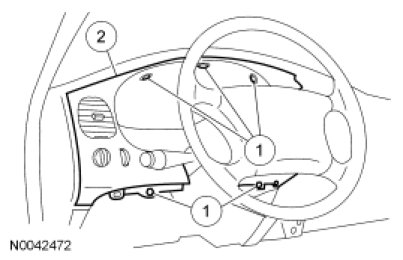

3. Remove the instrument cluster finish panel.

1. Remove the 5 screws.

2. Remove the instrument cluster finish panel.

- Disconnect the electrical connectors.

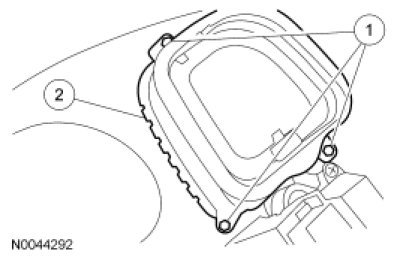

4. Remove the LH instrument panel register.

1. Remove the 3 screws.

2. Remove the driver side register.





5. To install, reverse the removal procedure.
