Flywheel Runout Check

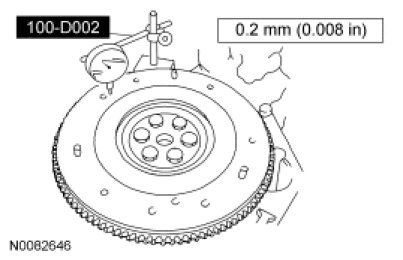

Flywheel Runout Check 1.

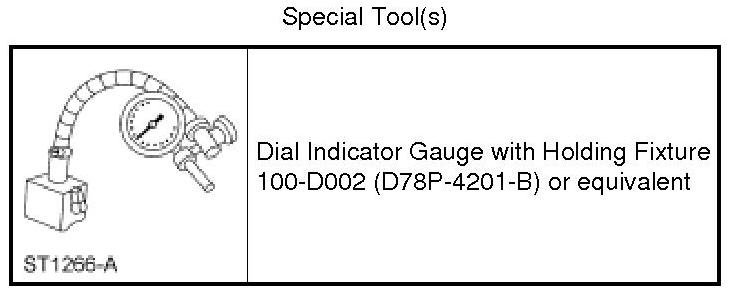

Mount the Dial Indicator Gauge with Holding Fixture so that the indicator contact point rides on the
clutch disc contact surface.
2.
Turn the
flywheel. If the runout exceeds the maximum allowance, install a new flywheel.
