Radiator Grille Opening Panel Reinforcement

Radiator Grille Opening Panel Reinforcement

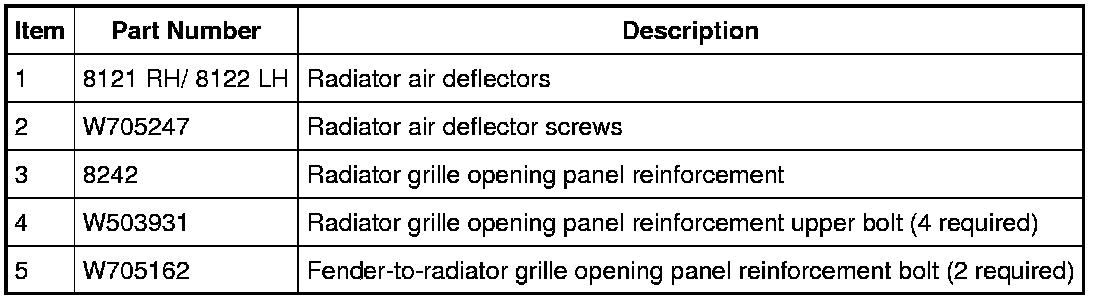

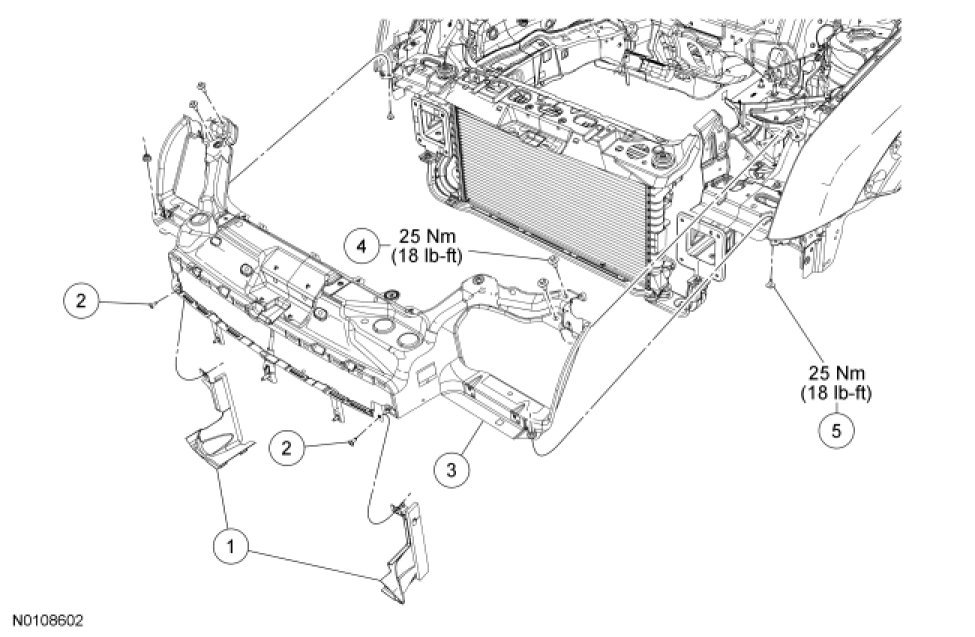

Removal and Installation

1. Remove the front bumper cover. For additional information, refer to Bumper.

2. Remove the headlamps.

3. Remove the hood latch assembly. For additional information, refer to Doors, Hood and Trunk &/or Locks.

4. Remove the LH and RH radiator side air deflector screws and remove the radiator air deflectors.

5. Remove the fender-to-radiator grille opening panel reinforcement bolts.
- To install, tighten to 25 Nm (18 lb-ft).

6. Remove the radiator grille opening panel reinforcement upper bolts.
- To install, tighten to 25 Nm (18 lb-ft).

7. Remove the radiator grille opening panel reinforcement.

8. To install, reverse the removal procedure.
