Oil Separator: Service and Repair

Crankcase Vent Oil Separator

Removal and Installation

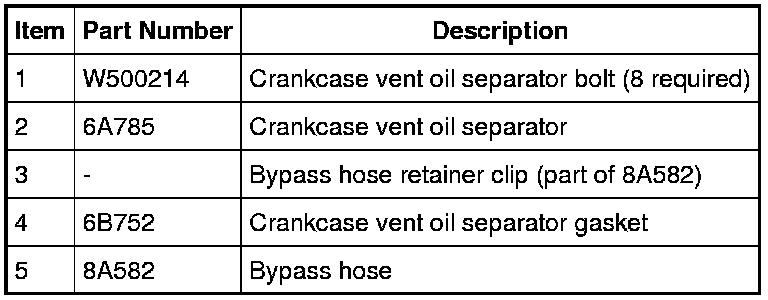

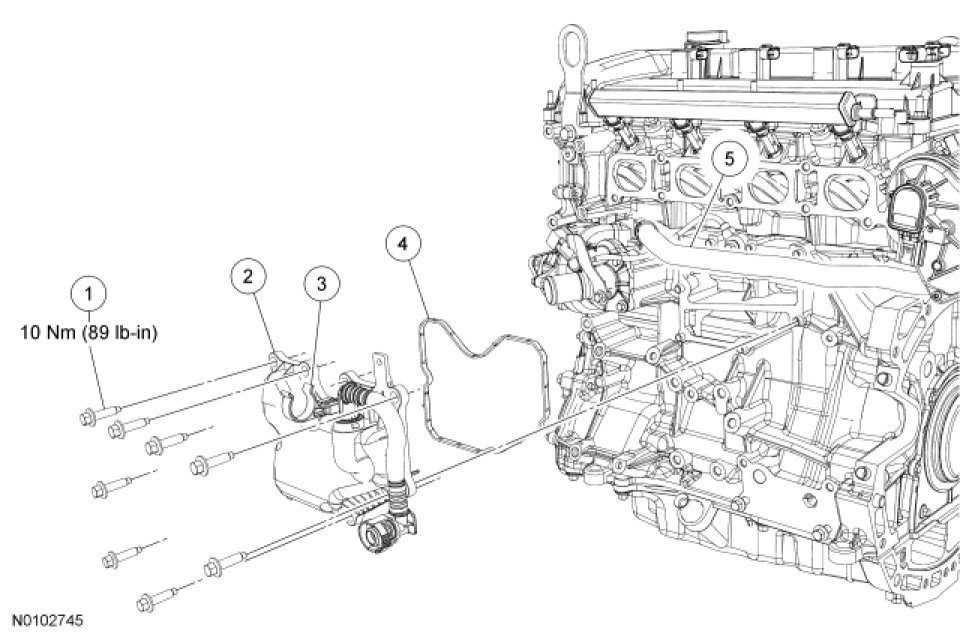

1. Remove the intake manifold. For additional information, refer to Engine.

2. Remove the bypass hose from the retainer clip and position aside.

3. NOTE: Inspect the crankcase vent oil separator gasket for damage and replace if necessary.

Remove the 8 bolts, crankcase vent oil separator and the gasket.

- To install, tighten to 10 Nm (89 lb-in).

4. NOTE: Clean and inspect the gasket mating surfaces.

NOTE: Inspect the crankcase vent oil separator gasket for damage. Replace as necessary.

To install, reverse the removal procedure.
