Sunroof / Moonroof Frame

Roof Opening Panel - Exploded View

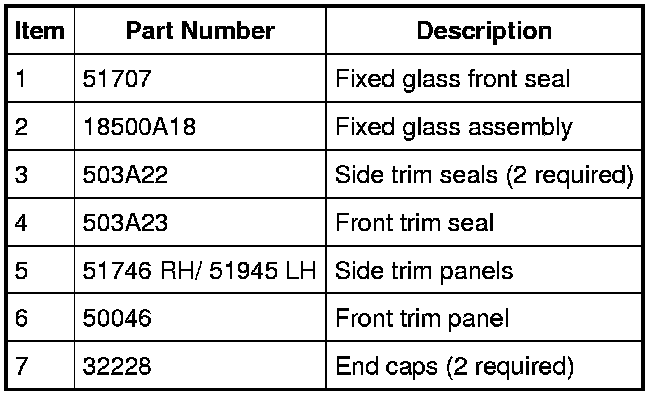

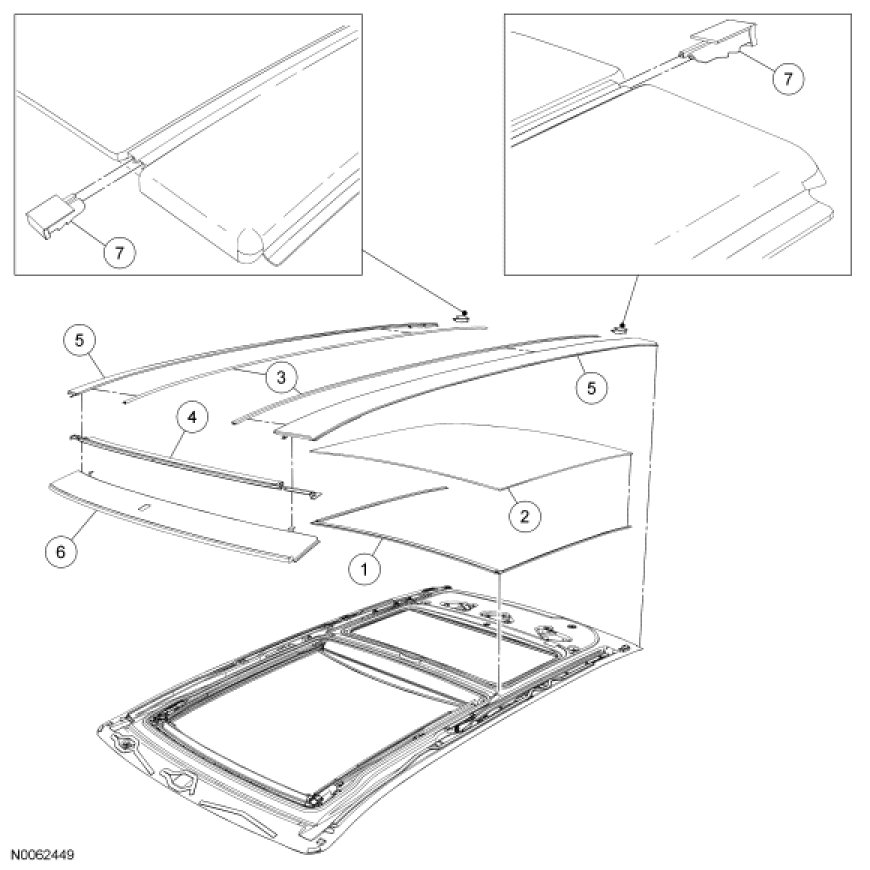

Exterior Trim, Seals, Fixed Glass and End Caps

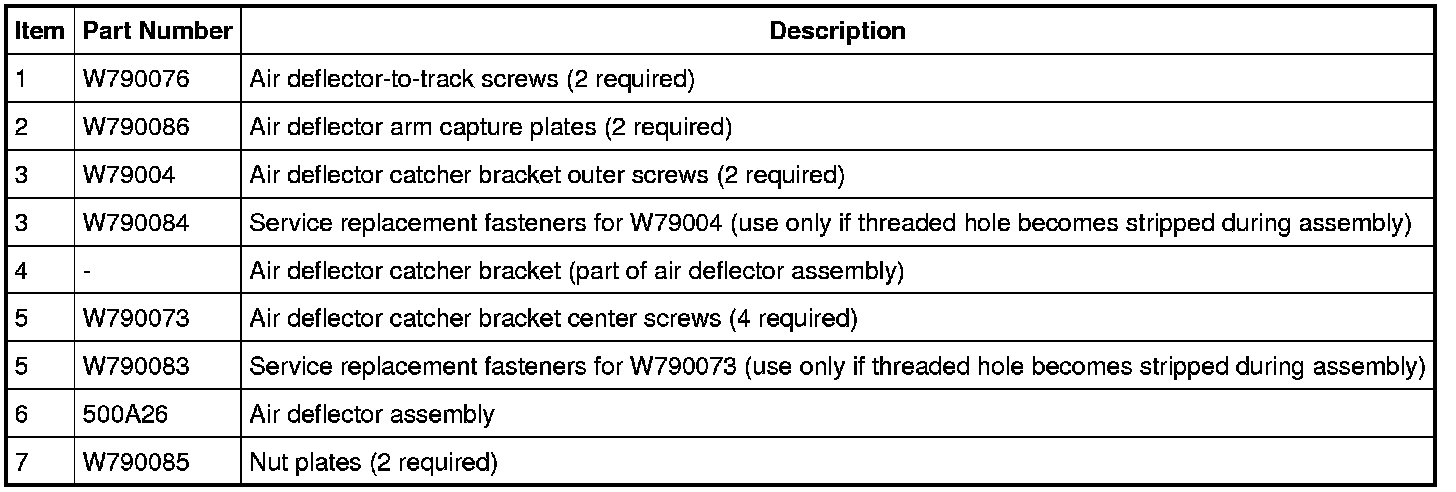

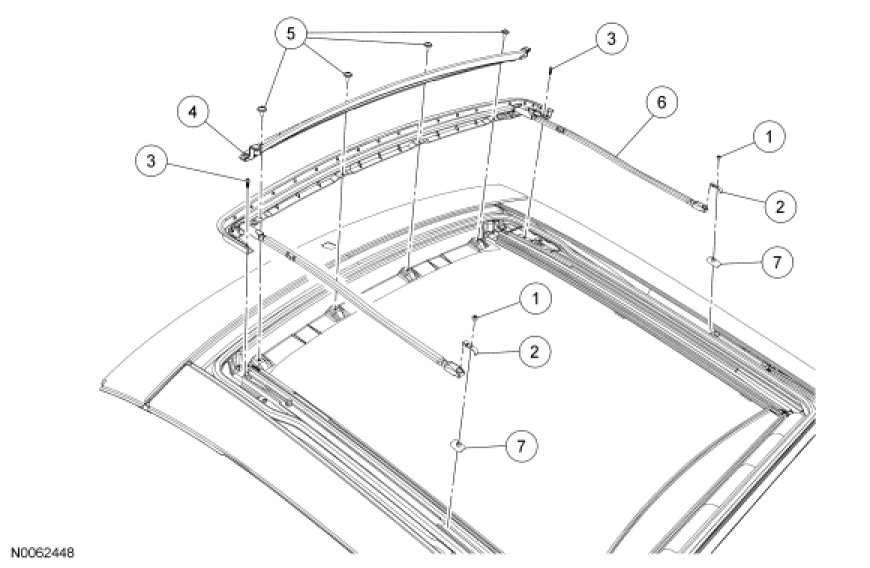

Air Deflector Assembly

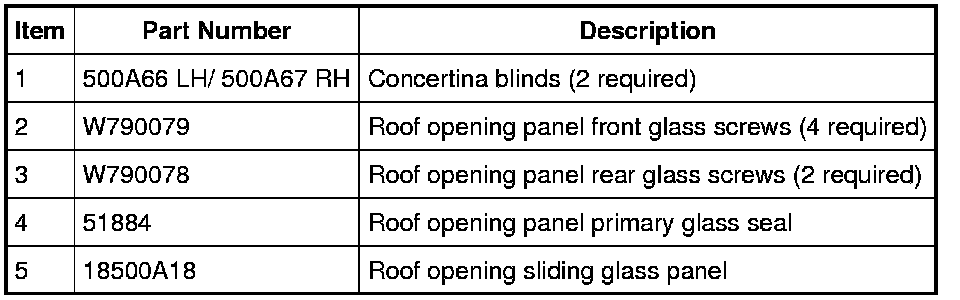

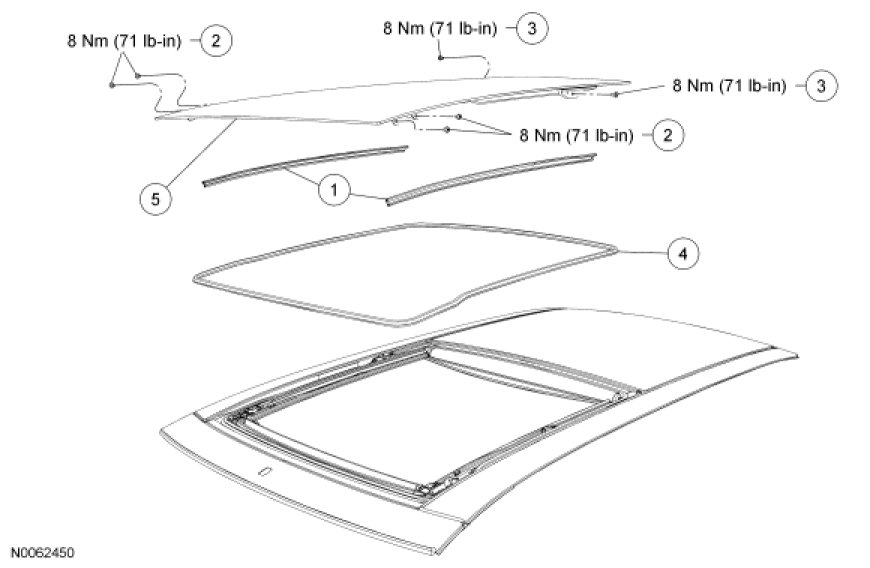

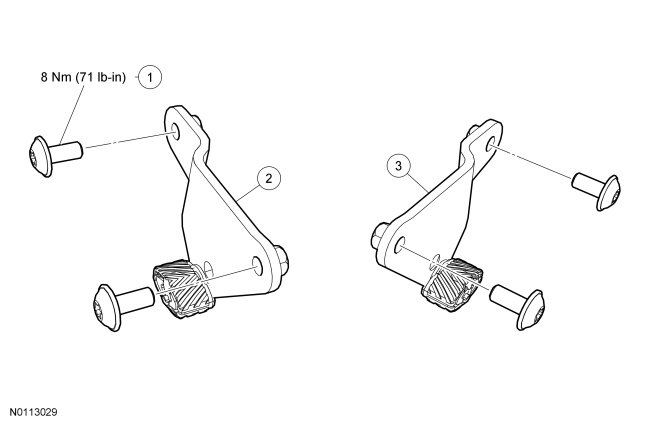

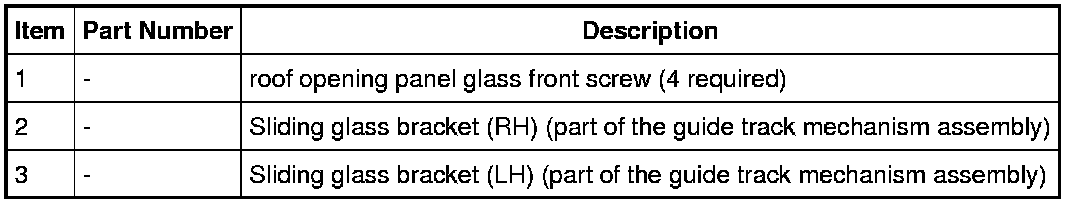

Sliding Glass, Blinds and Primary Seal

NOTE: LH side shown, RH side similar.











Idler Track and Mechanism

NOTE: LH shown, RH similar.

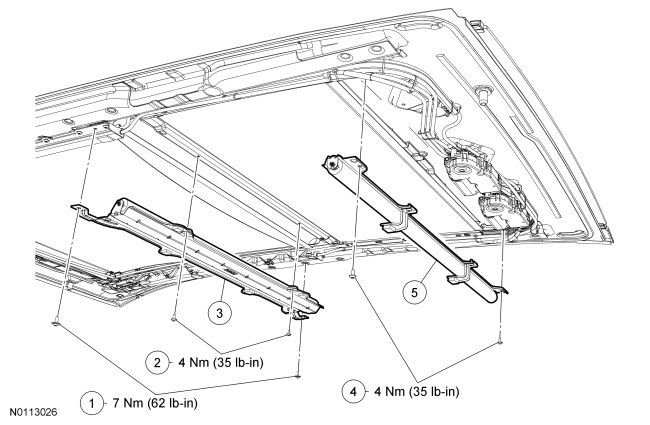

Front and Rear Sunshade Assembly

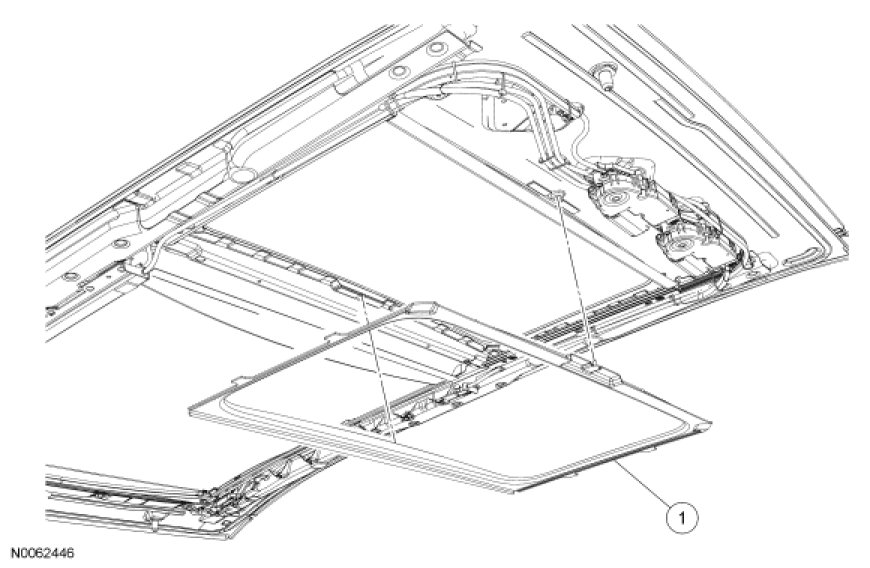

Rear Trim Ring Assembly

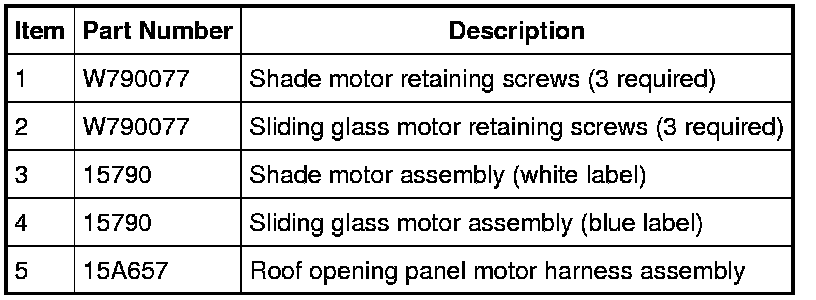

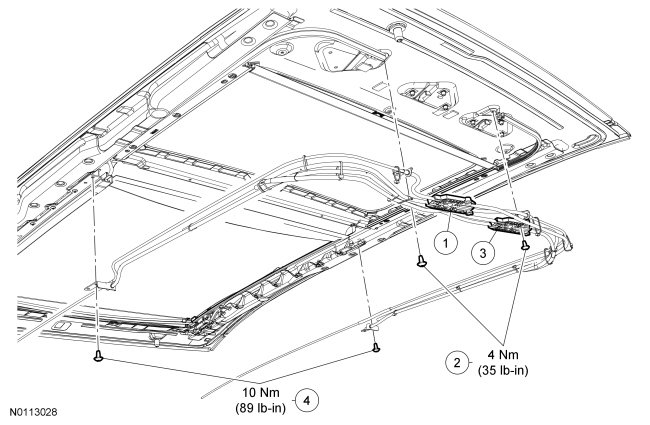

Roof Opening Panel Motor(s) and Electrical









Motor Block and Drive Tube Assembly

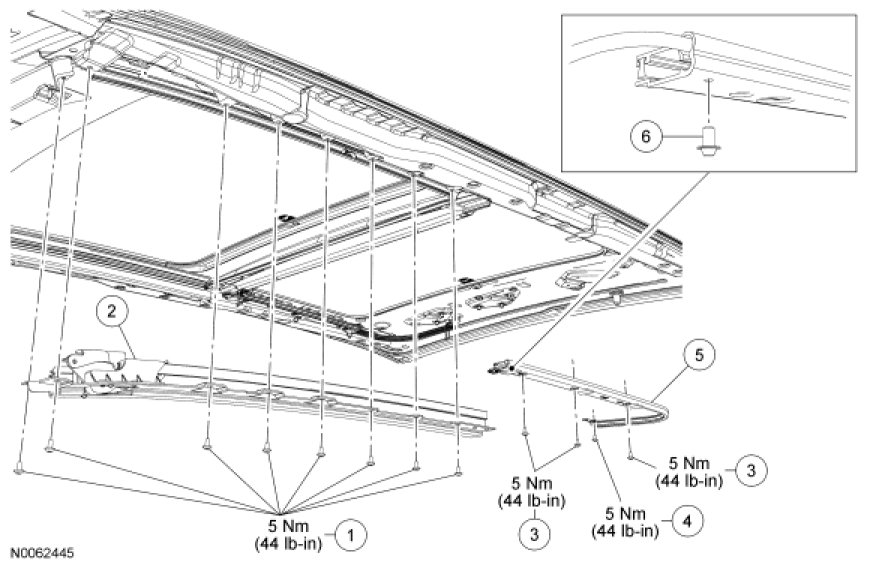

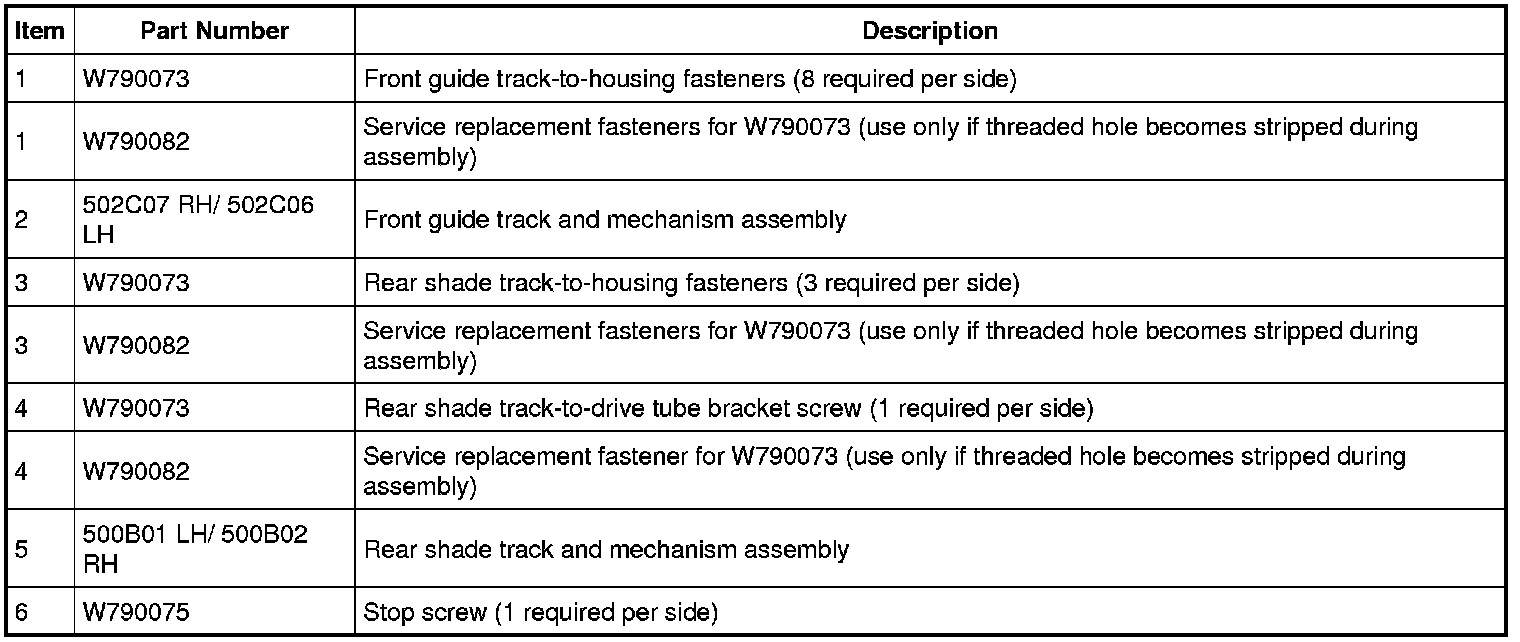

Guide Tracks and Mechanisms

NOTE: LH shown, RH similar.











Front Guide Track Mechanism
