Shift Cable: Service and Repair

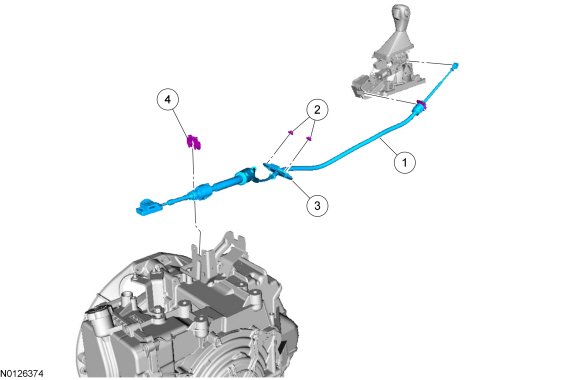

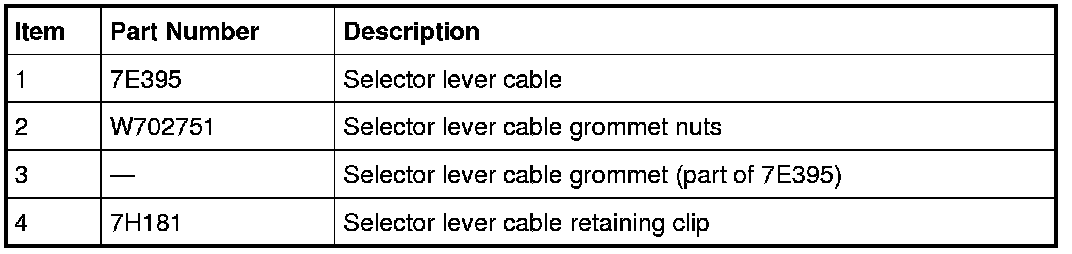

Selector Lever Cable









Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the air cleaner.

3. Remove the air cleaner outlet pipe.

4. Disconnect the selector lever cable end from the manual control lever.





5. Release the 2 tabs, remove the selector lever cable from the selector lever cable bracket and position the cable aside.





6. Remove the floor console.

7. Remove the 2 nuts from the grommet, route the selector lever cable from the engine compartment through the floor and remove the selector lever cable from the passenger compartment.





Installation

1. Install the selector lever cable, position the grommet in place and install the 2 nuts.
- Tighten to 10 Nm (89 lb-in).






2. Install the floor console.

3. Place the selector lever in DRIVE.

4. NOTICE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place. Press the selector lever cable into the selector lever cable bracket and listen for the selector lever cable retainer to click in place. Pull back on the selector lever cable to make sure that the selector lever is locked into the selector lever cable bracket.
Install the selector lever cable in the selector lever cable bracket.






5. Place the manual control lever in DRIVE.
1. Rotate the manual control lever clockwise until it stops.

2. Rotate the manual control lever counterclockwise one detent.






6. Unlock the adjuster.
1. Pry the latch up.

2. Push the lock tab to slide it over.






7. Slide the selector lever cable end forward or backward to align it with the manual control lever.





8. NOTICE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

NOTE: When installing the selector lever cable end, make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud. Pull back on the selector lever cable end to make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud.
With the adjuster locking tab released, connect the selector lever cable end to the manual control lever.






9. Slide the release tab back to lock the adjuster.





10. Install the air cleaner outlet pipe.

11. Install the air cleaner.
