Transaxle Support Insulator - Anti-Roll

Transaxle Support Insulator - Anti-Roll

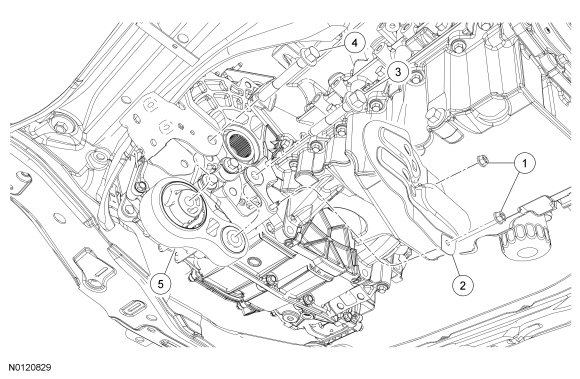

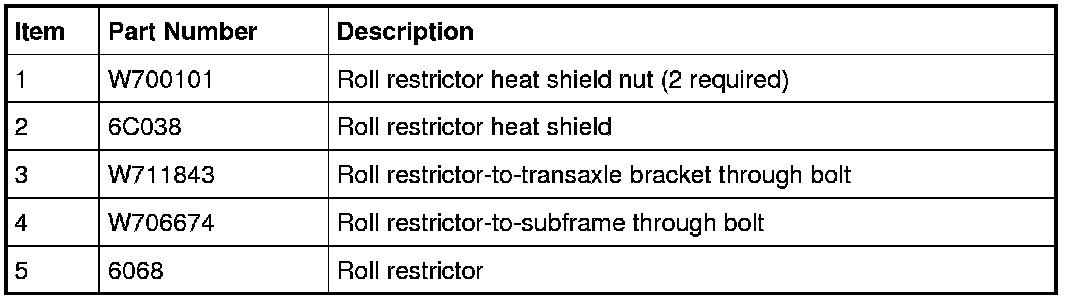

Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the exhaust Y-pipe.

3. Remove the 2 roll restrictor heat shield nuts and the roll restrictor heat shield.





4. Remove the roll restrictor-to-transaxle bracket through bolt and the roll restrictor-to-subframe through bolt and remove the roll restrictor.





Installation

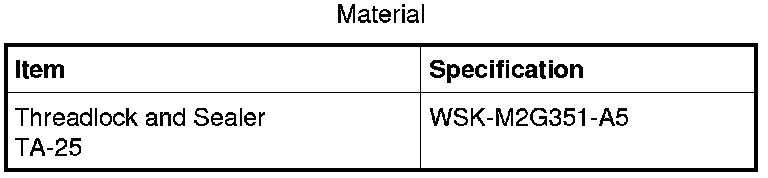

1. Clean the roll restrictor through bolts using a wire brush and apply new threadlock to the threads.

2. Position the roll restrictor in place, install the roll restrictor-to-transaxle bracket through bolt and the roll restrictor-to-subframe through bolt.
- Tighten to 115 Nm (85 lb-ft).






3. Install the roll restrictor heat shield and the roll restrictor heat shield nuts.
- Tighten to 9 Nm (80 lb-in).






4. Install the exhaust Y-pipe.
