Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2011
>>
Edge FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>

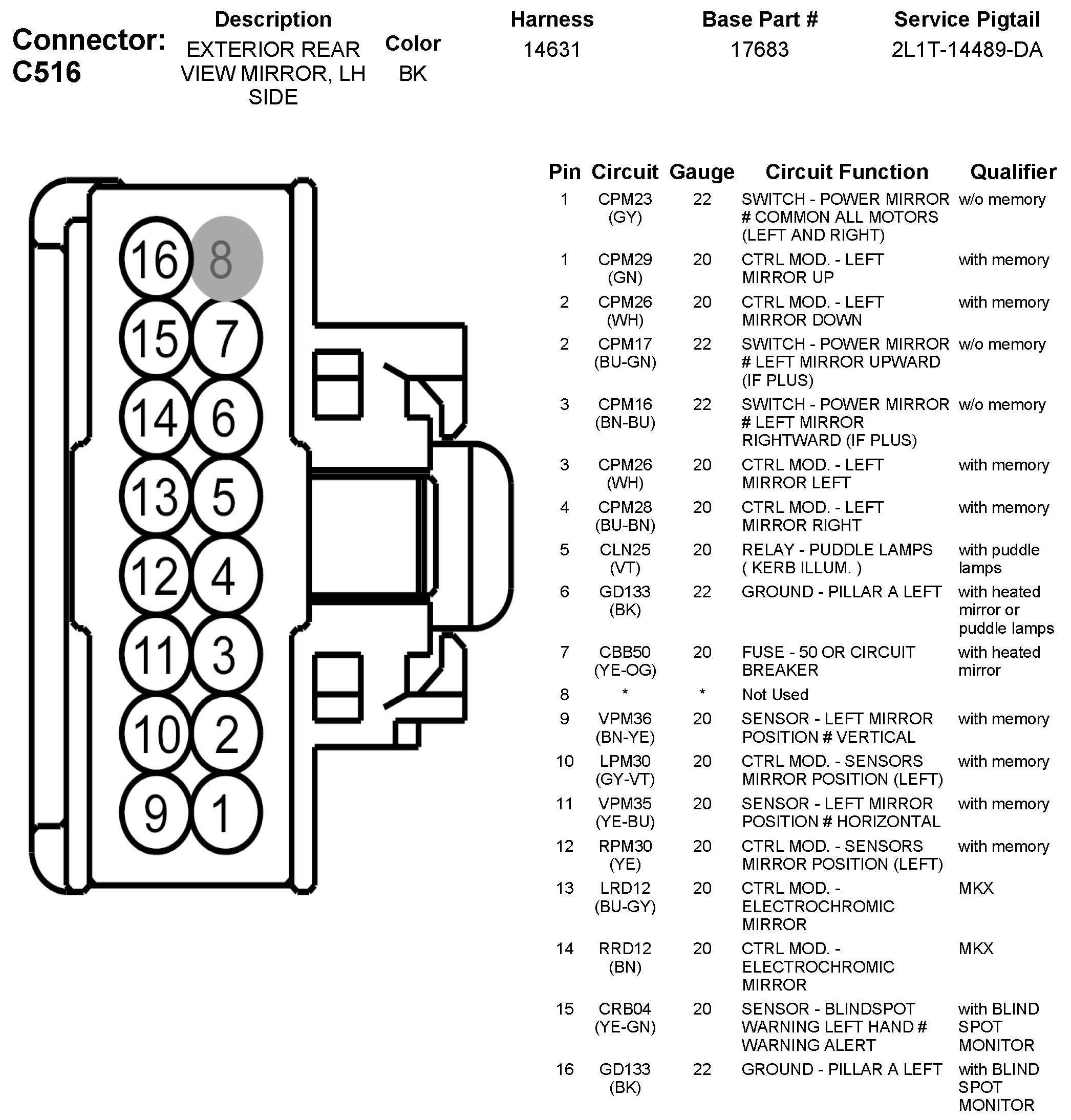

C516 Exterior Rear View Mirror, LH Side
C516 Exterior Rear View Mirror, LH Side
