Automatic Transmission/Transaxle
>>
Valve Body, A/T
>>
Disassembly and Assembly
Disassembly and Assembly

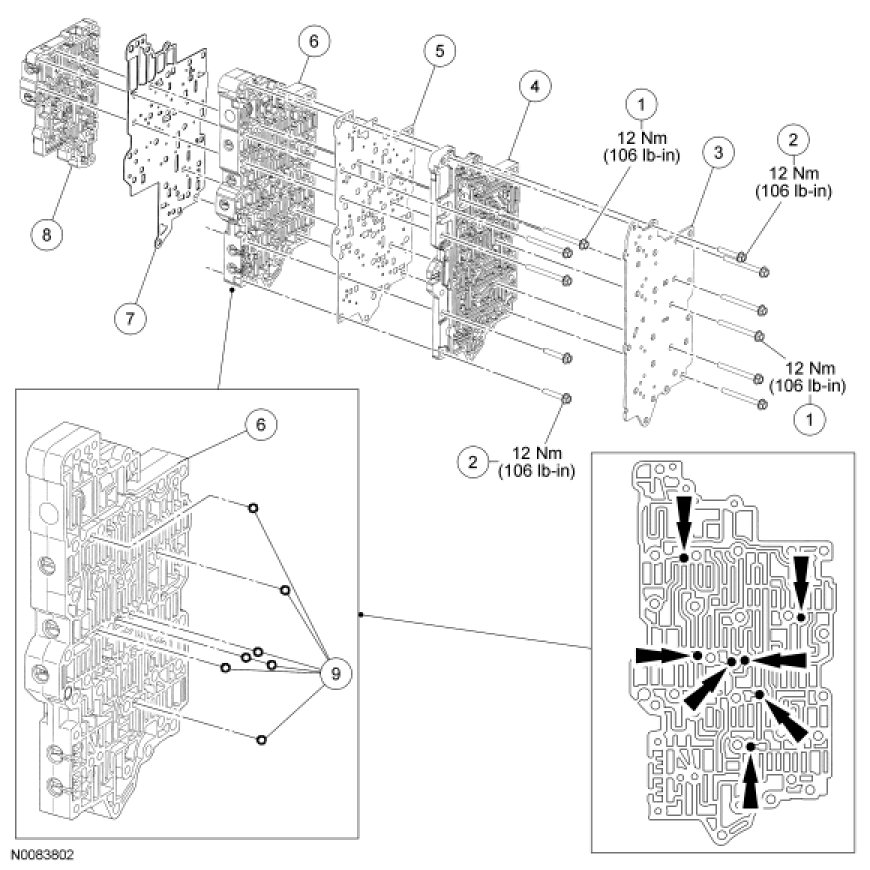

Main Control Valve Body
Valve Body

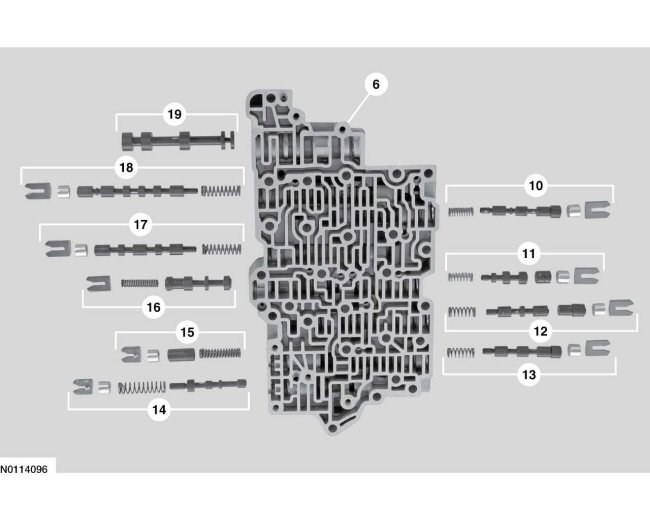

Lower Valve Body
