Instrument Cluster
Instrumentation, Message Center and Warning Chimes
DTC Charts

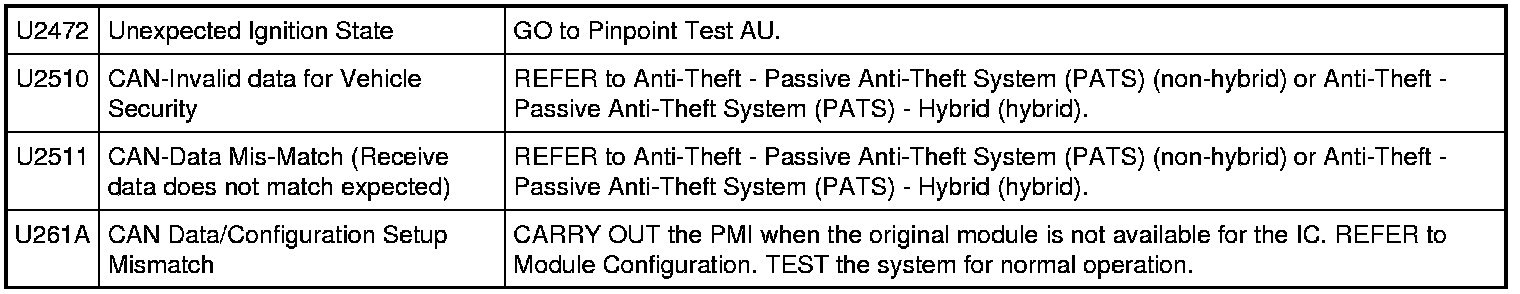

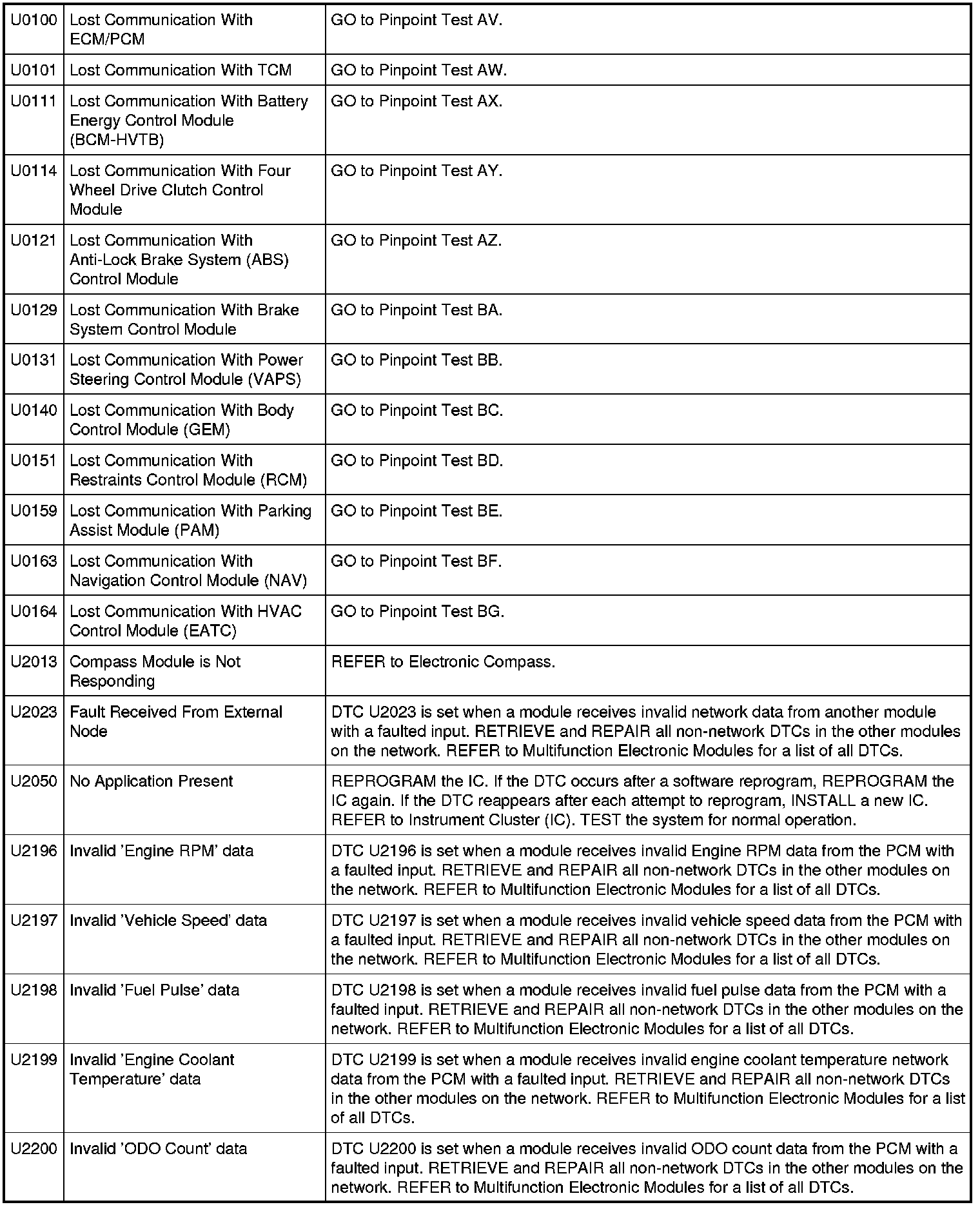

Instrument Cluster (IC) DTC Chart
