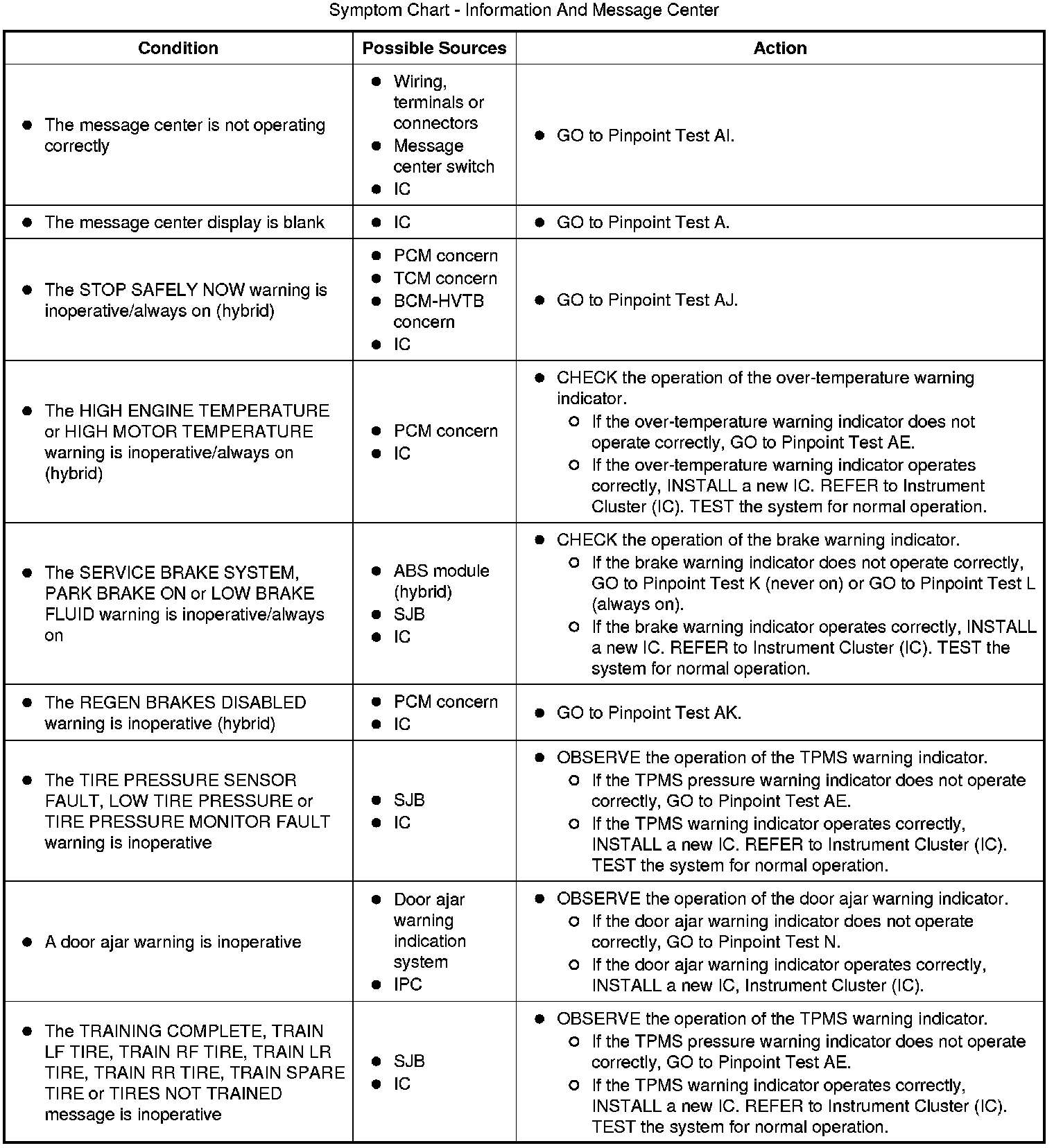

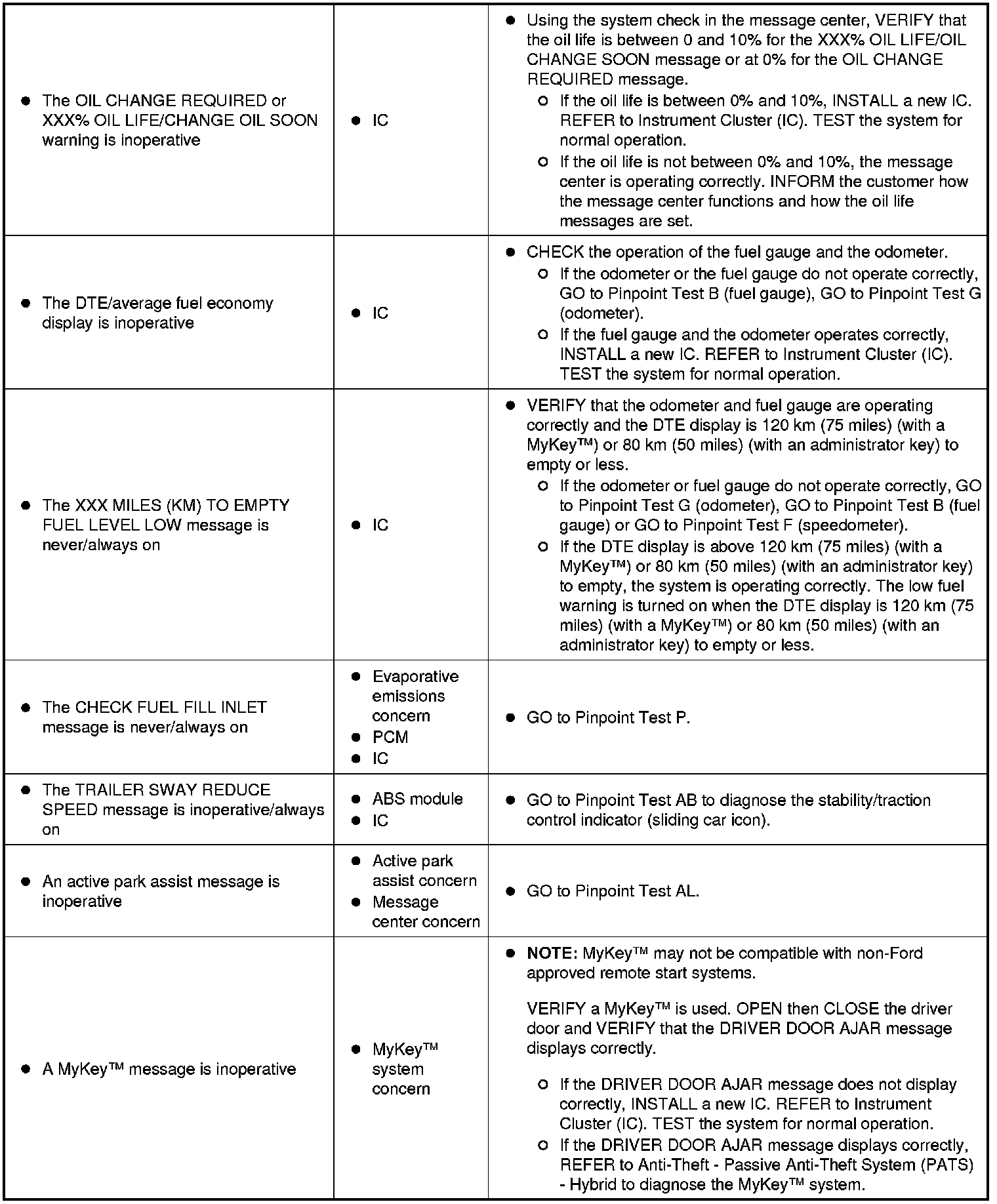

Symptom Chart - Information and Message Center
Instrumentation, Message Center and Warning Chimes
Symptom Chart
