Pinpoint Test U: Intermittent No Medium Speed Controller Area Network (MS-CAN) Communication, Communication Can Be Intermittent
Communications Network
Pinpoint Tests
Pinpoint Test U: Intermittent No Medium Speed Controller Area Network (MS-CAN) Communication, Communication Can Be Intermittently Established
Normal Operation
The Medium Speed Controller Area Network (MS-CAN) uses an unshielded twisted pair cable. In the event that 1 of the 2 network circuits (MS-CAN + or MS-CAN -) becomes open to a module on the network, unreliable network communication to all modules on the network may result.
The following modules communicate with the scan tool using the MS-CAN:
- Audio Control Module (ACM)
- Accessory Protocol Interface Module (APIM) (if equipped)
- Front Controls Interface Module (FCIM) (if equipped)
- Front Display Interface Module (FDIM)
- Global Positioning System Module (GPSM) (if equipped)
- HVAC module
- Instrument Cluster (IC)
- Smart Junction Box (SJB)
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
PINPOINT TEST U: INTERMITTENT NO MS-CAN COMMUNICATION, COMMUNICATION CAN BE INTERMITTENTLY ESTABLISHED
NOTE: Various modules set network DTCs during this test procedure. Clear DTCs from all modules after the diagnostic procedure is completed.
NOTE: Failure to disconnect the battery when instructed will result in false resistance readings. Refer to Battery, Mounting and Cables Battery Disconnect.
-------------------------------------------------
U1 CHECK THE DLC PINS FOR DAMAGE
- Ignition OFF.
- Disconnect the scan tool cable from the DLC.
- Inspect DLC pins 3 and 11 for damage.
- Are DLC pins 3 and 11 OK?
Yes
GO to U2.
No
REPAIR the DLC as necessary. CLEAR the DTCs. REPEAT the network test with the scan tool.
-------------------------------------------------
U2 CHECK THE MS-CAN TERMINATION RESISTANCE
- Disconnect: Negative Battery Cable.

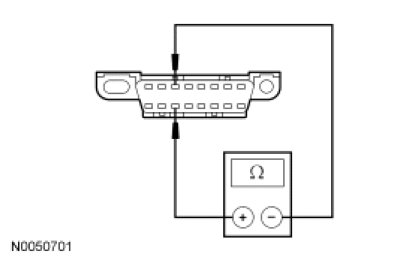

- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance between 54 and 66 ohms?
Yes
GO to U3.
No
GO to Pinpoint Test V. Pinpoint Test V: No Medium Speed Controller Area Network (MS-CAN) Communication, All Modules Are Not Responding
-------------------------------------------------
U3 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and ground; and between the DLC C251-11, circuit VDB07 (VT/OG), harness side and ground.
- Are the resistances greater than 1,000 ohms?
Yes
CONNECT the negative battery cable. GO to U4.
No
GO to Pinpoint Test V. Pinpoint Test V: No Medium Speed Controller Area Network (MS-CAN) Communication, All Modules Are Not Responding
-------------------------------------------------
U4 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO VOLTAGE
- Ignition ON.

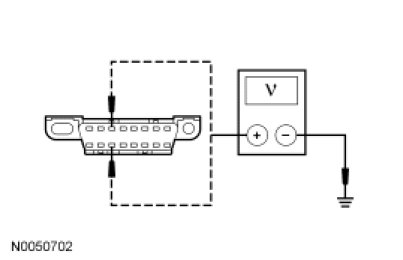

- Measure the voltage between the DLC C251-3, circuit VDB06 (GY/OG), harness side and ground; and between the DLC C251-11, circuit VDB07 (VT/OG), harness side and ground.
- Is the voltage greater than 6 volts?
Yes
REPAIR the circuit. CLEAR the DTCs. REPEAT the network test with the scan tool.
No
GO to U5.
-------------------------------------------------
U5 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE SJB DISABLED
NOTE: When re-running the network test, the network test application must be first closed or the screen display reverts back to the prior run network test results.
- Disconnect: SJB Fuse 5 (10A).
- Enter the following diagnostic mode on the scan tool: Network Test.
- Repeat the network test.
- Do all other modules pass the network test?
Yes
INSTALL the removed fuse. GO to Pinpoint Test Q. Pinpoint Test Q: The Smart Junction Box (SJB) Does Not Respond To The Scan Tool
No
INSTALL the removed fuse. GO to U6.
-------------------------------------------------
U6 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE HVAC MODULE DISABLED
NOTE: When re-running the network test, the network test application must be first closed or the screen display reverts back to the prior run network test results.
- Disconnect: SJB Fuses 37 (10A) and 15 (10A).
- Enter the following diagnostic mode on the scan tool: Network Test.
- Repeat the network test.
- Do all other modules pass the network test?
Yes
INSTALL the removed fuses. GO to Pinpoint Test L. Pinpoint Test L: The HVAC Module Does Not Respond To The Scan Tool
No
INSTALL the removed fuses. GO to U7.
-------------------------------------------------
U7 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE ACM DISABLED
NOTE: When re-running the network test, the network test application must be first closed or the screen display reverts back to the prior run network test results.
- Disconnect: SJB Fuse 39 (20A).
- Enter the following diagnostic mode on the scan tool: Network Test.
- Repeat the network test.
- Do all other modules pass the network test?
Yes
INSTALL the removed fuse. GO to Pinpoint Test P. Pinpoint Test P: The Audio Control Module (ACM) Does Not Respond To The Scan Tool
No
INSTALL the removed fuse.
If the vehicle is equipped with an Accessory Protocol Interface Module (APIM), INSTALL the removed fuse. GO to U8.
If the vehicle is not equipped with an APIM, INSTALL the removed fuse. GO to U9.
-------------------------------------------------
U8 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE APIM DISABLED
NOTE: When re-running the network test, the network test application must be first closed or the screen display reverts back to the prior run network test results.
- Disconnect: SJB Fuse 3 (15A).
- Enter the following diagnostic mode on the scan tool: Network Test.
- Repeat the network test.
- Do all other modules pass the network test?
Yes
INSTALL the removed fuse. GO to Pinpoint Test R. Pinpoint Test R: The Accessory Protocol Interface Module (APIM) Does Not Respond To The Scan Tool
No
INSTALL the removed fuse. GO to U9.
-------------------------------------------------
U9 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE FCIM, FDIM AND/OR GPSM DISABLED
NOTE: When re-running the network test, the network test application must be first closed or the screen display reverts back to the prior run network test results.
- Disconnect: SJB Fuse 14 (10A).
- Enter the following diagnostic mode on the scan tool: Network Test.
- Repeat the network test.
- Do all other modules pass the network test?
Yes
INSTALL the removed fuse.
For vehicles equipped with an FDIM only, INSTALL the removed fuse. GO to Pinpoint Test N. Pinpoint Test N: The Front Display Interface Module (FDIM) Does Not Respond To The Scan Tool
For vehicles also equipped with an FCIM and/or a GPSM, INSTALL the removed fuse. GO to U10.
No
INSTALL the removed fuse. GO to U13.
-------------------------------------------------
U10 VERIFY VEHICLE EQUIPMENT - FCIM
- Inspect the vehicle for an FCIM.
- Is the vehicle equipped with an FCIM?
Yes
GO to U11.
No
GO to U12.
-------------------------------------------------
U11 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE FCIM DISCONNECTED
NOTE: When re-running the network test, the network test application must be first closed or the screen display reverts back to the prior run network test results.
- Disconnect: FCIM C2402.
- Enter the following diagnostic mode on the scan tool: Network Test.
- Repeat the network test.
- Do all other modules pass the network test?
Yes
CONNECT the FCIM. GO to Pinpoint Test O. Pinpoint Test O: The Front Controls Interface Module (FCIM) Does Not Respond To The Scan Tool
No
CONNECT the FCIM. GO to U12.
-------------------------------------------------
U12 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE GPSM DISCONNECTED
NOTE: When re-running the network test, the network test application must be first closed or the screen display reverts back to the prior run network test results.
- Disconnect: GPSM C2300.
- Enter the following diagnostic mode on the scan tool: Network Test.
- Repeat the network test.
- Do all other modules pass the network test?
Yes
CONNECT the GPSM. GO to Pinpoint Test M. Pinpoint Test M: The Global Positioning System Module (GPSM) Does Not Respond To The Scan Tool
No
CONNECT the GPSM. GO to Pinpoint Test N. Pinpoint Test N: The Front Display Interface Module (FDIM) Does Not Respond To The Scan Tool
-------------------------------------------------
U13 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE IC DISABLED
NOTE: When re-running the network test, the network test application must be first closed or the screen display reverts back to the prior run network test results.
- Disconnect: SJB Fuses 26 (10A), 29 (5A) and 43 (10A).
- Enter the following diagnostic mode on the scan tool: Network Test.
- Repeat the network test.
- Do all other modules pass the network test?
Yes
INSTALL the removed fuses. GO to Pinpoint Test C. Pinpoint Test C: The Instrument Cluster (IC) Does Not Respond To The Scan Tool
No
INSTALL the removed fuses. An intermittent fault is not present. GO to Pinpoint Test V. Pinpoint Test V: No Medium Speed Controller Area Network (MS-CAN) Communication, All Modules Are Not Responding
-------------------------------------------------
