Pinpoint Test E: The High Beams Are Always On
Headlamps
Pinpoint Tests
Pinpoint Test E: The High Beams Are Always On
Refer to Wiring Diagram Set 85 (Escape/Mariner, Escape Hybrid/Mariner Hybrid), Headlamps/Autolamps for schematic and connector information. Diagrams By Number
Normal Operation
The Smart Junction Box (SJB) sends voltage signals to the multifunction switch to monitor the high beam and flash-to-pass requests. When the multifunction switch is placed in the FLASH-TO-PASS or HIGH BEAM position, the voltage signal is routed to ground. When the SJB detects a request for flash-to-pass or high beams (when the low beams are on), the SJB energizes the high beam relay (integrated into the SJB), which routes voltage to the headlamps.
- DTC B1510 (Flash To Pass Switch Circuit Short to Ground) - an on-demand DTC that sets when the SJB detects a short to ground from the flash-to-pass request input circuit.
- DTC B2A23 (High Beam Input Circuit Short to Ground) - an on-demand DTC that sets when the SJB detects a short to ground from the high beam request input circuit.
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Multifunction switch
- SJB
PINPOINT TEST E: THE HIGH BEAMS ARE ALWAYS ON
NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
-------------------------------------------------
E1 CHECK FOR MULTIFUNCTION SWITCH INPUT DTCs
- Review the DTCs retrieved from the SJB self-test.
- Is DTC B1510 or DTC B2A23 present?
Yes
GO to E2.
No
GO to E4.
-------------------------------------------------
E2 CHECK THE MULTIFUNCTION SWITCH
- Ignition OFF.
- Disconnect: Multifunction Switch C202.
- Ignition ON.
- Do the high beams continue to illuminate?
Yes
GO to E3.
No
INSTALL a new multifunction switch. REFER to Steering Column Switches Steering Column Multifunction Switch. CLEAR the DTCs. REPEAT the self-test.
-------------------------------------------------
E3 CHECK THE HIGH BEAM REQUEST AND THE FLASH-TO-PASS REQUEST INPUT CIRCUITS FOR A SHORT TO GROUND
- Ignition OFF.
- Disconnect: SJB C2280b.

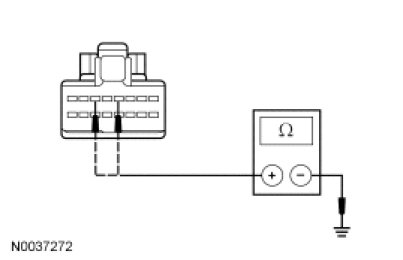

- Measure the resistance between the multifunction switch C202-6, circuit CLF02 (GY/BN), harness side and ground; and between the multifunction switch C202-4, circuit CLF27 (GN/BN), harness side and ground.
- Are the resistances greater than 10,000 ohms?
Yes
GO to E5.
No
REPAIR the circuit in question for a short to ground. CLEAR the DTCs. REPEAT the self-test.
-------------------------------------------------
E4 CHECK THE SJB HIGH BEAM OUTPUT CIRCUIT FOR A SHORT TO VOLTAGE
- Ignition OFF.
- Disconnect: SJB C2280e.
- Ignition ON.
- Do the high beams continue to illuminate?
Yes
REPAIR circuit CLF08 (YE/VT) for a short to voltage. TEST the system for normal operation.
No
GO to E5.
-------------------------------------------------
E5 CHECK FOR CORRECT SJB OPERATION
- Disconnect all the SJB connectors.
- Check for:
- corrosion
- damaged pins
- pushed-out pins
- Connect all the SJB connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
Yes
INSTALL a new SJB. REFER to Multifunction Electronic Modules Service and Repair. TEST the system for normal operation.
No
The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
-------------------------------------------------
