Seals and Gaskets: Service and Repair

Halfshaft Seal













Removal and Installation

NOTICE: New halfshaft oil seals should be installed any time the halfshafts are removed. Failure to install new halfshaft seals may result in transmission oil leak(s).

NOTE: RH intermediate shaft oil seal shown, LH halfshaft oil seal similar.

1. Remove the RH intermediate shaft or LH halfshaft. For additional information, refer to Front Drive Halfshafts Intermediate Shaft and [1][2]Front Drive Halfshafts.

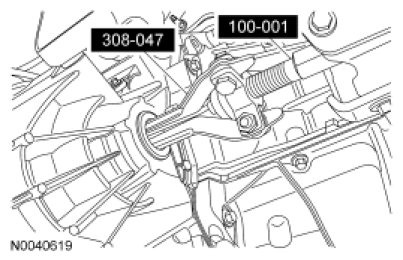

2. Using the Slide Hammer with the Bearing Cup Remover, remove the RH intermediate shaft oil seal or the LH halfshaft oil seal.





Installation

1. Using the Output Shaft Seal Installer, install the halfshaft oil seal.





2. NOTICE: Make sure to use the seal protector when installing the RH intermediate shaft and the LH halfshaft. Failure to use the seal protector may result in transmission oil leaks.

Install the RH intermediate shaft or LH halfshaft. For additional information, refer to Front Drive Halfshafts Intermediate Shaft and [1][2]Front Drive Halfshafts.
