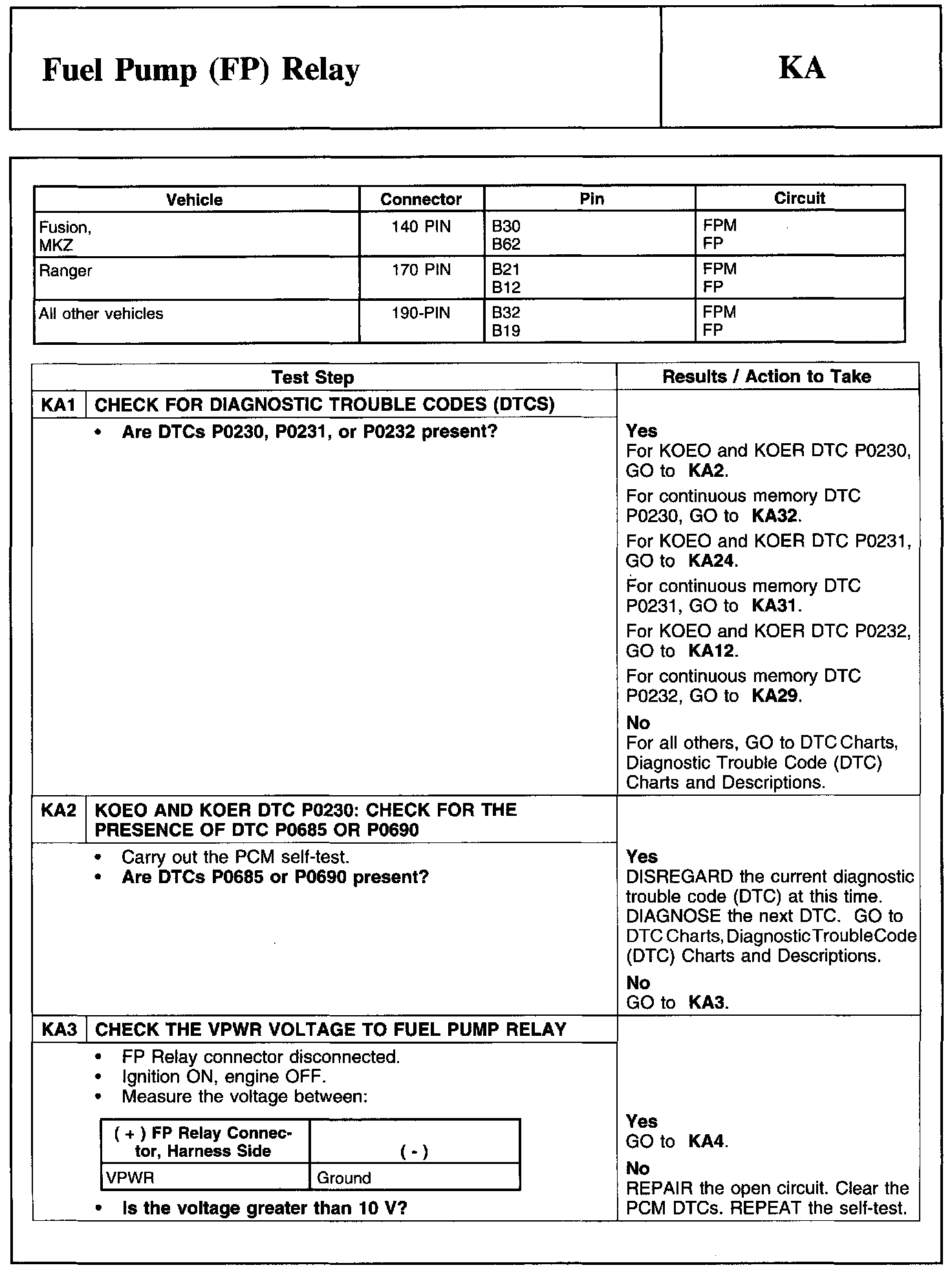

Test KA: Fuel Pump (FP) Relay

PINPOINT TEST KA: FUEL PUMP (FP) RELAY

Fuel Pump (FP) Relay Connector:

Fuel Pump (FP) Relay Connector, Inertia Fuel Shutoff (IFS) Switch Connector And Powertrain Control Module (PCM) Connector:

KA1-KA3:

KA4-KA9:

KA10-KA14:

KA15-KA19:

KA20-KA23:

KA24-KA28:

KA29-KA30:

KA31-KA32:

KA33-KA34:
