Compressor To Condenser Discharge Line

Compressor to Condenser Discharge Line

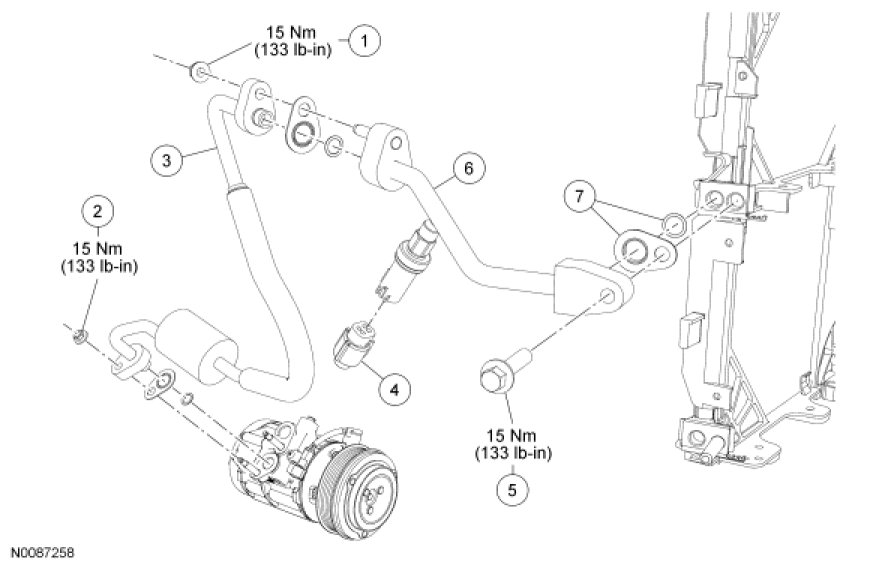

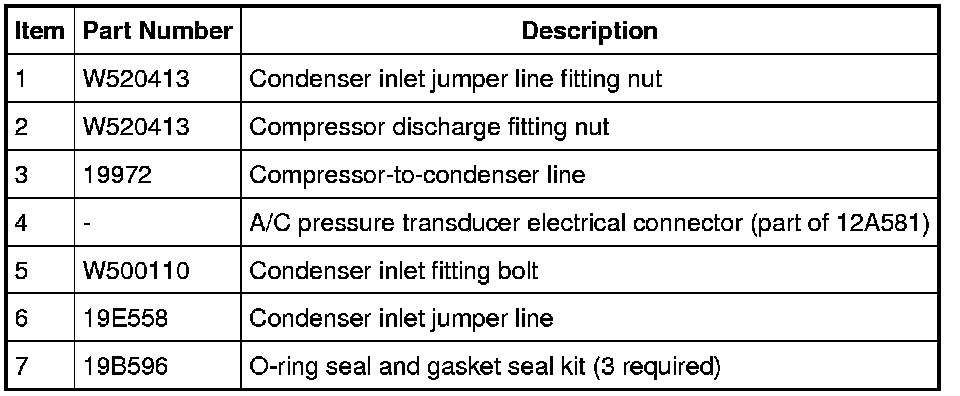

Removal and Installation

1. Recover the refrigerant. For additional information, refer to Climate Control System - General Information and Diagnostics Air Conditioning (A/C) System Recovery, Evacuation and Charging.

2. Remove the compressor discharge fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.

- To install, tighten to 15 Nm (133 lb-in).

3. Remove the condenser inlet jumper line fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.

- To install, tighten to 15 Nm (133 lb-in).

4. Remove the compressor-to-condenser discharge line.

5. If removing the condenser inlet jumper line, remove the RH headlamp assembly. For additional information, refer to Exterior Lighting Service and Repair.

6. If removing the condenser inlet jumper line, disconnect the A/C pressure transducer electrical connector.

7. If removing the condenser inlet jumper line, remove the condenser inlet fitting bolt and disconnect the fitting.
- Discard the O-ring and gasket seals.

- To install, tighten to 15 Nm (133 lb-in).

8. Remove the condenser inlet jumper line.

9. To install, reverse the removal procedure.
- Install new gasket seals and O-ring seals.

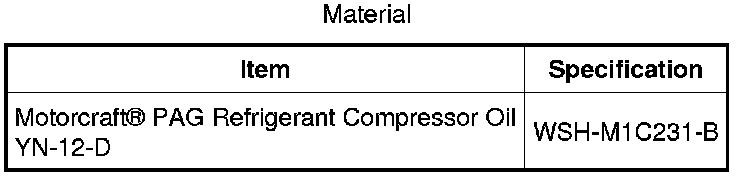

- Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, refer to Climate Control System - General Information and Diagnostics Climate Control System.
