Register - Driver Side

Register - Driver Side

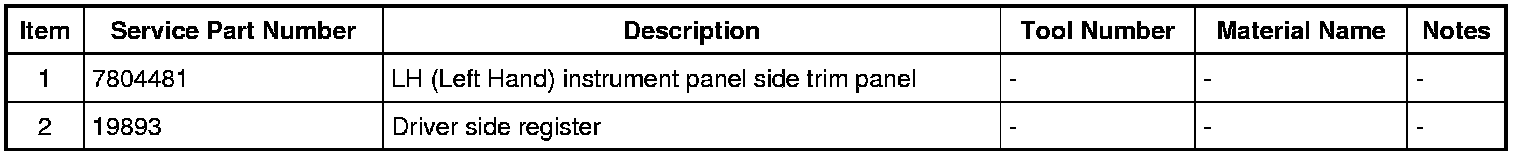

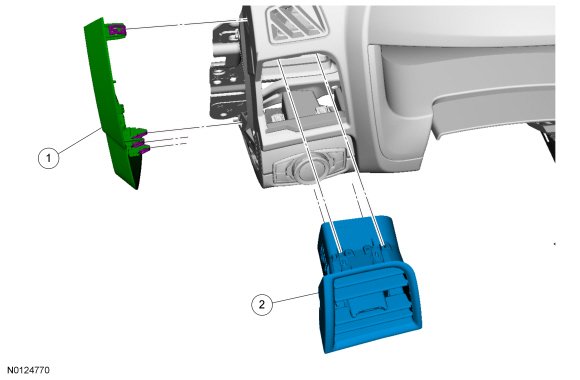

Exploded View










Removal

1. Remove the LH (Left Hand) instrument panel side trim panel.

- Pull outward to release the 4 retaining clips.

2. Remove the driver side register.

Installation

1. To install, reverse the removal procedure.
