Register - Passenger Side

Register - Passenger Side

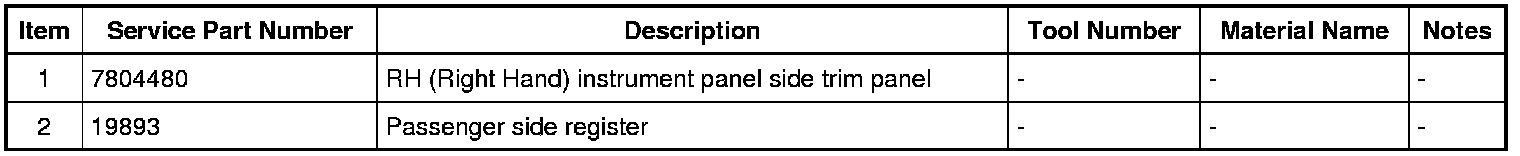

Exploded View










Removal

1. Remove the RH (Right Hand) instrument panel side trim panel.

- Pull outward to release the 4 retaining clips.

2. Remove the passenger side register.

Installation

1. To install, reverse the removal procedure.
