Register - Center

Register - Center

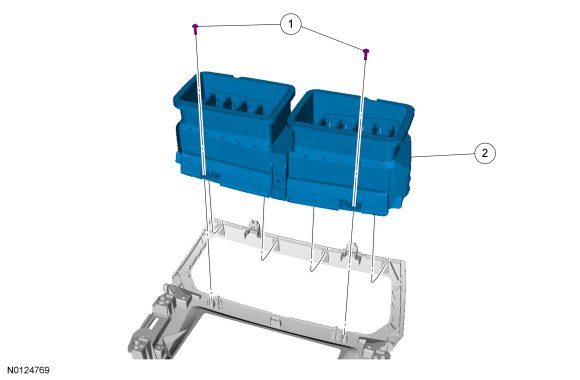

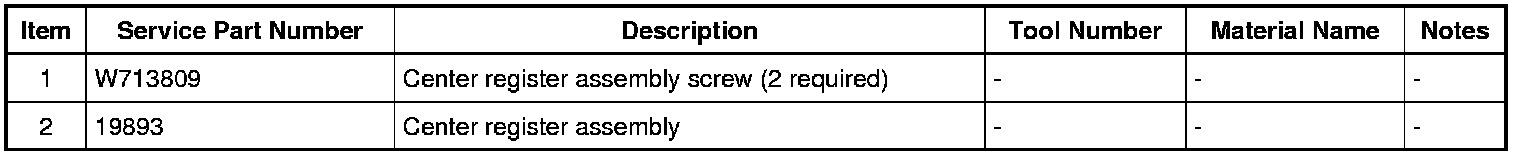

Exploded View










Removal

1. Remove the FCIM (Front Controls Interface Module). REFER to Front Controls Interface Module (FCIM) Front Controls Interface Module (FCIM).

2. Remove the 2 center register assembly screws.

3. Remove the center register assembly.

Installation

1. To install, reverse the removal procedure.
