Fuse
>>
Application and ID
>>

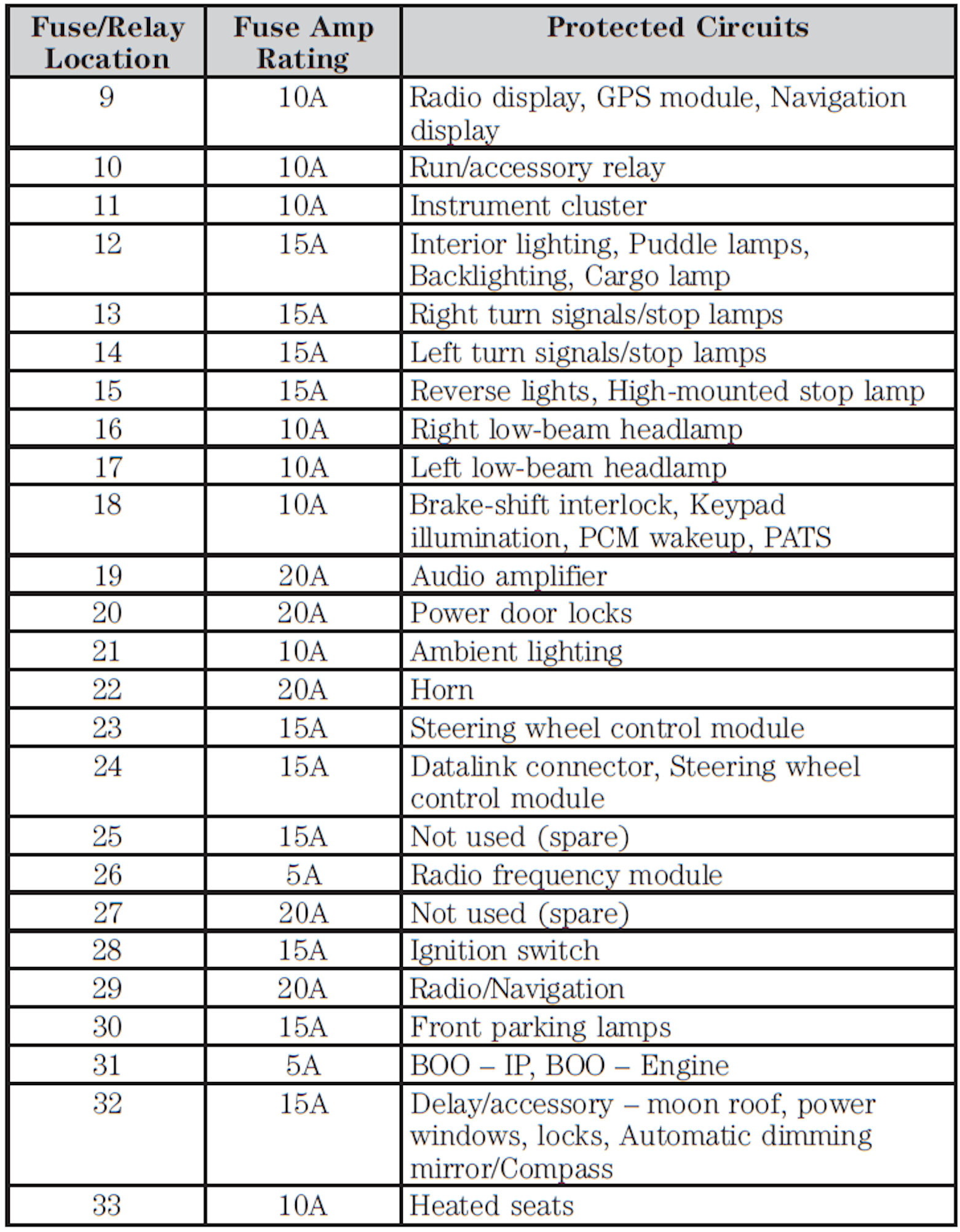

Fuse Panel
Fuse Panel
The fuse panel is located under the right-hand side of the instrument panel.
