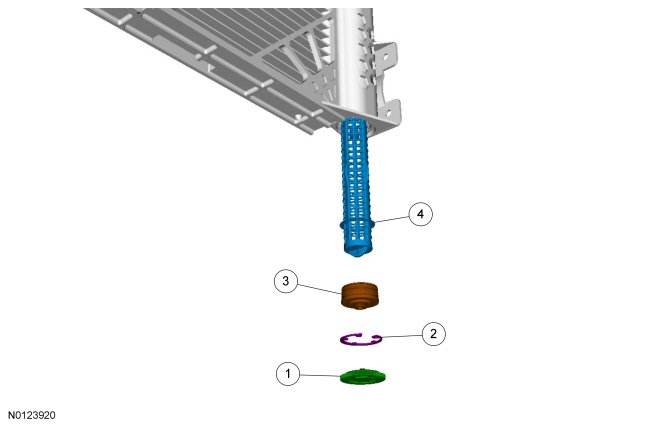

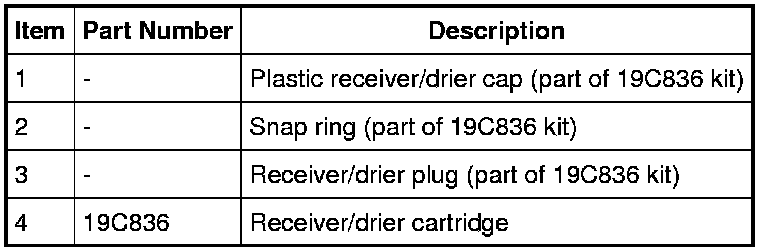

Air Conditioning - Exploded View

Air Conditioning - Exploded View

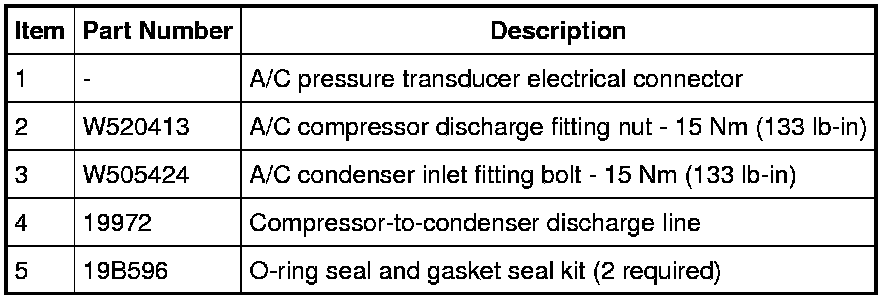

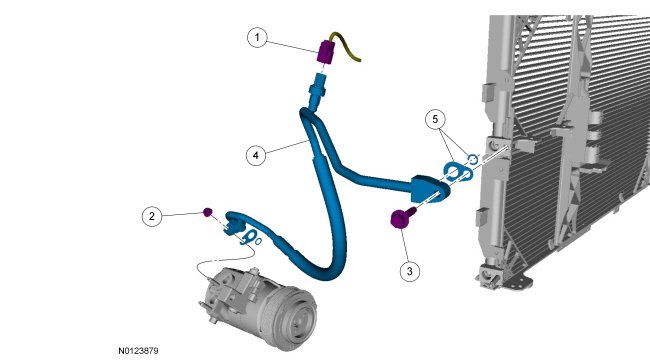

Compressor-to-Condenser Discharge Line

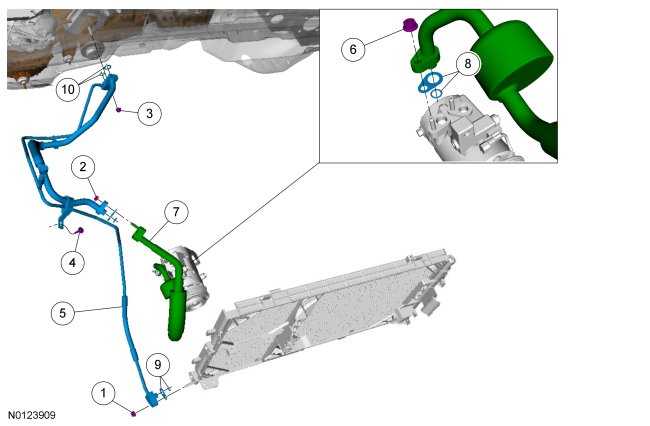

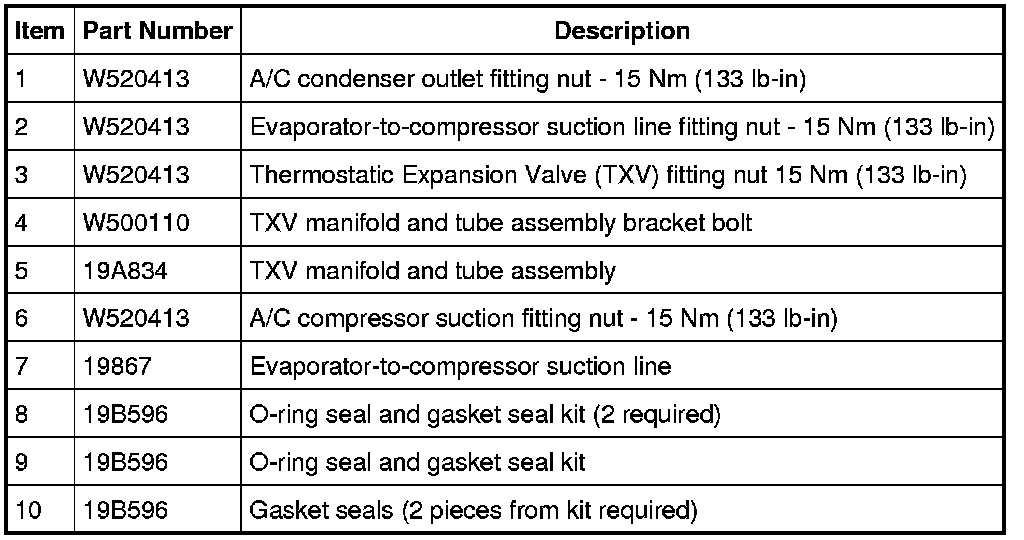

Thermostatic Expansion Valve (TXV) Manifold-and-Tube and Evaporator-to-Compressor Suction Line

















1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
