Ford
>>
2011
>>
F 150 2WD V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Marker Lamp
>>

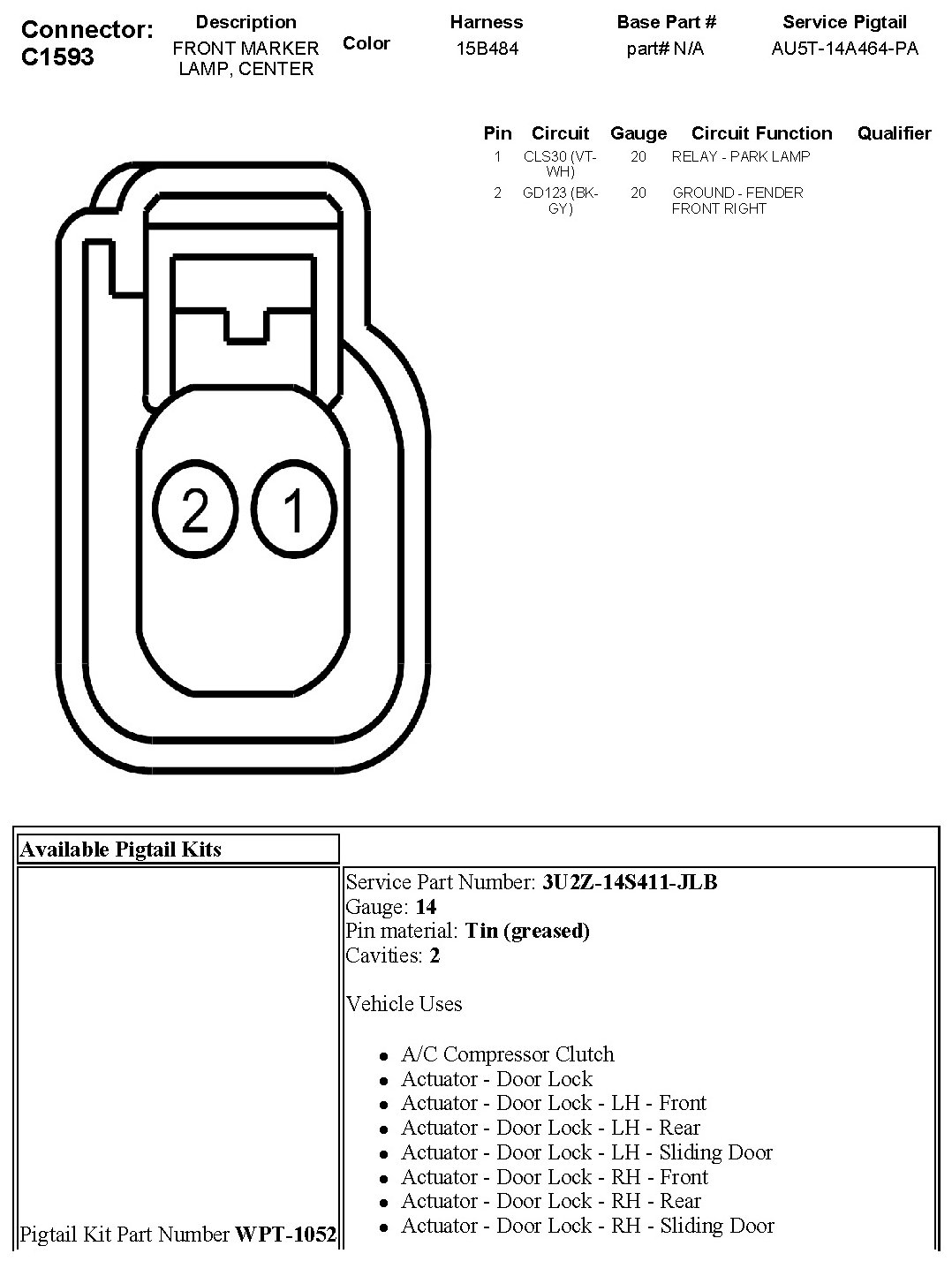

C1593 Front Marker Lamp, Center
C1593 Front Marker Lamp, Center
