Home >> Ford >> 2011 >> F 150 2WD V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> C3265C Dual Climate Controlled Seat Module (DCSM)

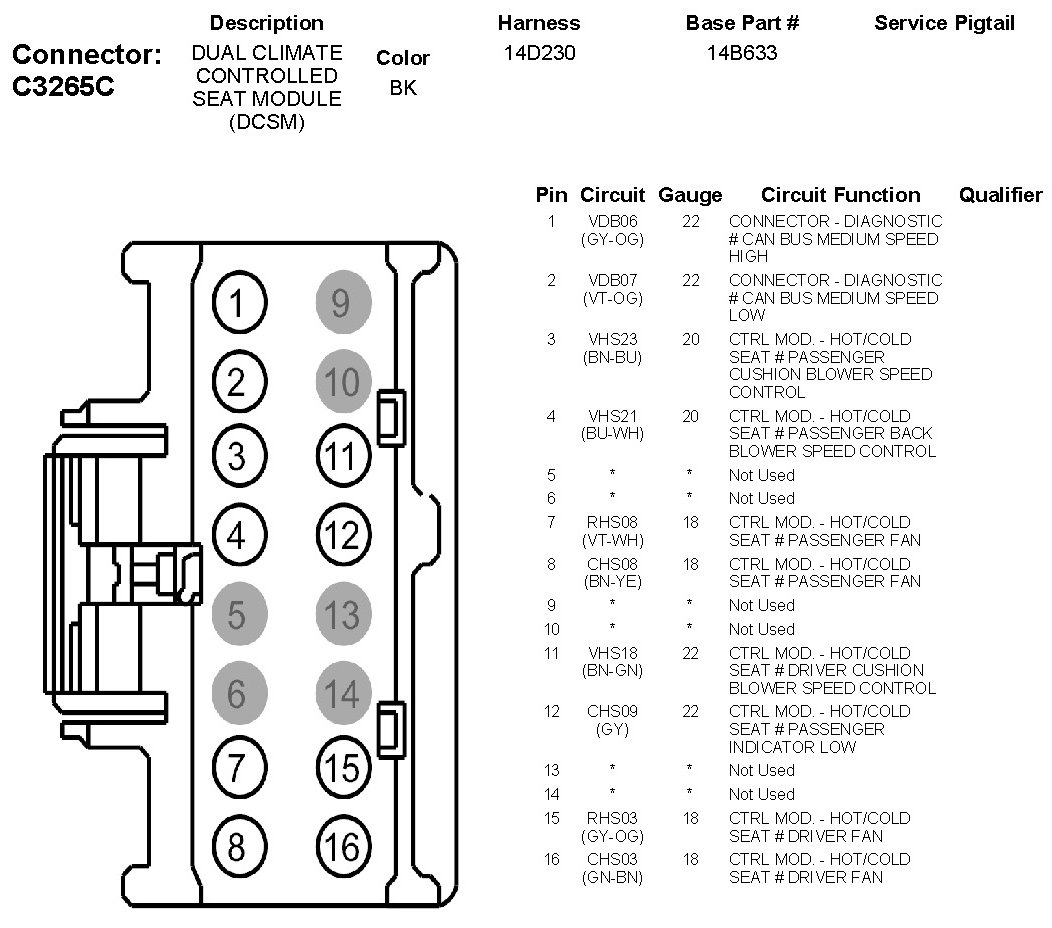

C3265C Dual Climate Controlled Seat Module (DCSM)
