Exhaust Manifold

Install 8 new LH exhaust manifold studs.
Tighten to 25 Nm (18 lb-ft).

Install new gaskets, the LH exhaust manifold and 8 new nuts.

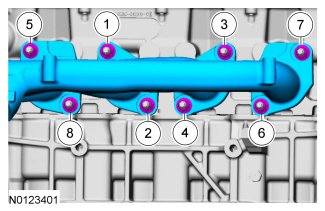

Tighten in the sequence shown in 2 stages.
Stage 1: Tighten to 24 Nm (18 lb-ft).
Stage 2: Tighten to 32 Nm (24 lb-ft).








Install 8 new RH exhaust manifold studs.
Tighten to 25 Nm (18 lb-ft).

Install new gaskets, the RH exhaust manifold and 8 new nuts.
Tighten in the sequence shown in 2 stages.
Stage 1: Tighten to 24 Nm (18 lb-ft).
Stage 2: Tighten to 32 Nm (24 lb-ft).
