Pinpoint Test M: DTCs B0091:11, B0091:93, B0097:11 and B0097:93

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

Pinpoint Tests

Pinpoint Test M: DTCs B0091:11, B0091:93, B0097:11 and B0097:93

Refer to Wiring Diagram Set 46, Supplemental Restraint System for schematic and connector information. Diagrams By Number

Normal Operation

The Restraints Control Module (RCM) monitors the driver front door impact sensor and passenger second row side impact sensor (SuperCab and SuperCrew vehicles only) circuits for the following faults:

- Open circuit
- Short to voltage
- Short to ground
- Faulted driver front door side impact sensor
- Faulted passenger second row side impact sensor (SuperCab and SuperCrew vehicles only)

If a fault is detected, the RCM stores DTC B0091:11, B0091:93, B0097:11 or B0097:93 in memory and sends a message to the Instrument Panel Cluster (IPC) to illuminate the air bag warning indicator.

The RCM communicates with each impact sensor, if the RCM is unable to communicate with the sensor, a DTC is stored in memory. A Continuous Memory Diagnostic Trouble Code (CMDTC) no operation (failure type :93) can be set by a short to voltage on the return circuit of the impact sensor.

NOTE: A short to ground on either impact sensor feed circuit sets DTCs B0091:11 and B0097:11 on SuperCab and SuperCrew vehicles.

A short to voltage on either impact sensor feed or return circuit sets DTCs B0091:93 and B0097:93 on SuperCab and SuperCrew vehicles.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Driver front door side impact sensor
- Passenger second row side impact sensor
- RCM

PINPOINT TEST M: DTCs B0091:11, B0091:93, B0097:11 AND B0097:93

WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy(R) and cause serious personal injury or death.

NOTICE: Use the correct probe adapter(s) from the Flex Probe Kit when taking measurements. Failure to use the correct probe adapter(s) may damage the connector.

NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test. Inspection and Verification

NOTE: Only disconnect or reconnect Supplemental Restraint System (SRS) components when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS.

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

NOTE: Always make sure the correct SRS component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the Ford Catalog Advantage(TM) or equivalent to make sure the correct component is being installed. If an incorrect SRS component is installed, DTCs may set.

NOTE: Do not probe any impact sensor. The impact sensor cannot be tested using a multi-meter.

-------------------------------------------------
M1 RETRIEVE RCM DTCs

- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Were any DTCs retrieved on-demand during self-test?

Yes
Fault(s) cannot be cleared until corrected and the DTC(s) are no longer retrieved on-demand during self-test.

SuperCab and SuperCrew Vehicles

For DTC B0091:11 AND B0097:11, GO to M2.

For DTC B0091:93 AND B0097:93, GO to M6.

For DTC B0091:93 ONLY, GO to M8.

For DTC B0097:93 ONLY, GO to M11.

Regular Cab Vehicles

For DTC B0091:11, GO to M2.

For DTC B0091:93, GO to M8.

No
The fault is intermittent when present as a CMDTC only. GO to M15.

-------------------------------------------------
M2 CHECK THE LEFT SIDE RESTRAINTS SENSOR 1 DTC FOR A FAULT STATUS CHANGE (SHORT TO GROUND INDICATED)

NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the fault reported changes, this indicates the RCM is functioning correctly and is not the source of the fault.

- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Disconnect: Driver Front Door Side Impact Sensor C567.
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- DIAGNOSTIC TIP: When viewing DTCs with the driver front door side impact sensor disconnected, an open circuit (no operation) fault is normally retrieved.
- For SuperCab and SuperCrew vehicles, did the on-demand DTCs change from B0091:11 and B0097:11 to B0091:93?

For regular cab vehicles, did the on-demand DTC change from B0091:11 to B0091:93?

Yes
INSTALL a new driver front door side impact sensor. REFER to Side Impact Sensor - Front Door Side Impact Sensor - Front Door. GO to M16.

No
For SuperCab and SuperCrew vehicles, GO to M3.

For regular cab vehicles, GO to M4.

-------------------------------------------------
M3 CHECK THE RIGHT SIDE RESTRAINTS SENSOR 2 DTC FOR A FAULT STATUS CHANGE (SHORT TO GROUND INDICATED)

NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the fault reported changes, this indicates the RCM is functioning correctly and is not the source of the fault.

- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Connect: Driver Front Door Side Impact Sensor C567.
- Disconnect: Passenger Second Row Side Impact Sensor C3249.
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- DIAGNOSTIC TIP: When viewing DTCs with the passenger second row side impact sensor disconnected, an open circuit (no operation) fault is normally retrieved.
- Did the on-demand DTC change from B0091:11 and B0097:11 to B0097:93?

Yes
INSTALL a new passenger second row side impact sensor. REFER to Side Impact Sensor - Second Row Side Impact Sensor - Second Row. GO to M16.

No
GO to M4.

-------------------------------------------------
M4 CHECK THE DRIVER FRONT DOOR SIDE IMPACT SENSOR FEED CIRCUIT FOR A SHORT TO GROUND AND SHORT BETWEEN SENSOR CIRCUITS

- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Disconnect: Driver Front Door Side Impact Sensor C567 (if not previously disconnected).
- Disconnect: RCM C310A and C310B.
- Measure the resistance between driver front door side impact sensor:
- C567-1, circuit VR217 (GY/YE), harness side and ground.
- C567-1, circuit VR217 (GY/YE), harness side and C567-2, circuit RR131 (VT/GY), harness side.

- Are the resistances greater than 10,000 ohms?

Yes
For SuperCab and SuperCrew vehicles, GO to M5.

For regular cab vehicles, GO to M14.

No
REPAIR circuit VR217 (GY/YE) and/or RR131 (VT/GY).

Refer to Wiring Diagram Set 5 for schematic and connector information. Diagrams By Number

GO to M16.

-------------------------------------------------
M5 CHECK THE PASSENGER SECOND ROW SIDE IMPACT SENSOR FEED CIRCUIT FOR A SHORT TO GROUND AND SHORT BETWEEN SENSOR CIRCUITS

- Measure the resistance between passenger second row side impact sensor:
- C3249-1, circuit VR220 (VT/OG), harness side and ground.
- C3249-1, circuit VR220 (VT/OG), harness side and C3249-2, circuit RR134 (BN/BU), harness side.

- Are the resistances greater than 10,000 ohms?

Yes
GO to M14.

No
REPAIR circuit VR220 (VT/OG) and/or RR134 (BN/BU).

Refer to Wiring Diagram Set 5 for schematic and connector information. Diagrams By Number

GO to M16.

-------------------------------------------------
M6 CHECK THE DRIVER FRONT DOOR SIDE IMPACT SENSOR CIRCUITS FOR A SHORT TO VOLTAGE (NO OPERATION INDICATED)

- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Disconnect: RCM C310A and C310B (if not previously disconnected).
- Disconnect: Driver Front Door Side Impact Sensor C567 (if not previously disconnected).
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Measure the voltage between driver front door side impact sensor:
- C567-1, circuit VR217 (GY/YE), harness side and ground.
- C567-2, circuit RR131 (VT/GY), harness side and ground.

- Is voltage present on either circuit?

Yes
REPAIR circuit VR217 (GY/YE) or RR131 (VT/GY).

Refer to Wiring Diagram Set 5 for schematic and connector information. Diagrams By Number

GO to M16.

No
For SuperCab and SuperCrew vehicles, GO to M7.

For regular cab vehicles, GO to M9.

-------------------------------------------------
M7 CHECK THE PASSENGER SECOND ROW SIDE IMPACT SENSOR CIRCUITS FOR A SHORT TO VOLTAGE (NO OPERATION INDICATED)

- Ignition OFF.
- Disconnect: Passenger Second Row Side Impact Sensor C3249.
- Ignition ON.

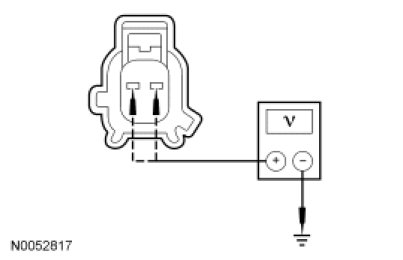

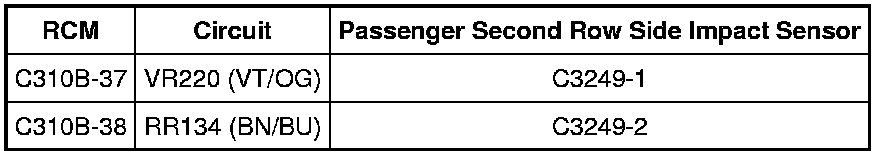

- Measure the voltage between passenger second row side impact sensor:
- C3249-1, circuit VR220 (VT/OG), harness side and ground.
- C3249-2, circuit RR134 (BN/BU), harness side and ground.

- Is voltage present on either circuit?

Yes
REPAIR circuit VR220 (VT/OG) or RR134 (BN/BU).

Refer to Wiring Diagram Set 5 for schematic and connector information. Diagrams By Number

GO to M16.

No
GO to M14.

-------------------------------------------------
M8 CHECK THE DRIVER FRONT DOOR SIDE IMPACT SENSOR AND RCM CONNECTIONS (NO OPERATION INDICATED)

- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Gain access to the driver front door side impact sensor and inspect C567 to be fully seated and locked. Seat and lock the connector as necessary. Refer to Side Impact Sensor - Front Door Side Impact Sensor - Front Door.
- Gain access to the RCM and inspect C310A and C310B to be fully seated and locked. Seat and lock the connector(s) as necessary. Refer to Restraints Control Module (RCM) Service and Repair.
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Was DTC B0091:93 retrieved on-demand during self-test?

Yes
For SuperCab and SuperCrew vehicles, GO to M9.

For regular cab vehicles, GO to M6.

No
Fault corrected. GO to M16.

-------------------------------------------------
M9 CHECK THE DRIVER FRONT DOOR SIDE IMPACT SENSOR CIRCUITS FOR AN OPEN (NO OPERATION INDICATED)

- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Disconnect: RCM C310A and C310B (if not previously disconnected).
- Disconnect: Driver Front Door Side Impact Sensor C567 (if not previously disconnected).
- Measure the resistance between RCM C310B, harness side and driver front door side impact sensor C567, harness side using the following chart.

- Are the resistances less than 0.5 ohm?

Yes
GO to M10.

No
REPAIR circuit VR217 (GY/YE) or RR131 (VT/GY).

Refer to Wiring Diagram Set 5 for schematic and connector information. Diagrams By Number

GO to M16.

-------------------------------------------------
M10 CHECK THE LEFT SIDE RESTRAINTS SENSOR 1 DTC FOR A FAULT STATUS CHANGE (NO OPERATION INDICATED)

NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the fault reported changes, this indicates the RCM is functioning correctly and is not the source of the fault.

- Connect: RCM C310A and C310B.
- Connect a fused jumper wire between driver front door side impact sensor C567-1, circuit VR217 (GY/YE), harness side and C567-2, circuit RR131 (VT/GY), harness side.

- Are the resistances less than 0.5 ohm?

Yes
GO to M13.

No
REPAIR circuit VR220 (VT/OG) or RR134 (BN/BU).

Refer to Wiring Diagram Set 5 for schematic and connector information. Diagrams By Number

GO to M16.

-------------------------------------------------
M13 CHECK THE RIGHT SIDE RESTRAINTS SENSOR 2 DTC FOR A FAULT STATUS CHANGE (NO OPERATION INDICATED)

NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the fault reported changes, this indicates the RCM is functioning correctly and is not the source of the fault.

- Connect: RCM C310A and C310B.
- Connect a fused jumper wire between passenger second row side impact sensor C3249-1, circuit VR220 (VT/OG), harness side and C3249-2, circuit RR134 (BN/BU), harness side.

- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- DIAGNOSTIC TIP: When viewing DTCs with the passenger second row side impact sensor circuits shorted together, a short to ground fault is normally retrieved.
- Did the DTC change from B0097:93 to B0097:11 and B0091:11?

Yes
REMOVE the fused jumper wire and INSTALL a new passenger second row side impact sensor. REFER to Side Impact Sensor - Second Row Side Impact Sensor - Second Row. GO to M16.

No
REMOVE the fused jumper wire and GO to M14.

-------------------------------------------------
M14 CONFIRM THE RCM FAULT

NOTE: Make sure all restraint system components and the RCM electrical connectors are connected before carrying out the self-test. If not, DTCs will be recorded.

- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Prior to reconnecting any previously disconnected SRS component:
- inspect connector(s) (including any in-line connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
- inspect wire harness for any damage, pinched, cut or pierced wires.
- inspect RCM C310A and C310B Connector Position Assurance (CPA) lever/lock for correct operation. Refer to Restraints Control Module (RCM) Service and Repair.
- repair any concerns found.
Refer to Wiring Diagram Set 5, Connector Repair Procedures for schematic and connector information. Diagrams By Number

- Connect: RCM C310A and C310B.
- Connect: Driver Front Door Side Impact Sensor C567 (if previously disconnected).
- Connect: Passenger Second Row Side Impact Sensor C3249 (if previously disconnected).
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Was the original DTC retrieved on-demand during self-test?

Yes
INSTALL a new RCM. REFER to Restraints Control Module (RCM) Service and Repair. GO to M16.

No
In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. GO to M15.

-------------------------------------------------
M15 CHECK FOR AN INTERMITTENT FAULT

- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Disconnect: Affected Impact Sensor Driver Front Door Side Impact Sensor C567 and/or Passenger Second Row Side Impact Sensor C3249 (if equipped).
- Disconnect: RCM C310A and C310B.
- Inspect for the following:
- inspect harness and component connectors for loose or spread terminals and loose or frayed wire connections at terminals.
- inspect wire harness for any damage, pinched, cut or pierced wires.
- inspect RCM C310A and C310B CPA lever/lock for correct operation. Refer to Restraints Control Module (RCM) Service and Repair.
- repair any concerns found.
Refer to Wiring Diagram Set 5, Connector Repair Procedures for schematic and connector information. Diagrams By Number

- Connect: All Previously Disconnected Component(s)/Connector(s).
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Was DTC B0091:11, B0091:93, B0097:11 or B0097:93 retrieved on-demand during self-test?

Yes
Fault(s) cannot be cleared until corrected and the DTC(s) are no longer retrieved on-demand during self-test.

SuperCab and SuperCrew Vehicles

For DTC B0091:11 AND B0097:11, GO to M2.

For DTC B0091:93 AND B0097:93, GO to M6.

For DTC B0091:93 ONLY, GO to M8.

For DTC B0097:93 ONLY, GO to M11.

Regular Cab Vehicles

For DTC B0091:11, GO to M2.

For DTC B0091:93, GO to M8.

No
The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. GO to M16.

-------------------------------------------------
M16 CHECK FOR ADDITIONAL SRS DTCs

- Ignition OFF.
- If not previously directed to do so, depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Reconnect all SRS components (if previously disconnected).
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - Restraints.

- NOTE: When selecting Restraints from the Self Test menu, DTCs are retrieved from the RCM and OCSM.

- Are any RCM and/or OCSM DTCs retrieved on-demand during self-test?

Yes
Do not clear any DTCs until all DTCs have been resolved. GO to the DTC Charts for pinpoint test direction. Diagnostic Trouble Code Tests and Associated Procedures

No
CLEAR all RCM and OCSM CMDTCs. PROVE OUT the SRS. The repair is complete. RETURN the vehicle to the customer.

-------------------------------------------------
