Trailer Hitch: Service and Repair

Trailer Hitch

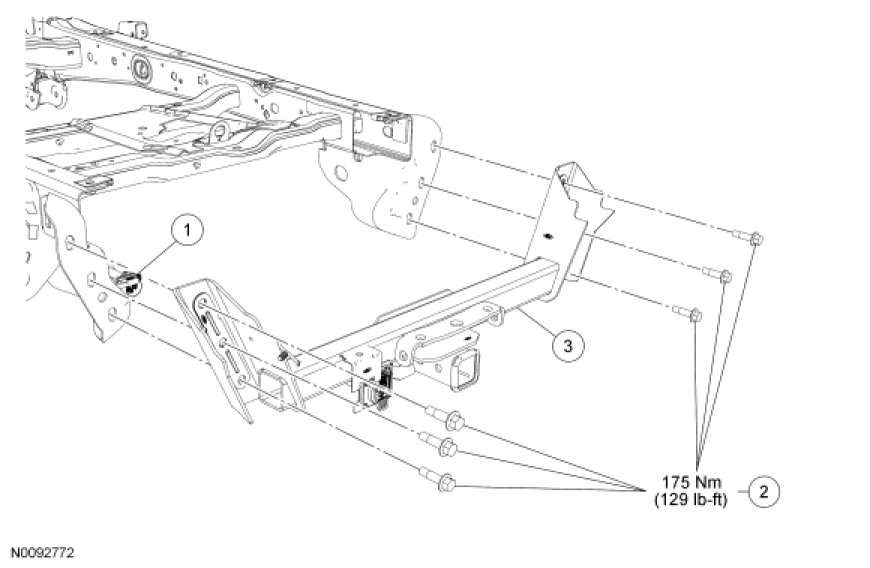

Removal and Installation









1. Remove the rear bumper. For additional information, refer to Bumpers Service and Repair.

2. Disconnect the trailer light/brake electrical connector.

3. Remove the trailer hitch bolts and remove the trailer hitch.
- To install, tighten to 175 Nm (129 lb-ft).

4. To install, reverse the removal procedure.
