F 150 4WD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Camshaft Position Sensor
>>

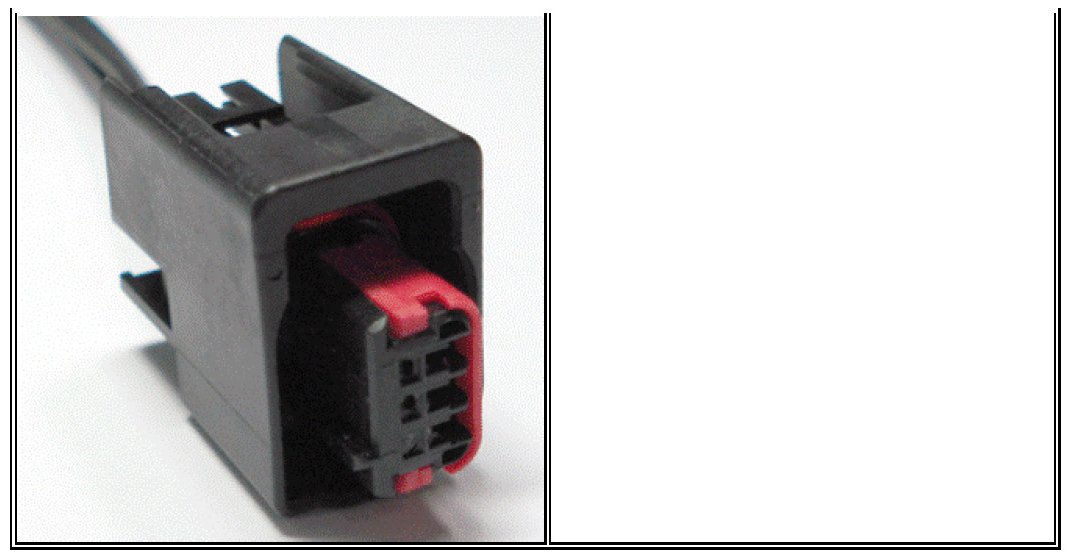

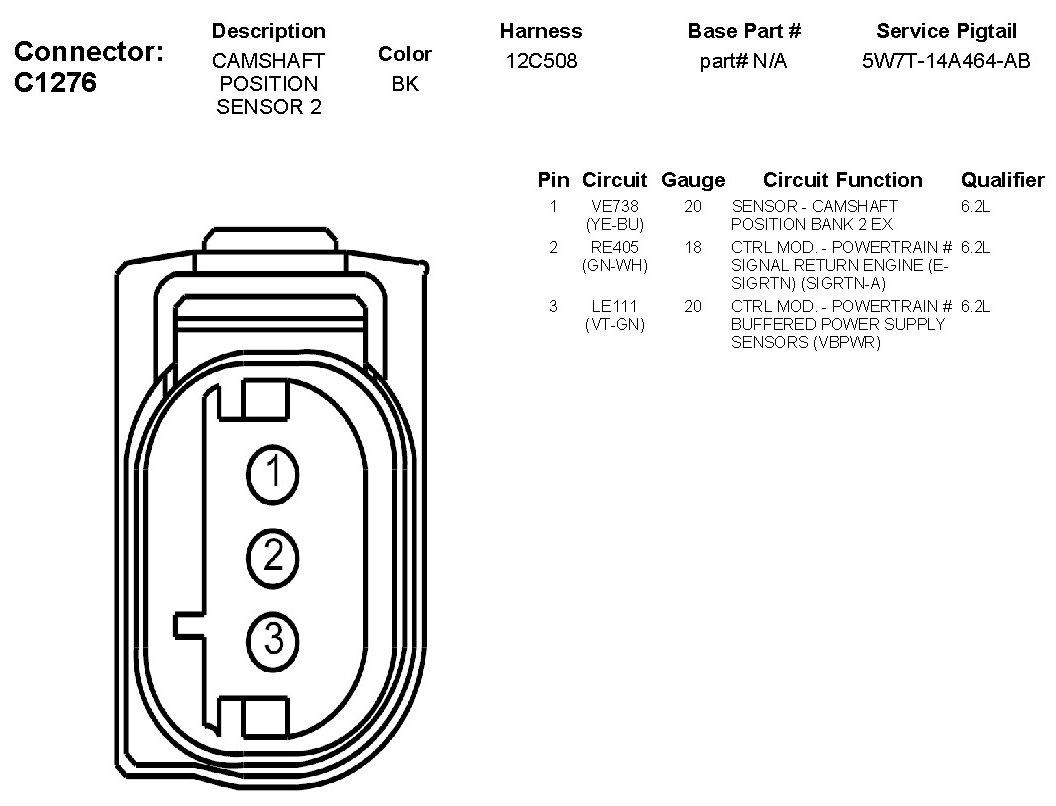

C1276 Camshaft Position Sensor 2
C1276 Camshaft Position Sensor 2
