Home >> Ford >> 2011 >> F 150 4WD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> C3162A Heated Seat Module, Left Rear

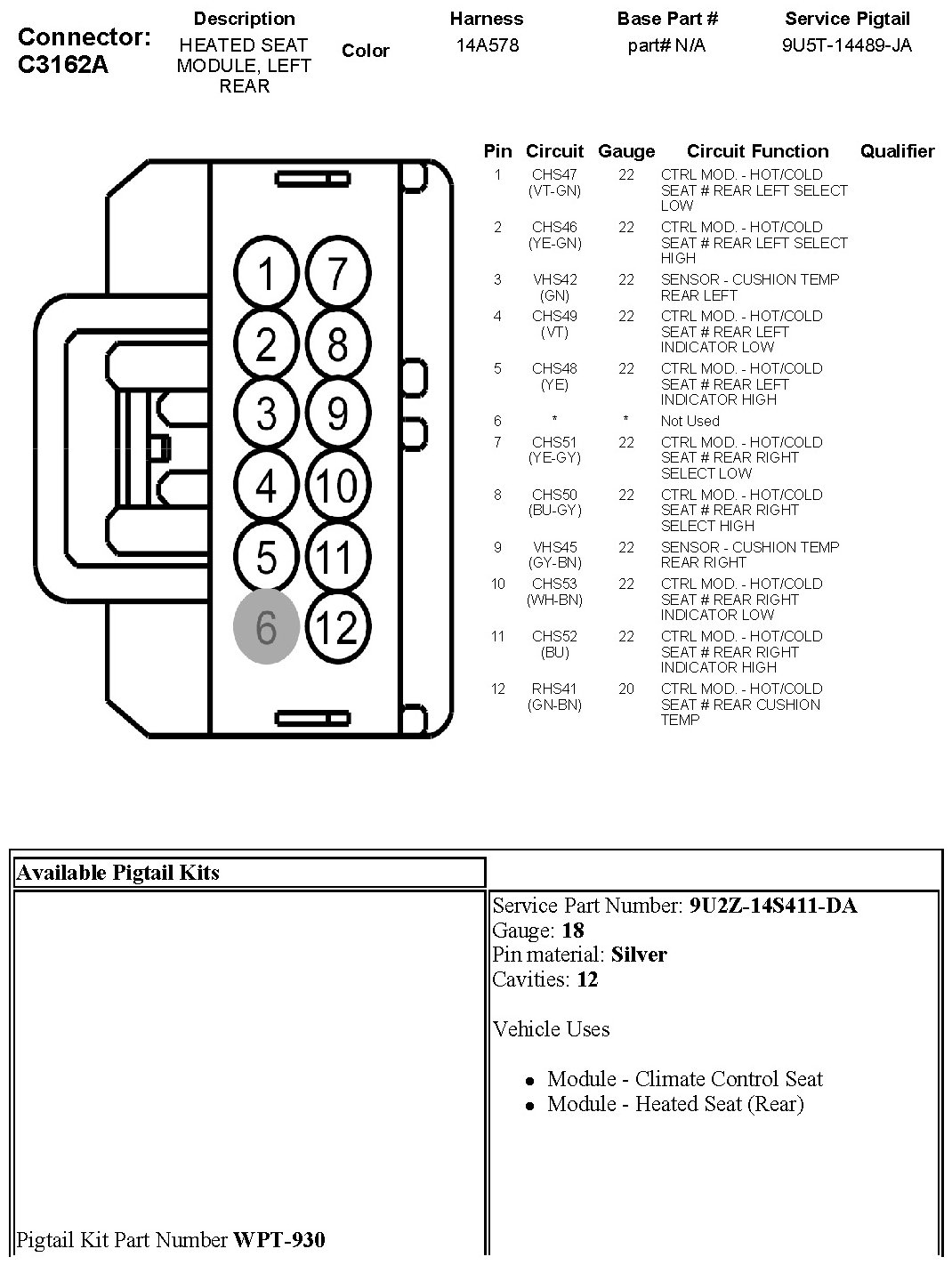

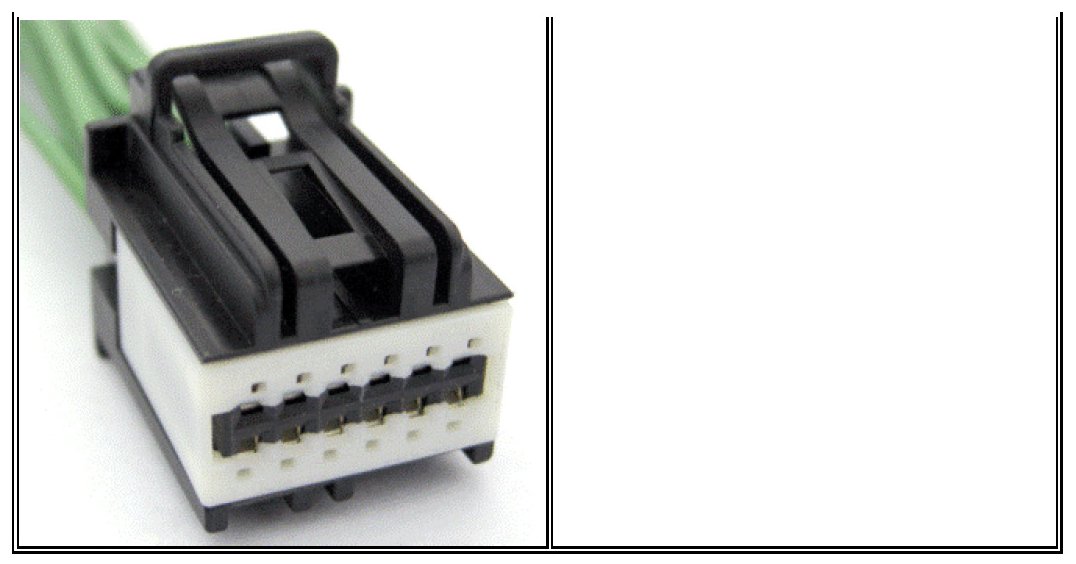

C3162A Heated Seat Module, Left Rear
