Crankshaft Position Sensor: Service and Repair

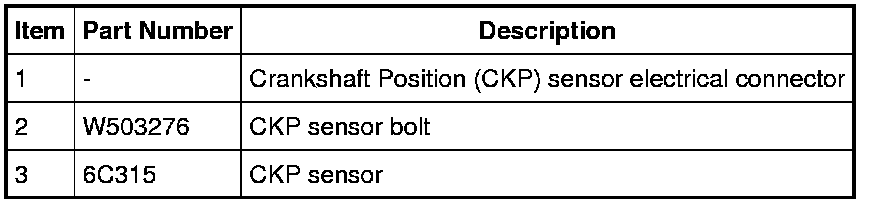

Engine Control Components - Exploded View, 6.2L (2V)









Crankshaft Position (CKP) Sensor

NOTICE: The Crankshaft Position (CKP) sensor must be positioned into the fitting on the crankshaft rear seal retainer plate and be flush against the boss on the engine block before the bolt is installed. If the CKP sensor is installed incorrectly, the CKP sensor can be damaged.

NOTE: The intake manifold must be removed to perform this procedure. For additional information, refer to Engine - 6.2L (2V) Service and Repair.

NOTE: After installing the CKP sensor, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.









Removal and Installation

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
