Home >> Ford >> 2011 >> F 150 4WD V8-6.2L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Diagrams >> C330 Seat Control Switch, Passenger Side Front

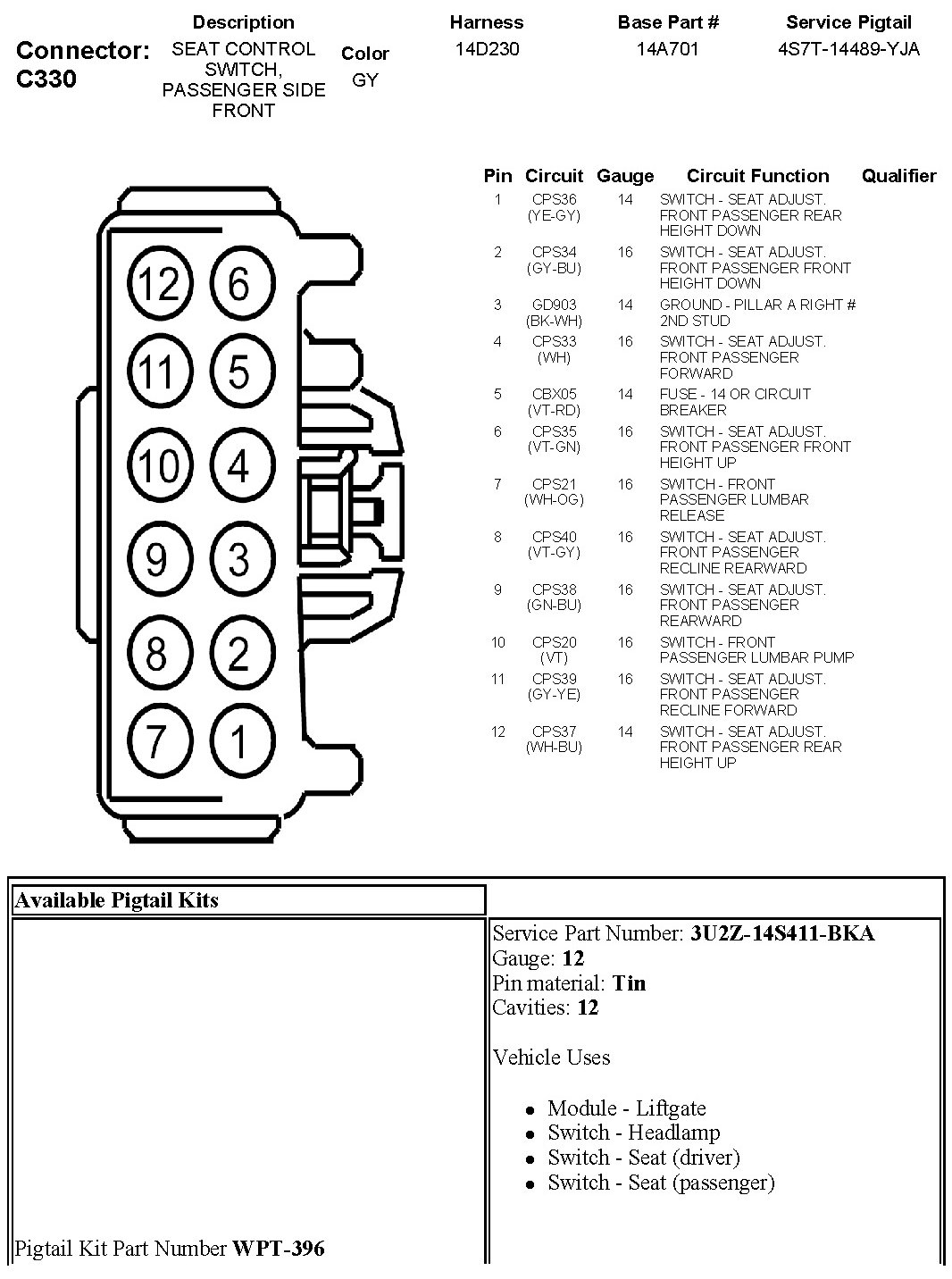

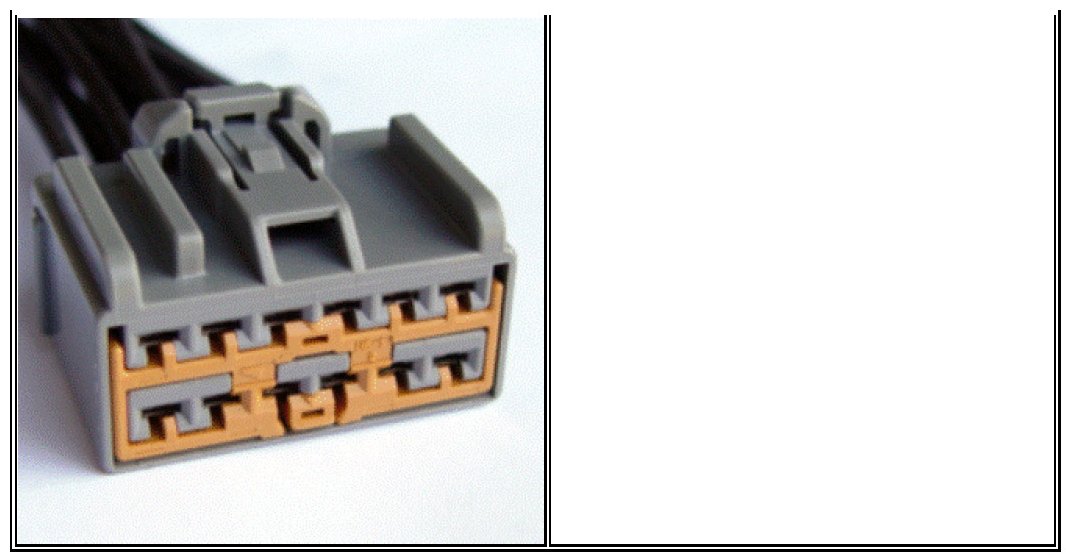

C330 Seat Control Switch, Passenger Side Front
