Home >> Ford >> 2011 >> F 150 4WD V8-6.2L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Suspension System - General Information

Suspension System - General Information

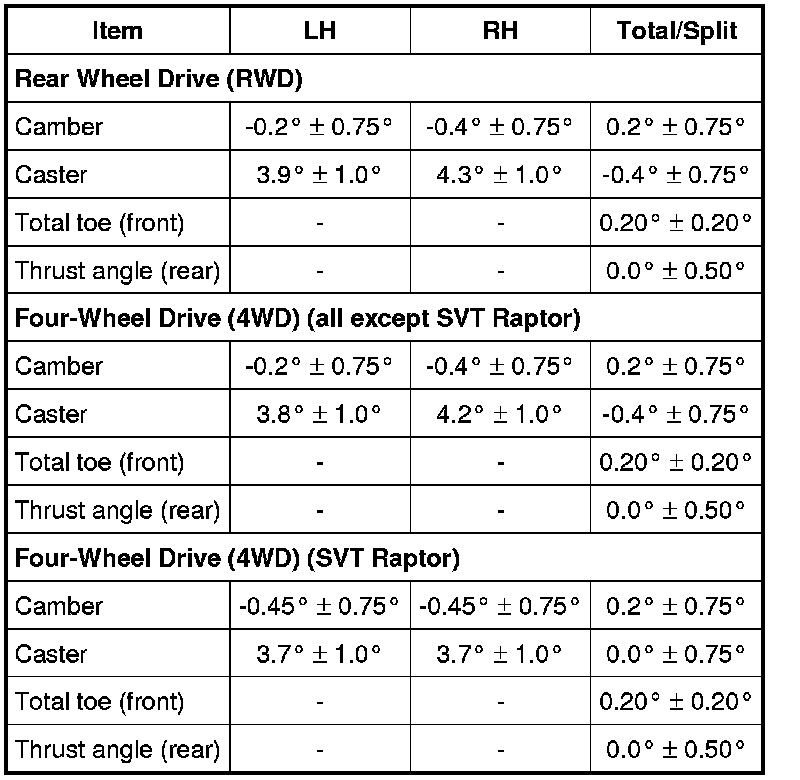

Alignment Specifications

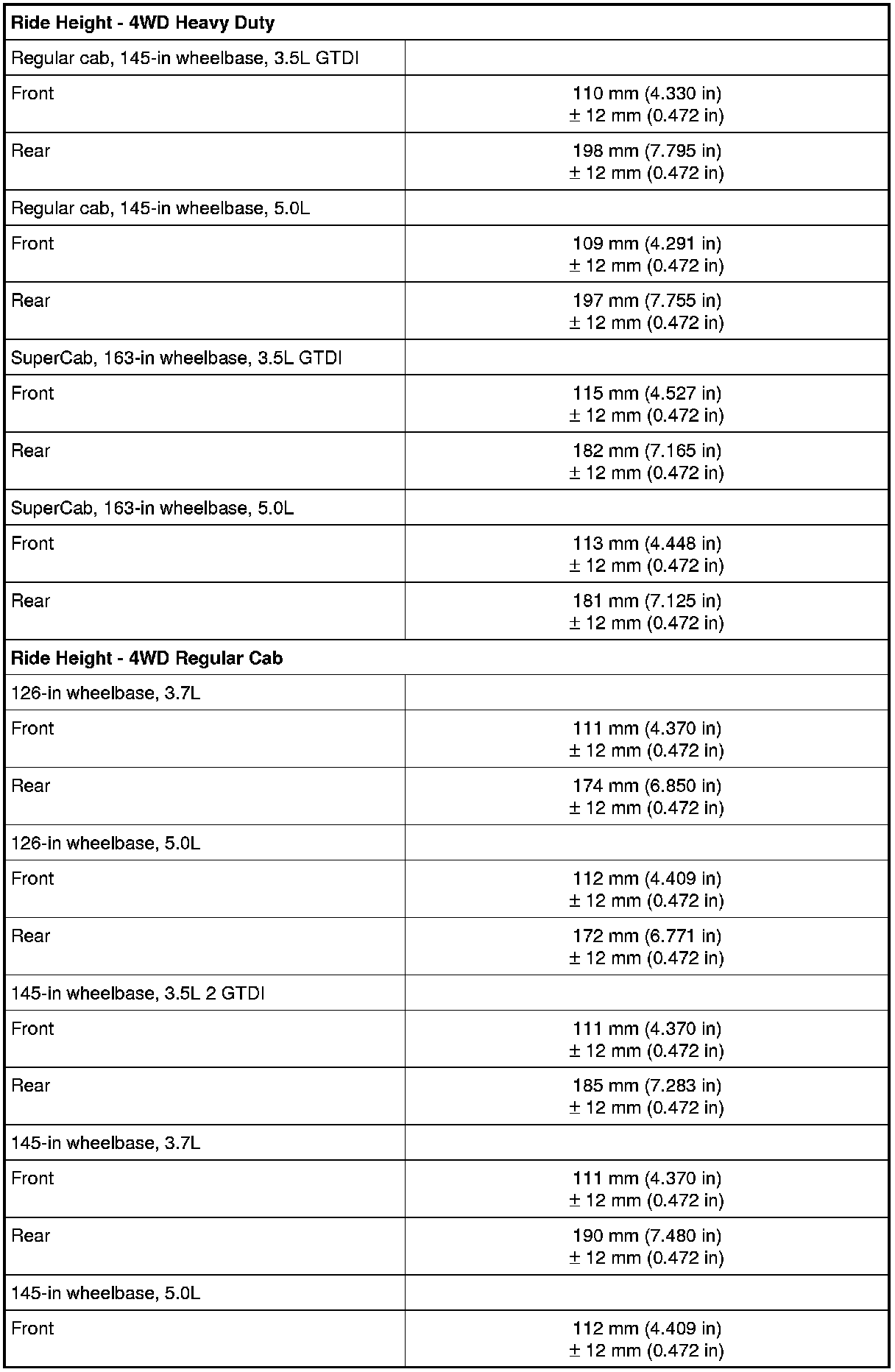

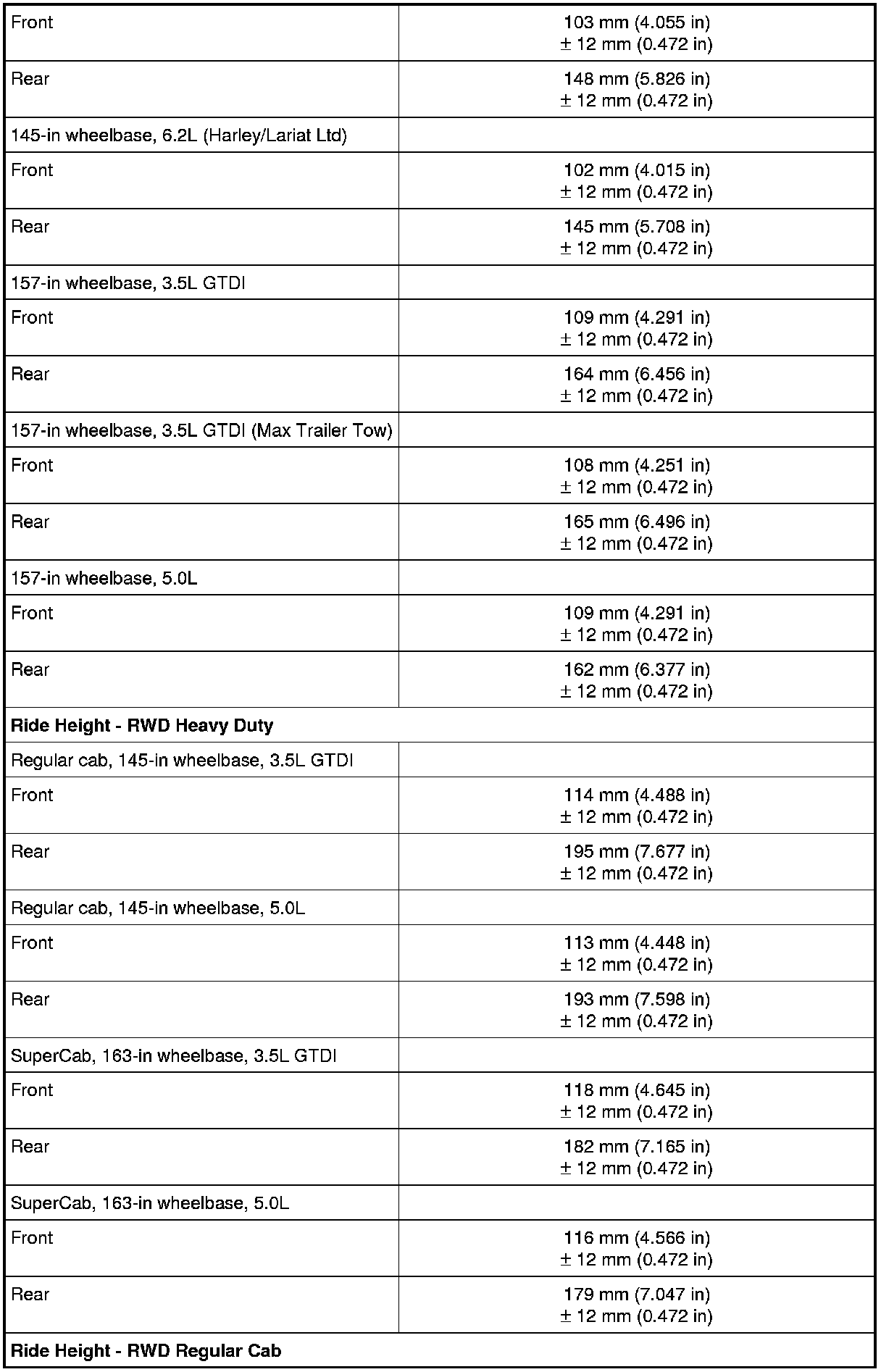

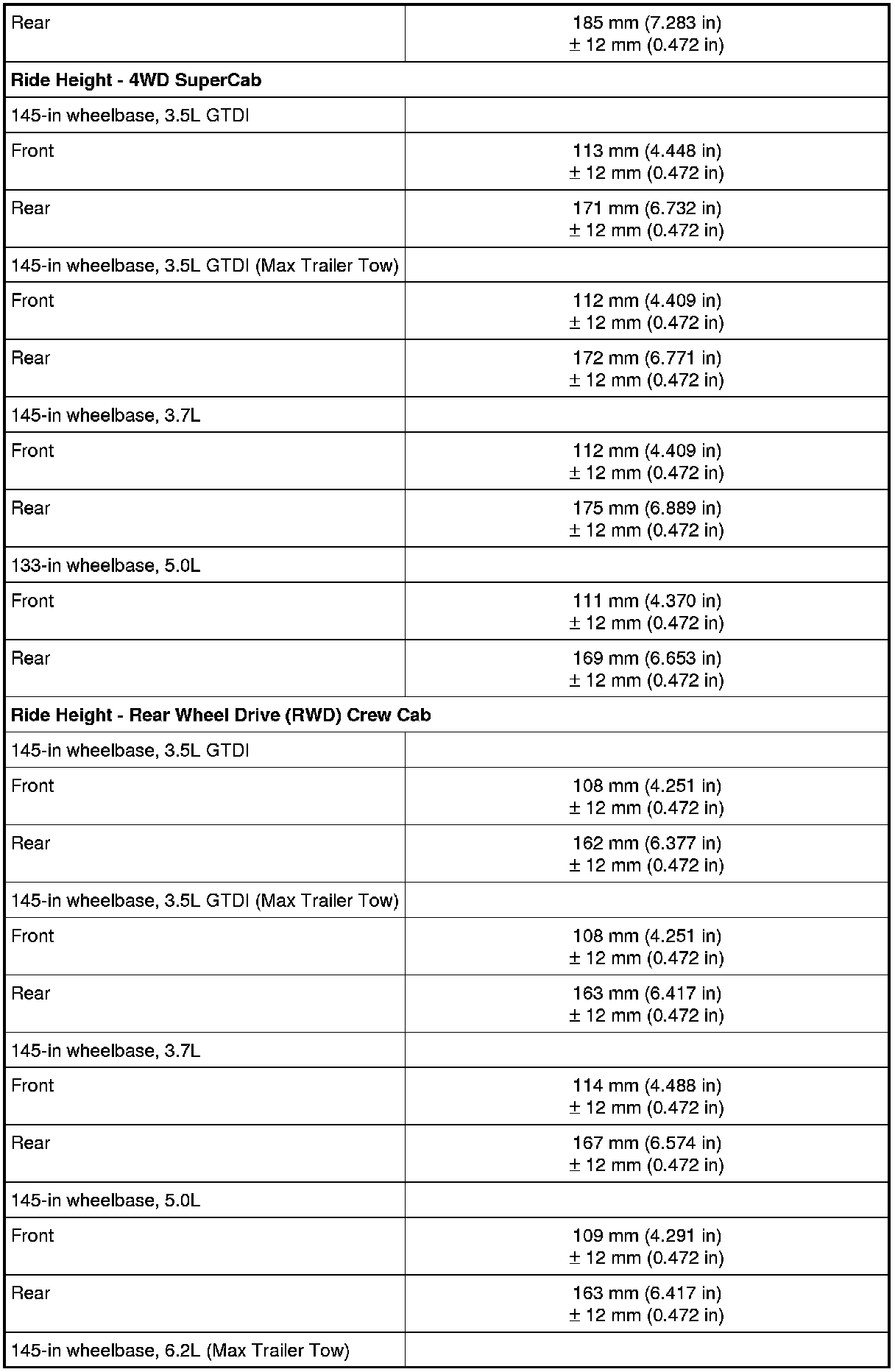

Ball Joint Deflection / Ride Height

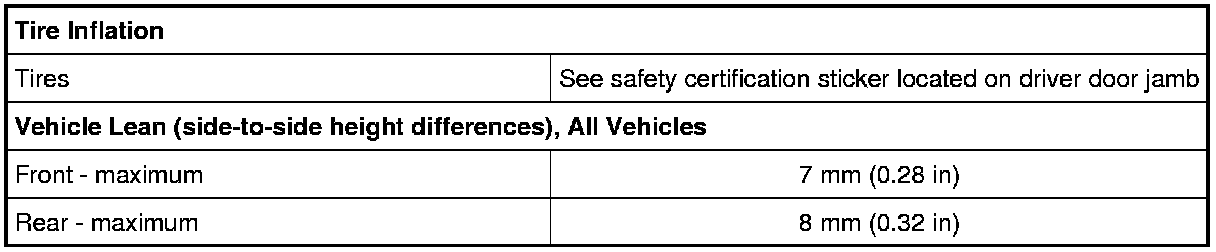

Tire Inflation / Vehicle Lean

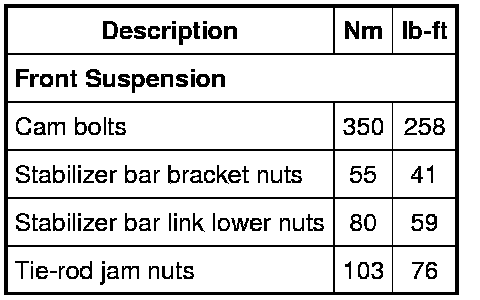

Torque Specifications
