Automatic Transmission/Transaxle: Adjustments

Selector Lever Cable Adjustment

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Place the selector lever in the DRIVE position.

3. Disconnect the selector lever cable from the manual control lever.

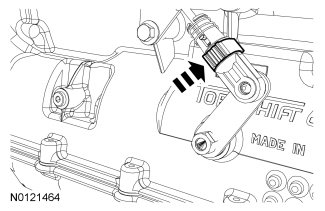

4. Release the selector lever cable adjuster lock.

1. Carefully pry outward the adjuster lock tabs.

2. While holding the adjuster lock tabs outward, slide the lock to unlock the selector lever cable.





5. Place the manual control lever in the DRIVE position.
- Move the manual control lever all the way forward into the LOW position.

- Move the manual control lever 3 detents rearward into the DRIVE position.





6. Connect the selector lever cable to the manual control lever.





7. Slide the adjuster tab in place to lock the selector lever cable.





8. Carefully move the selector lever from detent to detent and compare with the PRNDL. Verify that the vehicle will start in PARK and NEUTRAL, and the backup lamps illuminate in REVERSE.
