Home
>>
Ford
>>
2011
>>
F 250 2WD Super Duty V8-6.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Coolant Temperature Sensor/Switch (For Computer)
>>

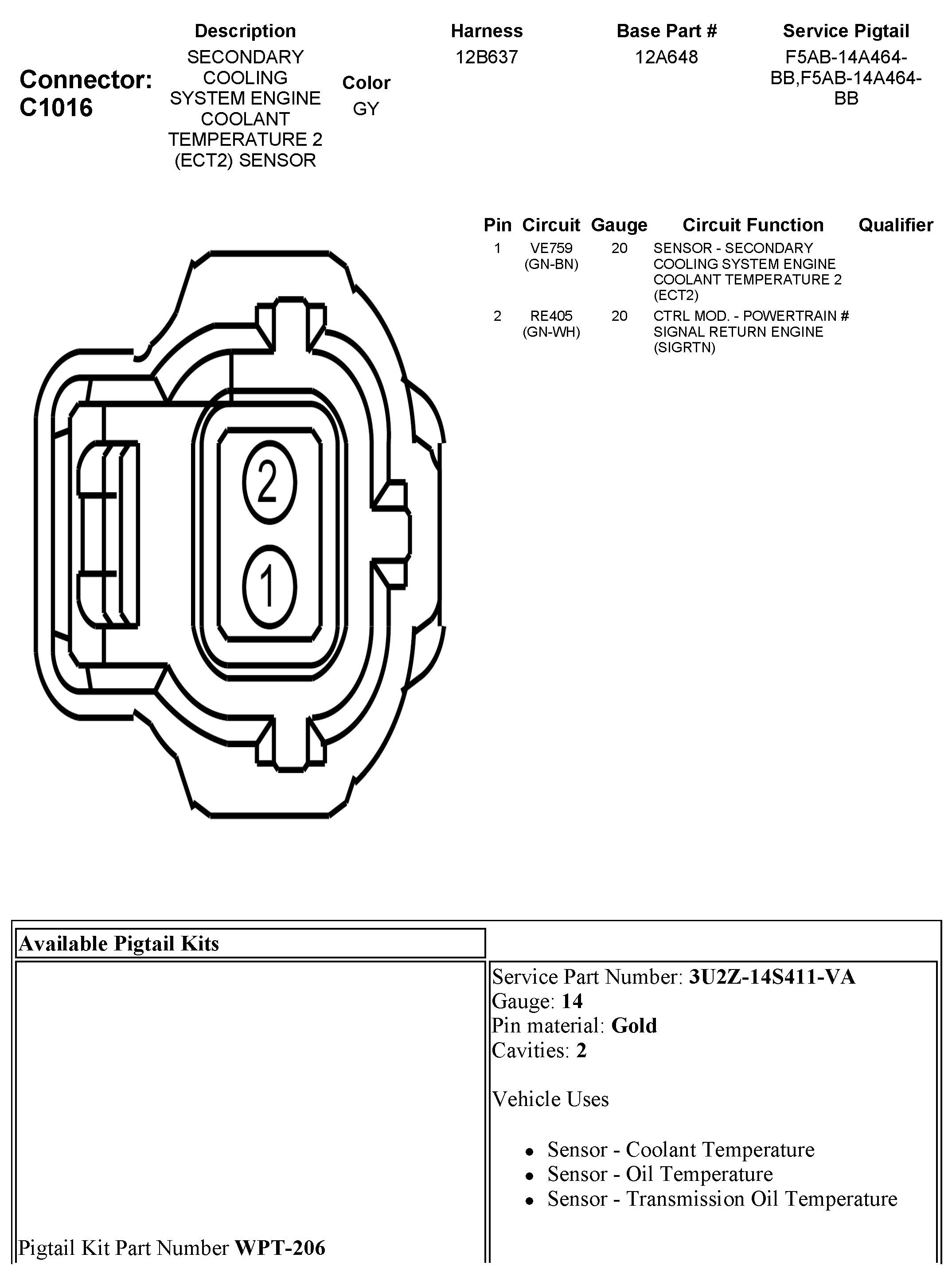

C1016 Secondary Cooling System Engine Coolant Temperature 2 (ECT2) Sensor
C1016 Secondary Cooling System Engine Coolant Temperature 2 (ECT2) Sensor
